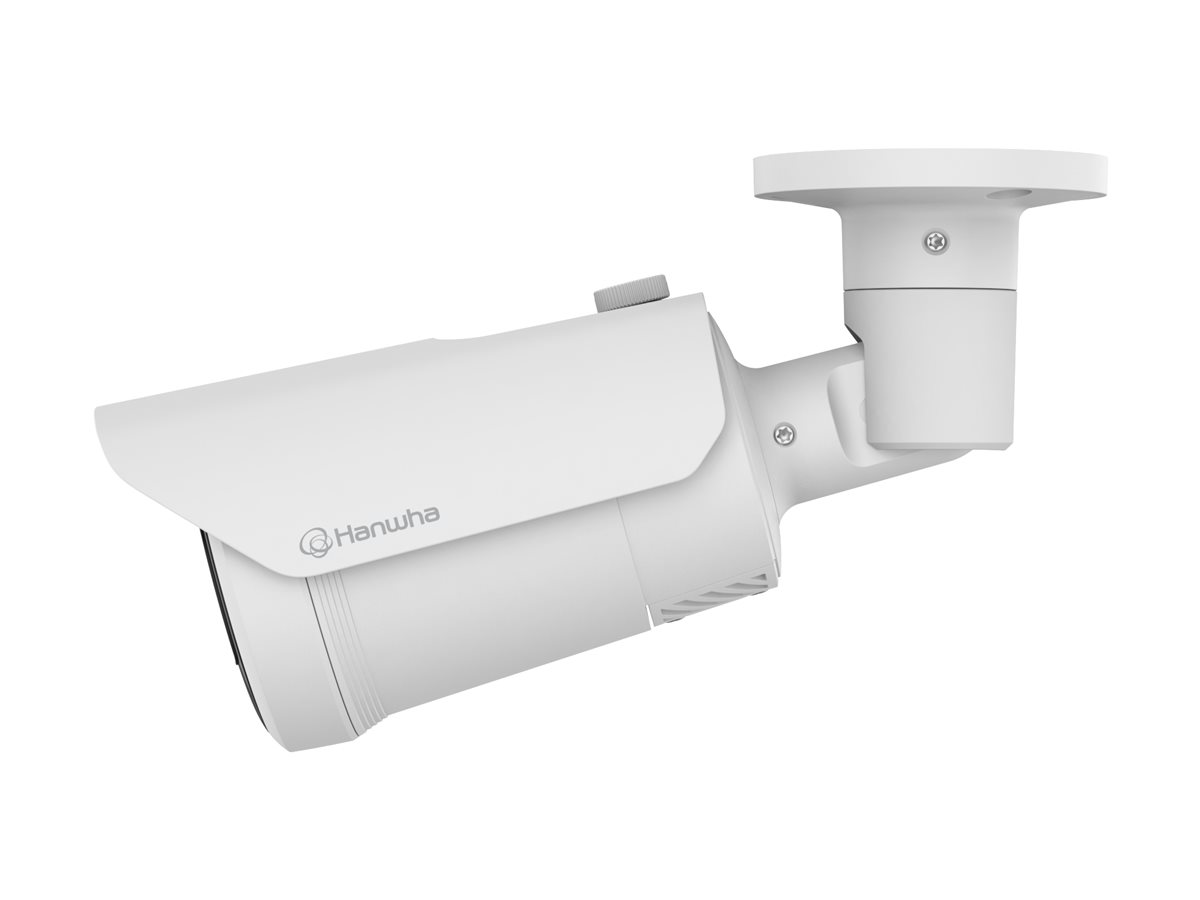

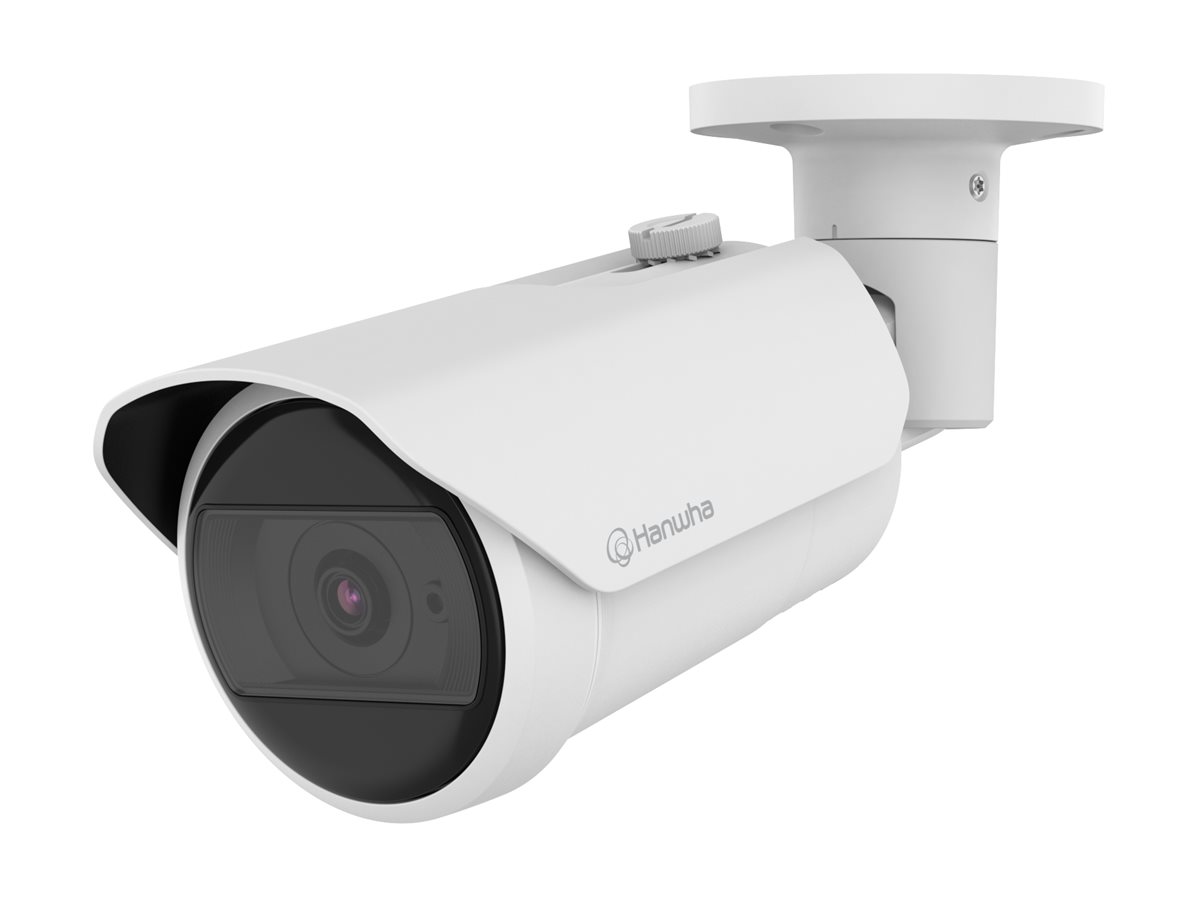

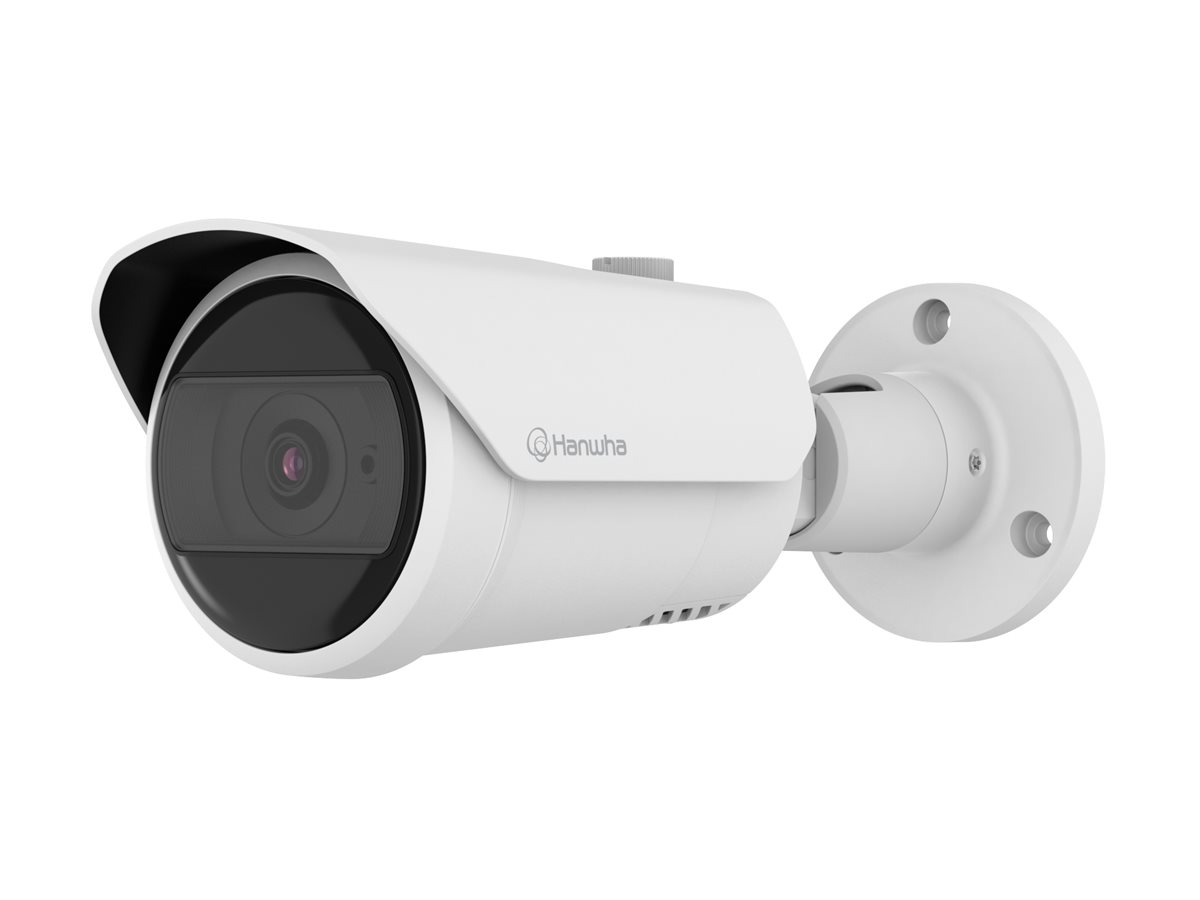

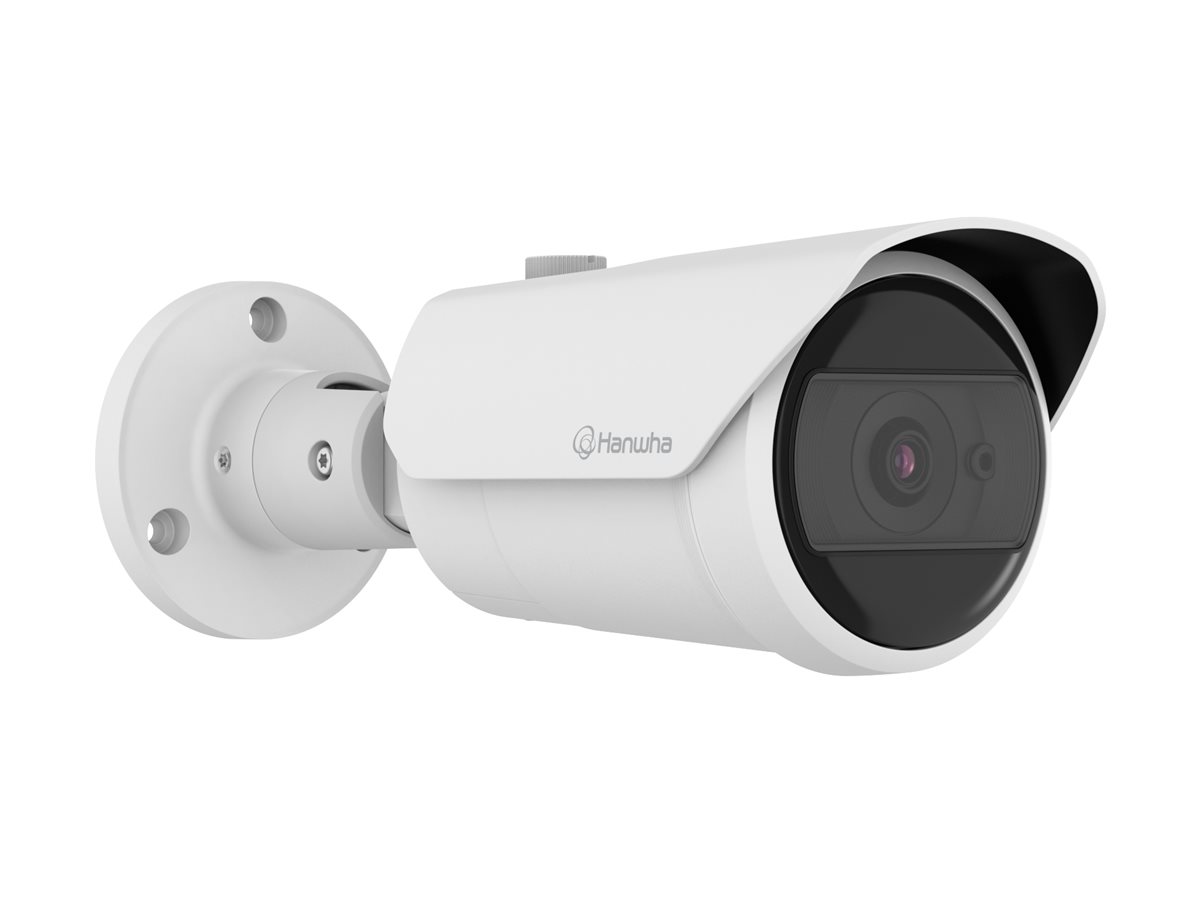

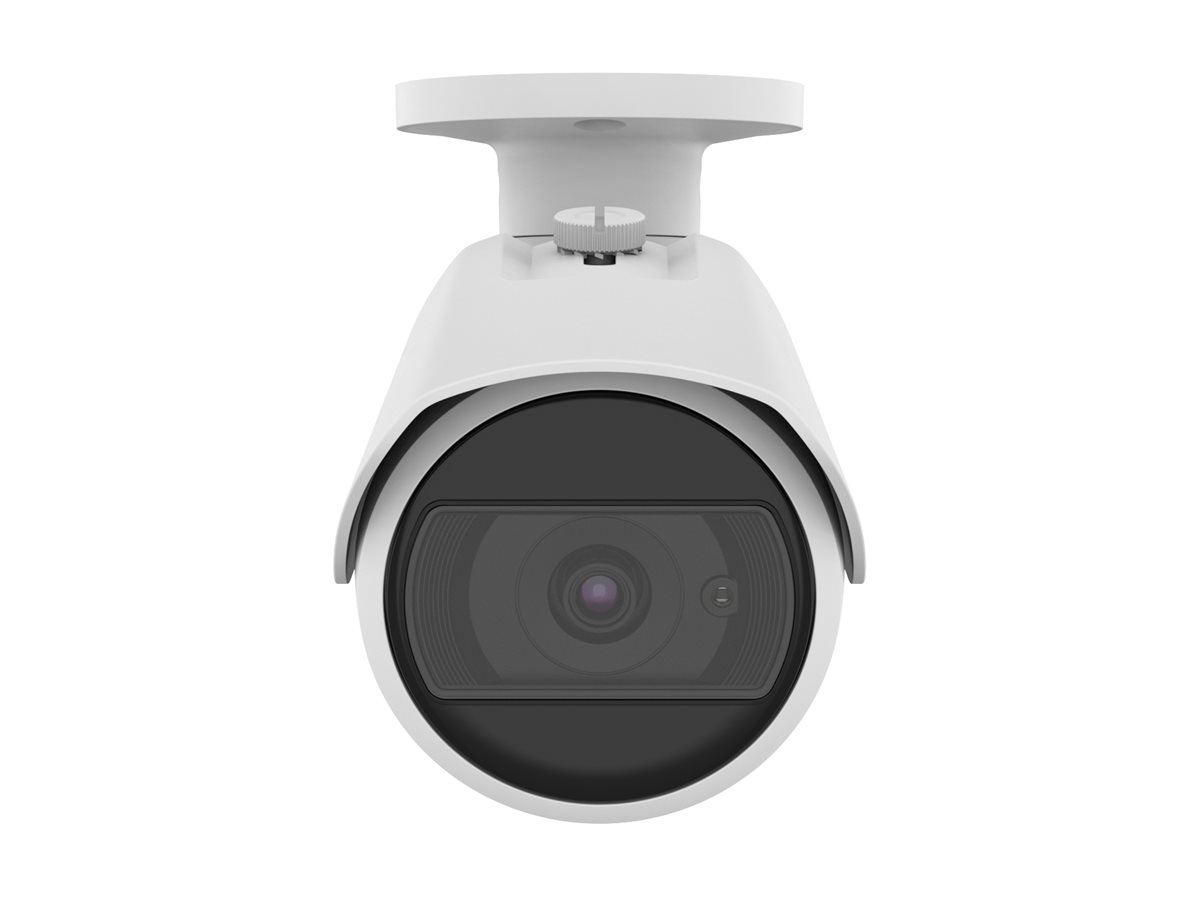

Hanwha Vision WiseNet Q QNO-C8013R
MSRP$720.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet Q QNO-C8013R
- Network surveillance camera
- bullet
- outdoor
- color (Day&Night)
- 5 MP
- 2592 x 1944
- fixed iris
- fixed focal
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $720.00 |
| Mfr Part #: | QNO-C8013R |
| SHI Part #: | 49682770 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QNO-C8013R - Network surveillance camera - bullet - outdoor - color (Day&Night) - 5 MP - 2592 x 1944 - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $720.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.58 cm |
| Dimensions & Weight / Height | 9.34 cm |
| Dimensions & Weight / Weight | 890 g |
| Dimensions & Weight / Width | 9.34 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/25000 sec |
| Features | WiseStream III support, WiseNR II, 360° rotation, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, dynamic privacy masking, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), electronic shutter, digital PTZ function, image flip, image mirror, Hallway View, Object Detection, Person Detection, Vehicle Detection, Best Shot Selector (BSS), Defocus Detection, Tampering detection, people counting, vehicle counting, queue management, Heat Map, alarm notifications, Smart Codec, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, loitering detection, entrance / exit detection, Line Crossing Detection, hard-coated dome, color identification, clothes color detection, vehicle color recognition, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, aluminum housing |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 25 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC, G.711 |
| Connectivity Technology | Wired |
| Depth | 24.58 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.34 cm |
| Weight | 890 g |
| Width | 9.34 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT |
| Lens Construction | |
| Diagonal Field of View (degree) | 129 |
| Focal Length | 3 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 100 |
| Lens Iris | F/1.6 fixed iris |
| Min Focus Distance | 0.5 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 73 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, IEEE 802.3af, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI 32 Class A, RCM, AS/NZ CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, EN 62676-4 |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 8.1 Watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 100 |
