Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

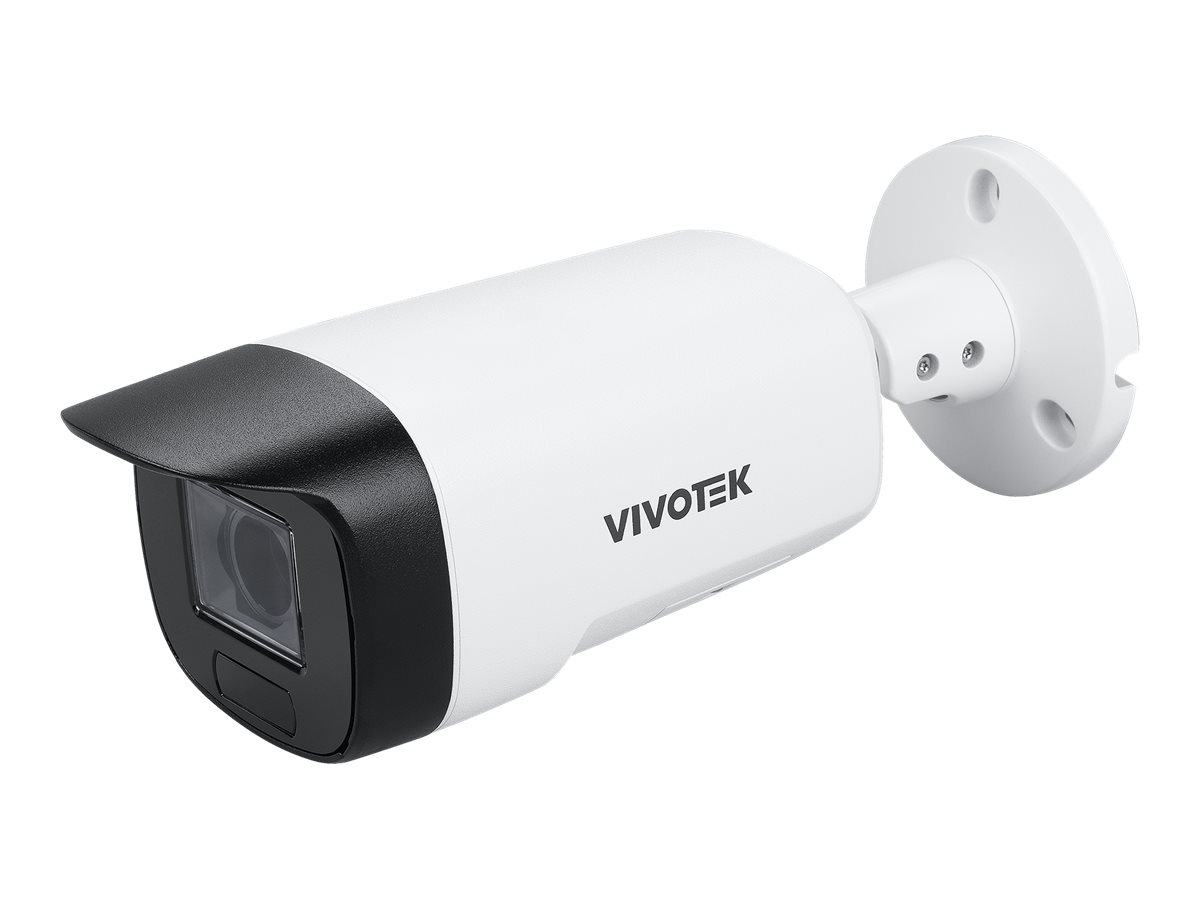

Vivotek V Series IB9389-EHTV-V3

MSRP$800.00
$609.00
Vivotek V Series IB9389-EHTV-V3
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • bullet
  • outdoor
  • vandal / weatherproof
  • color (Day&Night)
Vivotek V Series IB9389-EHTV-V3
  • Network surveillance camera
  • bullet
  • outdoor
  • vandal / weatherproof
  • color (Day&Night)
  • 5 MP
  • 2560 x 1920
  • motorized
  • audio
  • LAN 10/100
  • MJPEG, H.264, H.265
  • PoE Class 3
  Additional Details
Price: $609.00
MSRP: $800.00
Mfr Part #: IB9389-EHTV-V3
SHI Part #: 49711778
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: Vivotek
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionVivotek V Series IB9389-EHTV-V3 - Network surveillance camera - bullet - outdoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
ManufacturerVivotek
MSRP$800.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth9.2 cm
Dimensions & Weight / Height25.85 cm
Dimensions & Weight / Weight1.04 kg
Dimensions & Weight / Width9.2 cm
Header / BrandVivotek
Miscellaneous / Product ColorWhite
Packaged Quantity1
Service & Support / Type3-year warranty
System Requirements / OS Required
  • Apple macOS 10.12
  • Microsoft Windows 7 / 8 / 10
Camera
Digital Video Capture Resolution2560 x 1920, 2048 x 1536, 1920 x 1440, 1920 x 1080, 1600 x 1200, 1600 x 904, 1360 x 768, 1280 x 960, 1280 x 720, 800 x 600, 640 x 480, 640 x 360
Digital Video FormatMJPEG, H.264, H.265
Digital Zoom48
Exposure Range1/5 sec - 1/32000 sec
FeaturesWide Dynamic Range (WDR) Pro, Removable IR-Cut Filter, Smart IR, 350° rotation, ePTZ, NAS-Ready, Pixel Calculator, 55 dB signal-to-noise ratio, Smart Stream III, embedded SOC processor, Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image flip, image mirror, infrared cut filter, Privacy Mask Function, Seamless Recording, Highlight Compensation (HLC), Electronic Image Stabilizer (EIS), tamper-detection, Event Notification, password protection, triple video stream, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Smart Motion Detection, ONVIF (Profile T) support, ONVIF (Profile M) support, 802.1x authentication
Flash Memory8 GB
Frame Rate (max)60 frames per second
Infrared Distance40 m
Infrared LEDs4
Max Digital Video Resolution2560 x 1920
Minimum Illumination
  • 0.04 lux - color - F1.6
  • 0.005 lux - B&W - F1.6
  • 0 lux - IR - infrared LEDs on
Motion DetectionYes
RAM2 GB
TypeColor - Day&Night - fixed - outdoor - vandal / weatherproof
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-30 °C
Relative Humidity (operating)98% RH (non-condensing)
Expansion / Connectivity
Encryption AlgorithmTLS 1.2, TLS 1.3
Ports
  • LAN/power - RJ-45
  • Audio line-in/microphone
  • Audio line out
  • Digital input
  • Digital output
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.711, G.726, MPEG2 AAC-LC
Audio SupportYes: built-in microphone, two-way audio capability
Connectivity TechnologyWired
Depth9.2 cm
Device TypeNetwork surveillance camera
Form FactorBullet
Height25.85 cm
Weight1.04 kg
Width9.2 cm
Image Sensor
Type5 MP Progressive Scan CMOS 1/2.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, UDP, UPnP, TLS
Lens Construction
Diagonal Field of View (degree)35.9 - 129.6
Focal Length2.8 mm - 12 mm
Focus AdjustmentRemote, motorized
Horizontal Field of View (degree)28.7 - 95.4
Lens IrisF/1.6-5.3 (P-Iris)
Optical Zoom4.3 x
TypeMotorized zoom
Vertical Field of View (degree)21.5 - 68.8
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Compliant StandardsIEEE 802.3af, EN 55032 Class A, EN 55035, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, AS/NZS CISPR 32 Class A, FCC Part 15 B Class A, ICES-003 issue 7, VCCI-CISPR 32 Class A, UL 62368-1 Third Edition, IEC/EN 62368-1, IEC/EN 62471, IEC 62262 IK10, IEC 60529 IP66, IEC 60529 IP67, IS 13252, IEC 60950-1, CNS 15936
Included AccessoriesAlignment sticker, screw pack, cable gland
Power
Power RequirementsPoE Class 3
Software / System Requirements
OS RequiredMicrosoft Windows 7 / 8 / 10, Apple macOS 10.12
Tilting
Range (degree)80
