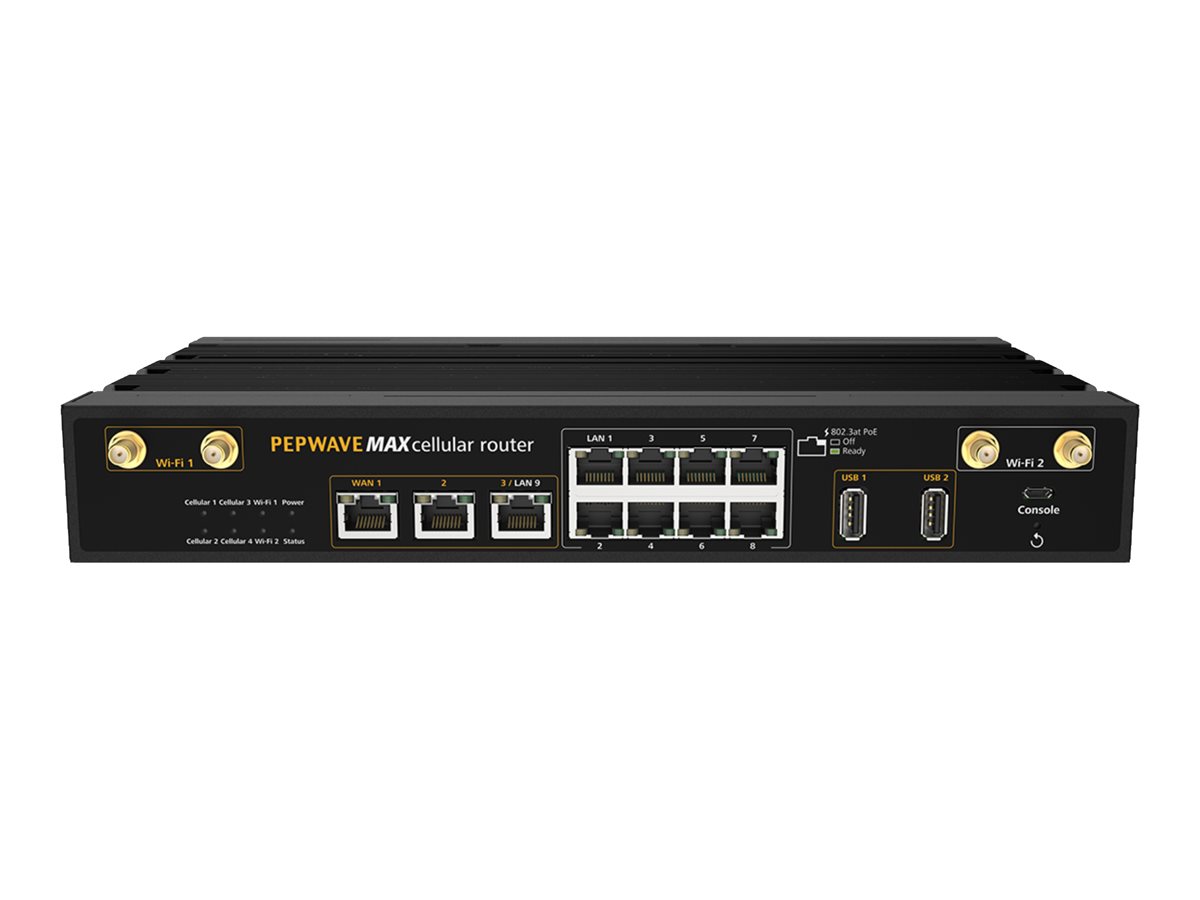

Pepwave MAX HD2 MBX - Wireless router
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Pepwave MAX HD2 MBX - Wireless router
- WWAN 8-port switch
- 1GbE
- WAN ports: 3
- Wi-Fi 5
- Dual Band
- 4G, 5G
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MAX-HD2-MBX-5GN-T |
| SHI Part #: | 49800795 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | PePLink |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Pepwave MAX HD2 MBX - Wireless router - WWAN 8-port switch - 1GbE - WAN ports: 3 - Wi-Fi 5 - Dual Band - 4G, 5G |
| Manufacturer | PePLink |
| MSRP | $9,999.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.7 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 3.3 kg |
| Dimensions & Weight / Width | 29.2 cm |
| Header / Brand | Pepwave |
| Header / Country Kits | Global |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology |
|
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Desktop |
| Networking / Type | Wireless router |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Antenna | |
| Antenna | External detachable |
| Communications | |
| Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71 |
| Cellular Protocol | LTE, 5G Sub-6 Ghz |
| Generation | 4G, 5G |
| Max Transfer Rate | 3.4 Mbps |
| Type | 2 x wireless cellular modem |
| Dimensions & Weight | |
| Depth | 17.7 cm |
| Height | 4.3 cm |
| Weight | 3.3 kg |
| Width | 29.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 4 Mini-SIM |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, Radio Service Set ID (SSID), LDAP |
| Capacity |
|
| Compliant Standards | IEEE 802.1Q, X.509, IEEE 802.3at, UPnP, FCC, RoHS, E Mark, EN 61000, EN 61373, EN 50155 |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Device Type | Wireless router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | 256-bit AES |
| Features | NAT support, load balancing, Syslog support, DoS attack prevention, IPv6 support, High Availability, DHCP server, DNS proxy, port forwarding, 3G/4G USB Dongle Support, e-mail notification, Captive Portal, DHCP reservation, SpeedFusion technology, Web Filtering, PSK, Advanced QoS, 2x2 MIMO technology, SIP ALG, Ignition Sense, PPTP VPN server, drop-in mode |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPPoE, DHCP, DDNS |
| Performance |
|
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP |
| Routing Protocol | RIP-2, BGP, VRRP, OSPFv2, static IP routing |
| Status Indicators | Power, status, Wi-Fi, cellular |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | GPS antenna, mounting brackets, 4 x Wi-Fi antennas, 3-pin terminal block connector (ignition sense), 4-pin terminal block connector (power supply), grounding cable, rubber feet set, 8 x LTE/5G antennas |
| Localization | Global |
| Power | |
| Power Device | External power adapter - 180 watt |
| Voltage Required | AC 100-240 V |
