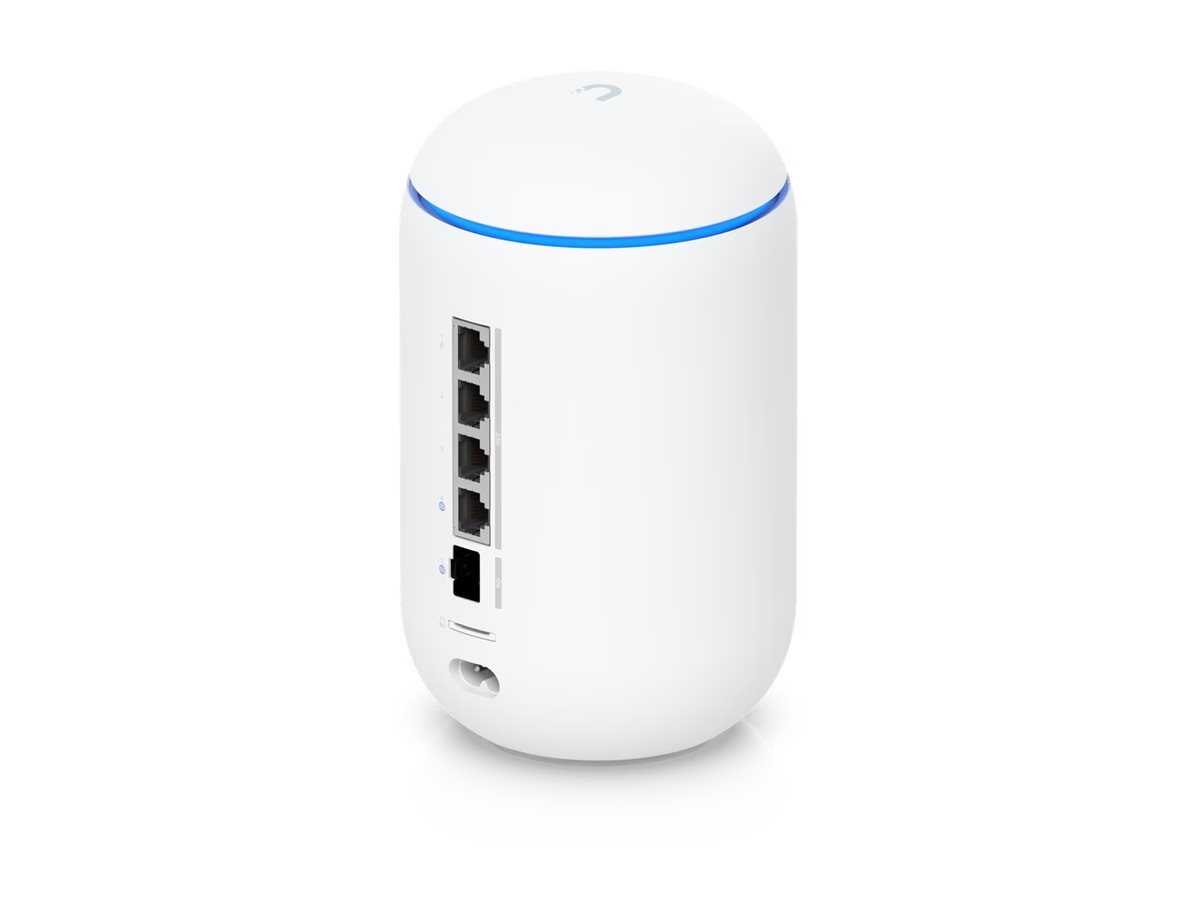

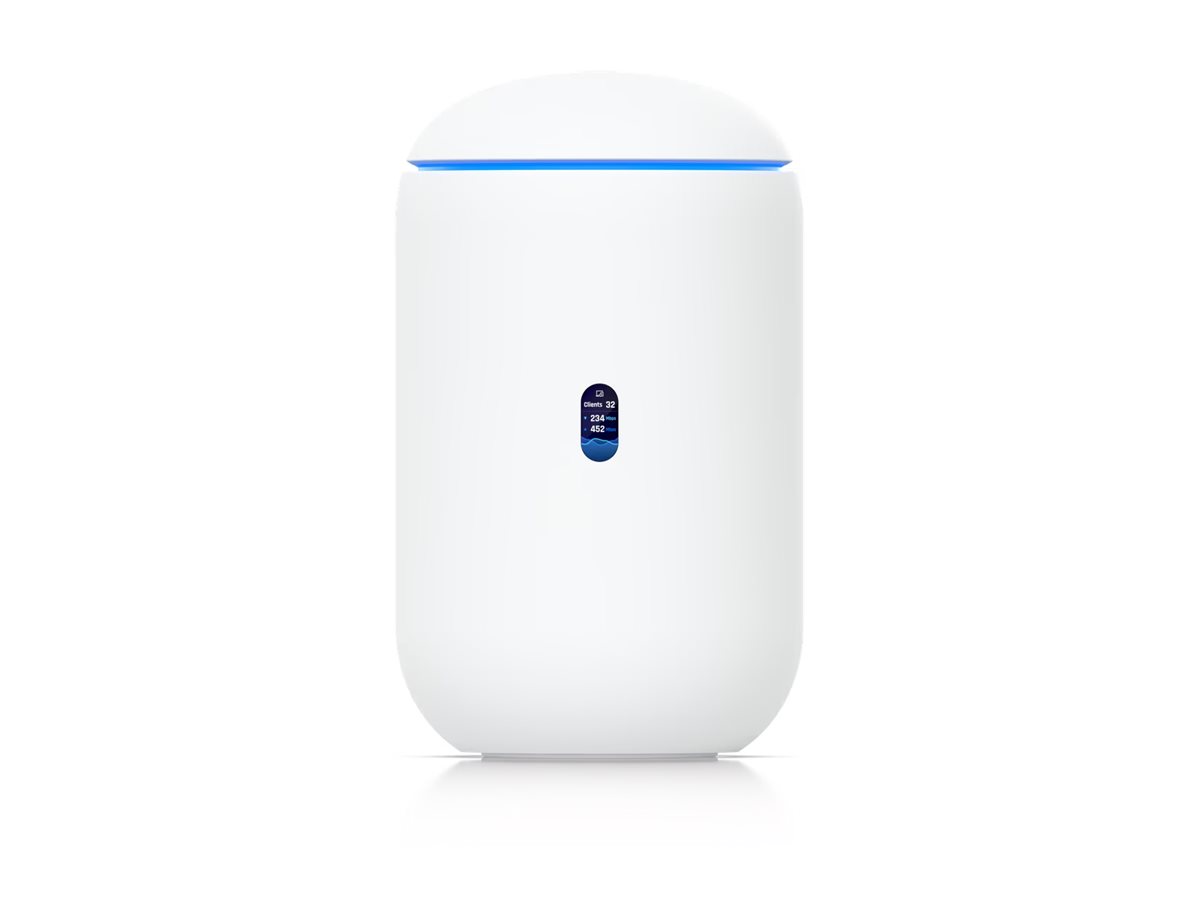

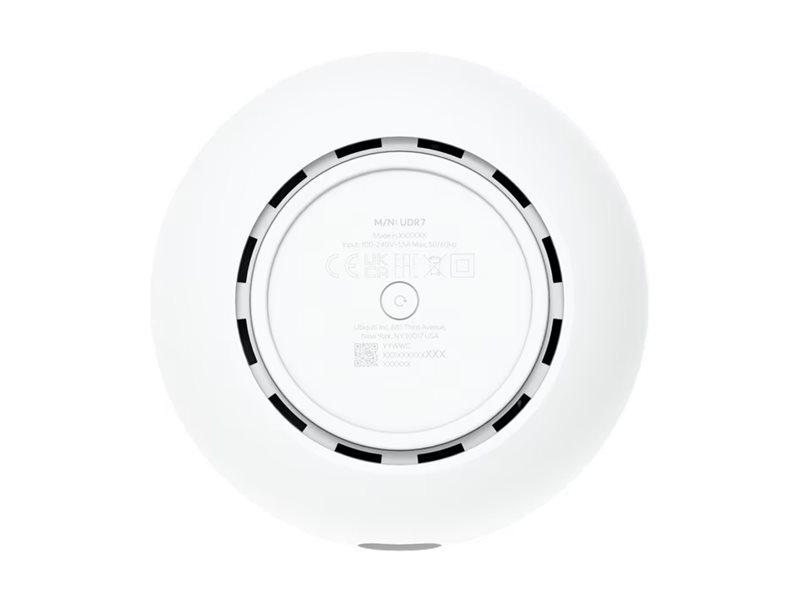

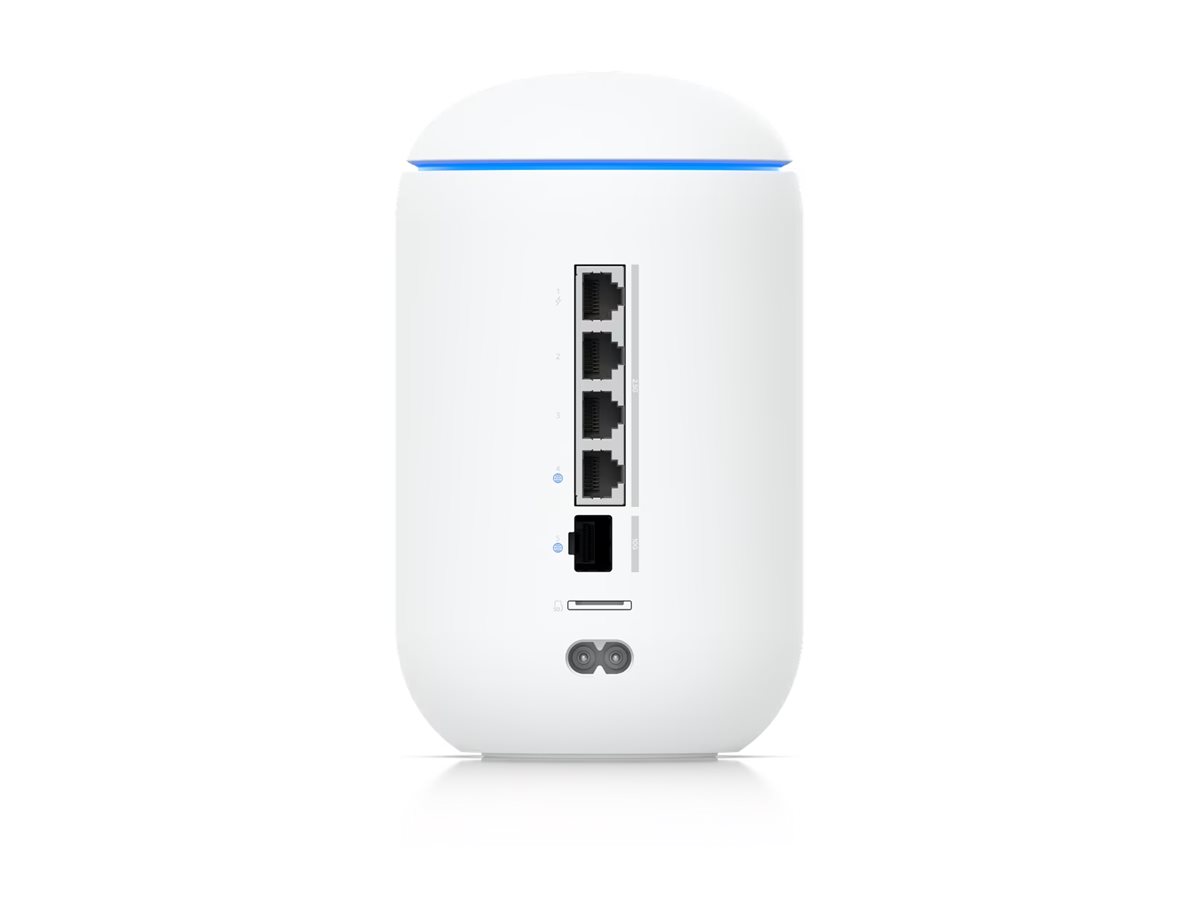

Ubiquiti Dream Router 7
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Ubiquiti Dream Router 7
- Wireless router 3-port switch
- Wi-Fi 7, 10GbE, 2.5GbE
- WAN ports: 2 Multi-Band
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | UDR7-US |
| SHI Part #: | 49877027 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Ubiquiti |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Ubiquiti Dream Router 7 - Wireless router 3-port switch - Wi-Fi 7, 10GbE, 2.5GbE - WAN ports: 2 Multi-Band |
| Manufacturer | Ubiquiti |
| MSRP | $295.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11 cm |
| Dimensions & Weight / Height | 18.41 cm |
| Dimensions & Weight / Weight | 1.1 kg |
| Dimensions & Weight / Width | 11 cm |
| Header / Brand | Ubiquiti |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology |
|
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Form Factor | Desktop |
| Networking / Type | Wireless router |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac/ax/be |
| Packaged Quantity | 1 |
| Antenna | |
| Antenna | Internal |
| Dimensions & Weight | |
| Depth | 11 cm |
| Height | 18.41 cm |
| Weight | 1.1 kg |
| Width | 11 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x microSD |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, RADSEC |
| Built-in Devices | Status LCD |
| Capacity |
|
| Compliant Standards | IEEE 802.1Q, IEEE 802.11be, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, Wi-Fi CERTIFIED 7, IC, FCC |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Data Transfer Rate | 10 Gbps |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | WPA-PSK, WPA2-Enterprise, WPA3-Enterprise, WPA-Enterprise |
| Features | Cloud managed, full stateful firewall, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, IPS, IDS, ad blocking, VLAN segmentation, SD-WAN support, 1-click-VPN site-to-site, VPN Server, VPN client, load balancing, Advanced QoS, mDNS, NAT support, DNAT support, SNAT support, RADIUS Server, failover backup, ISP, policy-based WAN, VPN routing, DHCP server, IGMP proxy, 2x2 MU-MIMO technology, 15.4 W PoE power budget, Quad-core CPU, polycarbonate enclosure, Bluetooth management, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), reset button, Guest Isolation |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| MAC Address Table Size | 2000 entries |
| Network / Transport Protocol | IPSec, OpenVPN, WireGuard, L2TP, DHCP, IGMP, IPv6 |
| Performance |
|
| Processor | 1 x ARM 1.5 GHz |
| RAM | 3 GB |
| Routing Protocol | OSPF |
| Status Indicators | System |
| Miscellaneous | |
| Included Accessories | 64 GB microSD Card, power cable |
| Localization | United States |
| Power | |
| Power Device | Internal power supply - 50 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
- Gateway
- Wi-Fi 7, 10GbE, 2.5GbE
- Wi-Fi 7
- 2.4 GHz, 5 GHz, 6 GHz
- desktop
