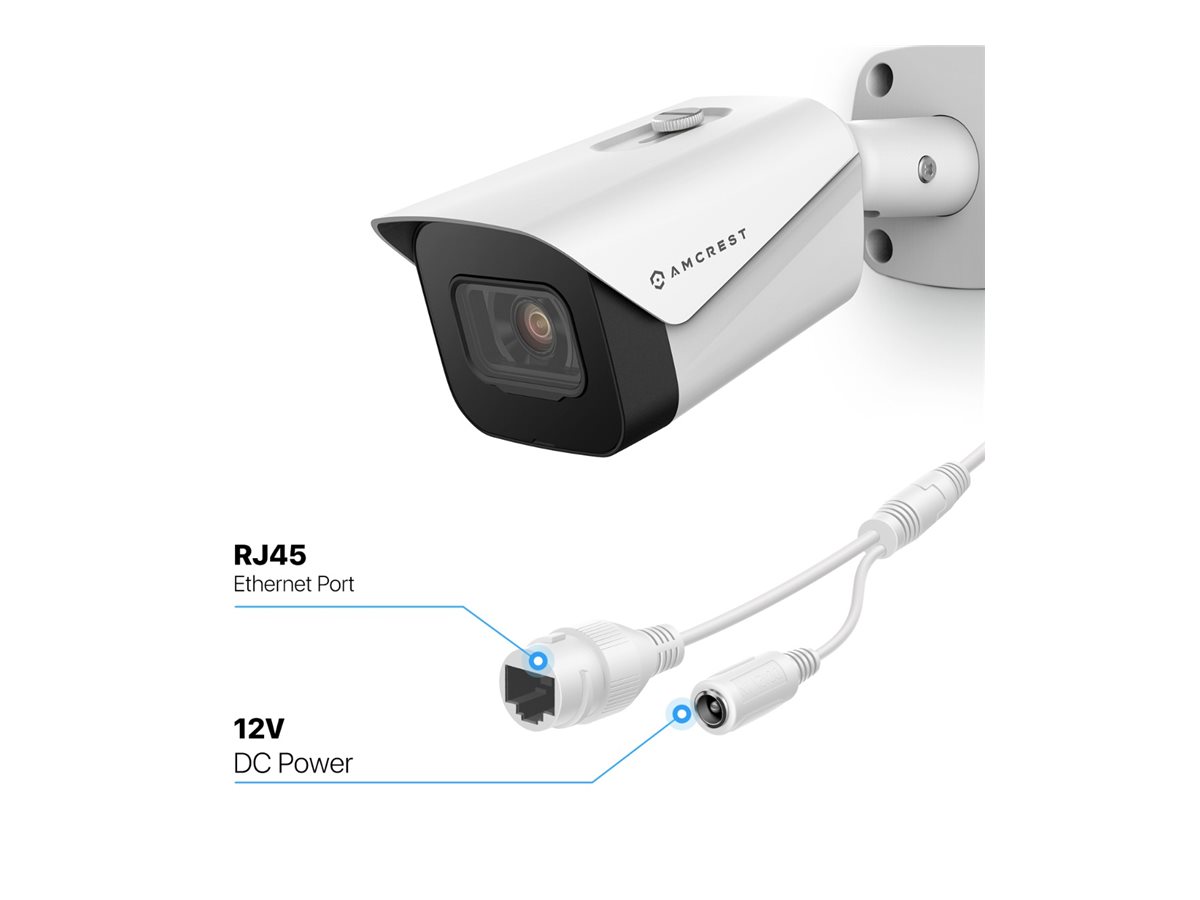

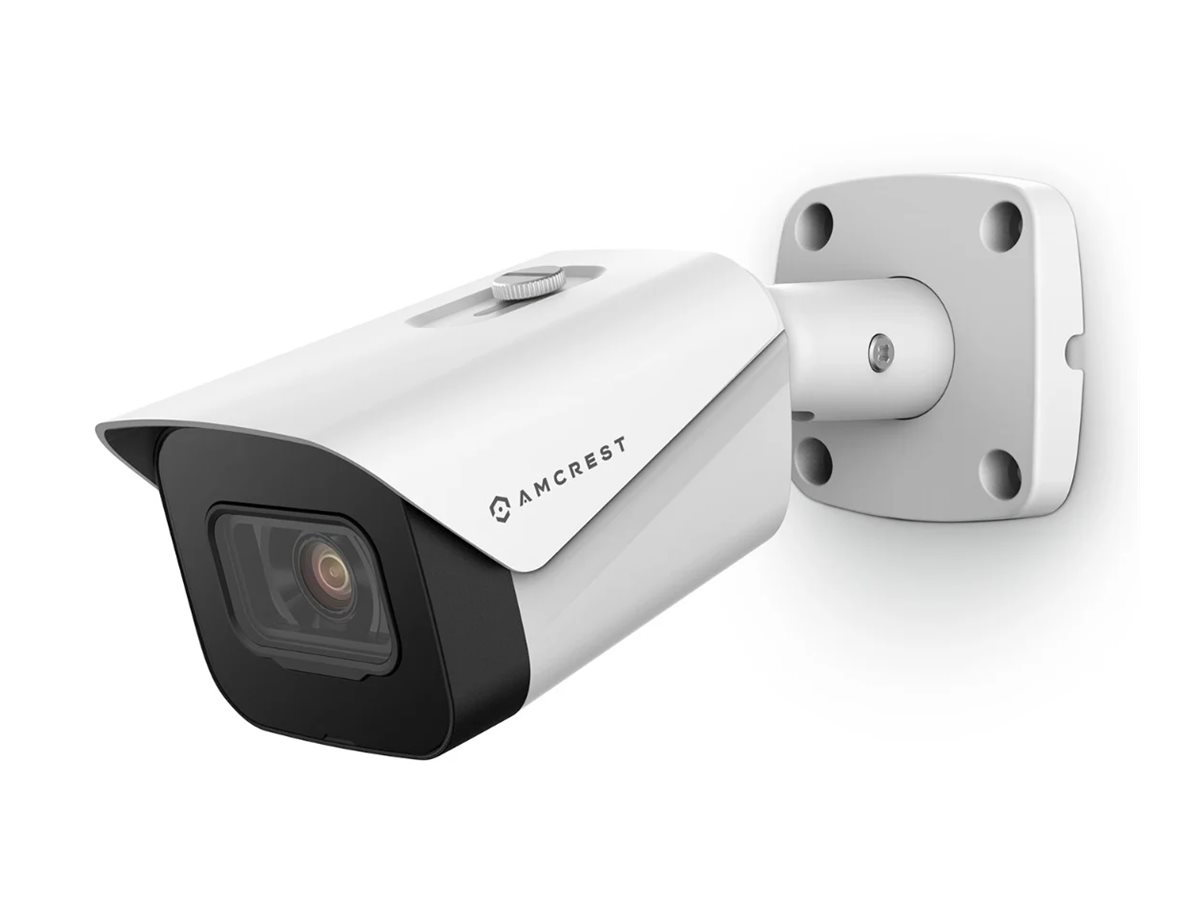

Amcrest IP8M-2496EW-AI-V3
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Amcrest IP8M-2496EW-AI-V3
- Network panoramic camera
- turret
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 8 MP
- 3840 x 2160
- 4K
- M12 mount
- fixed iris
- fixed focal
- audio
- Ethernet 10Base-T/100Base-T
- H.264, H.265
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | IP8M-2496EW-AI-V3 |
| SHI Part #: | 50046392 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Amcrest |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Amcrest IP8M-2496EW-AI-V3 - Network panoramic camera - turret - outdoor - vandal / weatherproof - color (Day&Night) - 8 MP - 3840 x 2160 - 4K - M12 mount - fixed iris - fixed focal - audio - Ethernet 10Base-T/100Base-T - H.264, H.265 - DC 12 V / PoE |
| Manufacturer | Amcrest |
| MSRP | $99.99 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 7.01 cm |
| Dimensions & Weight / Weight | 463 g |
| Dimensions & Weight / Width | 7.42 cm |
| Header / Brand | Amcrest |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 3072 x 2048, 3072 x 1728, 2880 x 1620, 2688 x 1520, 2048 x 1536, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 704 x 480, 352 x 288, 352 x 240 |
| Digital Video Format | H.264, H.265 |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Features | 0 - 360° rotation range, DORI coverage, human detection, intrusion detection, tripwire detection, Vehicle Detection, Smart Codec, Constant Bitrate (CBR), Variable Bitrate (VBR), 120 dB wide dynamic range, 3D digital noise reduction (DNR), 4 motion detection zones, auto gain control, auto ICR, auto white balance, Backlight Compensation (BLC), Highlight Compensation (HLC), manual gain control, manual white balance, mirror, natural white balance, privacy masking (up to 4 areas), up to 20 users, metal housing |
| Flash Memory | 128 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination | 0.0009 lux - B&W - F2.0 - 30 IRE |
| Motion Detection | Yes |
| RAM | 256 MB |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Video Modes | 4K |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | = 95% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card |
| General | |
| Audio Formats | AAC, G.711a, G.711u, G.726, PCM |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Depth | 16.5 cm |
| Device Type | Network panoramic camera |
| Form Factor | Turret |
| Height | 7.01 cm |
| Weight | 463 g |
| Width | 7.42 cm |
| Image Sensor | |
| Type | 8 MP Progressive Scan CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTMP, SFTP, FTP, DHCP, DDNS, DNS, UPnP, NTP, P2P |
| Lens Construction | |
| Diagonal Field of View (degree) | 125 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 106 |
| Lens Iris | F/2.0 fixed iris |
| Type | M12 mount - fixed focal |
| Vertical Field of View (degree) | 56 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IP67, IK10, IEEE 802.3at |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Software / System Requirements | |
| Software Included | Amcrest Surveillance Pro, Amcrest Blue Iris, Amcrest Cloud, Amcrest View Pro |
| Tilting | |
| Range (degree) | 0 to 90 |
