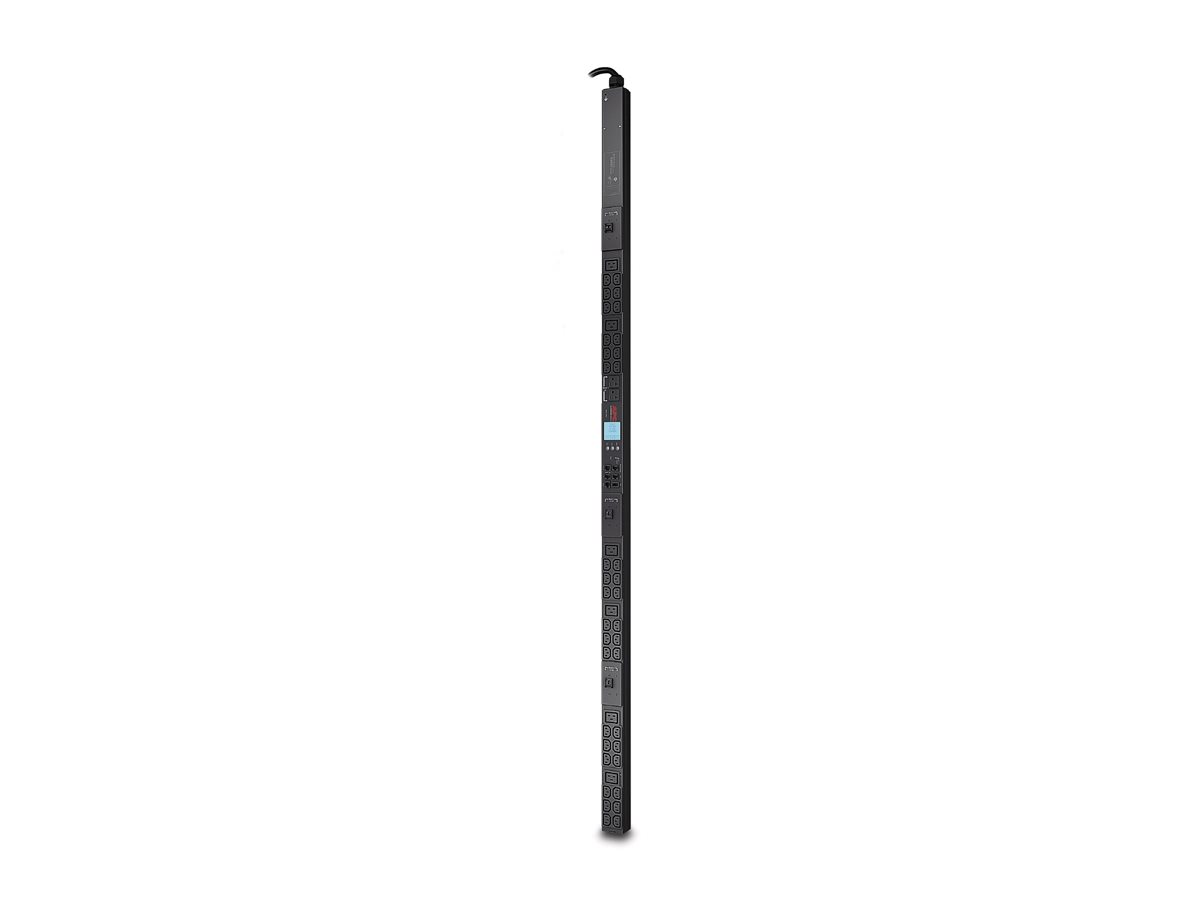

APC NetShelter - Power distribution unit (rack-mountable)
MSRP$2,590.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC NetShelter - Power distribution unit (rack-mountable)
- metered, 30A
- AC 208 V
- 8.6 kW
- 8600 VA
- 3-phase
- Ethernet 10/100, USB, serial

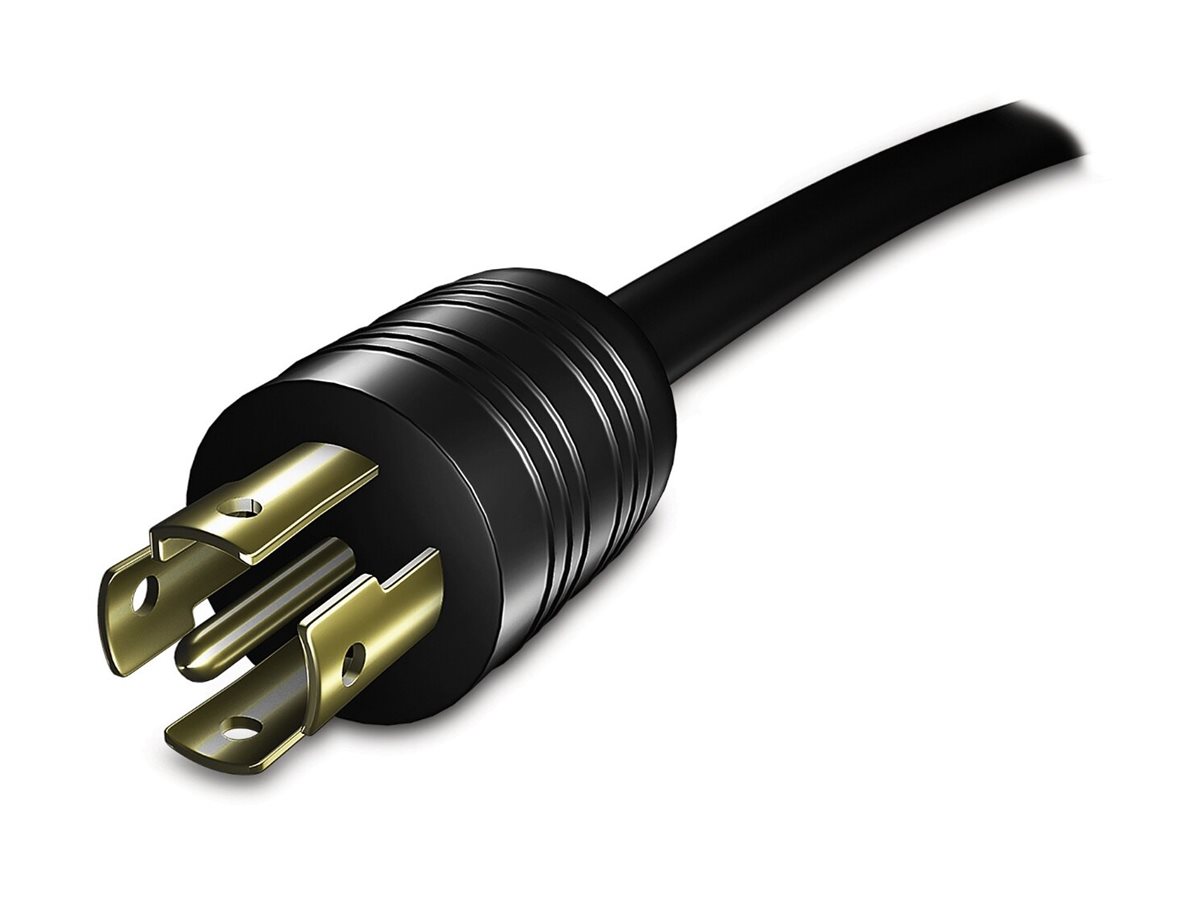

- input: NEMA L21-30P
- output connectors: 44 (power IEC 60320 C13, NEMA 5-20R, IEC 60320 C19)
- 0U
- 1.82 m cord
- United States
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,590.00 |
| Mfr Part #: | AP8865US |
| SHI Part #: | 50066135 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC NetShelter - Power distribution unit (rack-mountable) - metered, 30A - AC 208 V - 8.6 kW - 8600 VA - 3-phase - Ethernet 10/100, USB, serial - input: NEMA L21-30P - output connectors: 44 (power IEC 60320 C13, NEMA 5-20R, IEC 60320 C19) - 0U - 1.82 m cord - United States - black - TAA Compliant |
| Manufacturer | APC by Schneider Electric |
| MSRP | $2,590.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.6 cm |
| Dimensions & Weight / Height | 179.1 cm |
| Dimensions & Weight / Weight | 7.56 kg |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | APC |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 44 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 4.6 cm |
| Height | 179.1 cm |
| Weight | 7.56 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16.2 cm |
| Shipping Height | 200 cm |
| Shipping Weight | 9.2 kg |
| Shipping Width | 10.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 1.82 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Localization | United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Miscellaneous | |
| Cables Included | AC input cable 1.8 m |
| Compliant Standards | CSA C22.2 No. 60950, UL 60950-1, EU RoHS, REACH |
| Features | Vertical orientation, tool-less installation, remote monitoring, LCD display, daisy chain functionality |
| Included Accessories | Rack mounting brackets |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB, serial |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30P |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 120/208 V |
| Power Capacity | 8.6 kW / 8600 VA |
| Power Output Connectors Details |
|
