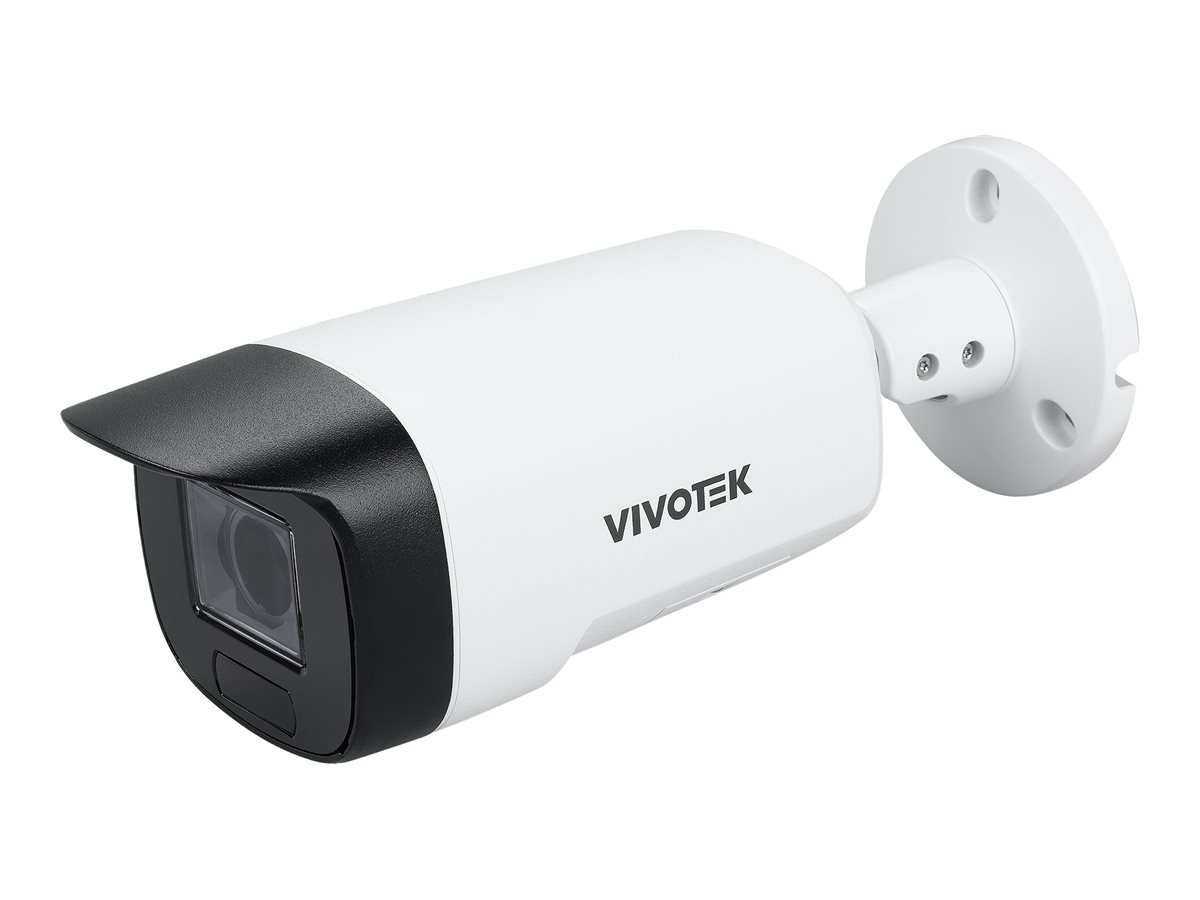

Vivotek VORTEX Premium IB839-EHTV-V2
MSRP$1,113.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vivotek VORTEX Premium IB839-EHTV-V2
- Network surveillance camera
- bullet
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 5 MP
- 2560 x 1920
- fixed iris
- vari-focal
- audio
- LAN 10/100
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,113.00 |
| Mfr Part #: | IB839-EHTV-V2-1Y |
| SHI Part #: | 50068515 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek VORTEX Premium IB839-EHTV-V2 - Network surveillance camera - bullet - outdoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed iris - vari-focal - audio - LAN 10/100 - PoE Class 3 |
| Manufacturer | Vivotek |
| MSRP | $1,113.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.85 cm |
| Dimensions & Weight / Height | 9.2 cm |
| Dimensions & Weight / Weight | 1.04 kg |
| Dimensions & Weight / Width | 9.2 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 10-year warranty |
| Camera | |
| Digital Video Capture Resolution | 1280 x 960, 2560 x 1920 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | Wide Dynamic Range (WDR) Pro, IR-cut filter, secure boot, signed firmware, video encryption, HTTPs encryption, TLS encryption protocol, intrusion detection, Line Crossing Detection, loitering detection, unattended object detection, missing object detection, attribute search |
| Flash Memory | 256 GB |
| Frame Rate (max) | 15 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -35 °C |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | TLS 1.2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 25.85 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.2 cm |
| Weight | 1.04 kg |
| Width | 9.2 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP, RTP, RTCP, SSL, TCP/IP, TLS, UDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 35.9 - 129.6 |
| Focal Length | 2.8 mm - 12 mm |
| Horizontal Field of View (degree) | 28.7 - 95.4 |
| Lens Iris | F/1.6-3.3 fixed iris |
| Type | Vari-focal |
| Vertical Field of View (degree) | 21.5 - 68.8 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Compliant Standards | IP66, IK10, EMC, EN 55032 Class A, EN 55035 Class A, UKCA, BS EN 55032, BS EN 55035 Class A, FCC Part 15 B Class A, AS/NZS CISPR32 Class A, VCCI-CISPR 32 Class A, ICES-003 issue 7 Class A, UL 62368-1, IEC/EN 62368-1, IEC/EN 62471, BS EN IEC 62368-1, CNS 13438, CNS 14336-1 |
| Included Accessories | Alignment sticker, screw pack, cable gland |
| Panning | |
| Range (degree) | 350 |
| Power | |
| Power Device | 12.4 Watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| Software Included | VORTEX VSaaS xPro License (1 year) |
| Tilting | |
| Range (degree) | 80 |
