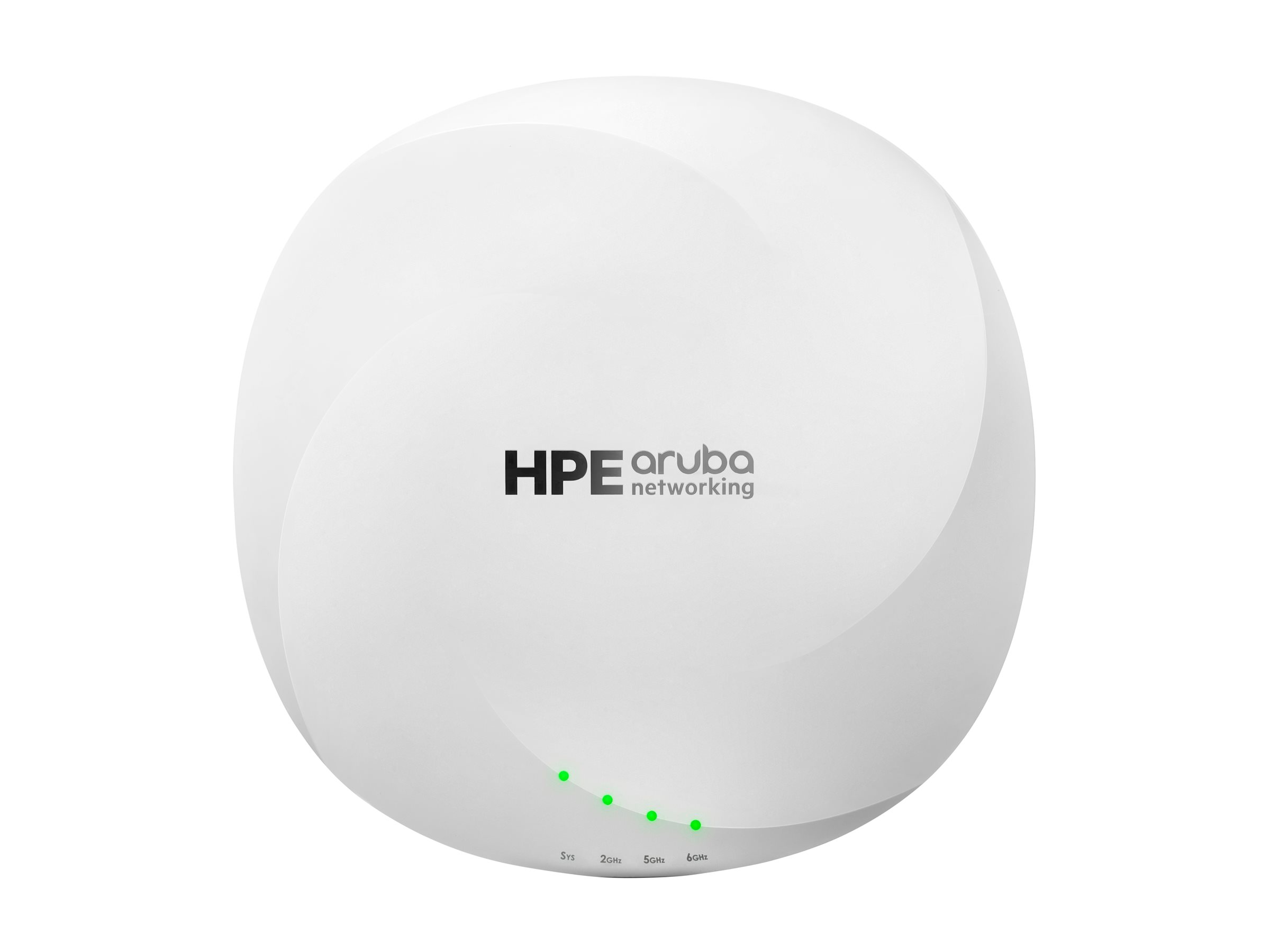

HPE Aruba Networking AP-655 (ID)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Aruba Networking AP-655 (ID)
- Campus
- wireless access point
- Wi-Fi 6
- Wi-Fi 6E, Bluetooth, ZigBee
- 2.4 GHz, 5 GHz, 6 GHz
- BTO ceiling mountable
| Additional Details | |
|---|---|
| Mfr Part #: | S5E08A |
| SHI Part #: | 50121181 |
| Category: | Wireless access point |
| UNSPSC: | 43222640 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Wireless access point |
| Description | HPE Aruba Networking AP-655 (ID) - Campus - wireless access point - Wi-Fi 6 - Wi-Fi 6E, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - BTO ceiling mountable |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222640 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26 cm |
| Dimensions & Weight / Height | 5.6 cm |
| Dimensions & Weight / Weight | 1.8 kg |
| Dimensions & Weight / Width | 26 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 7.8 Gbps |
| Networking / Form Factor | Ceiling mountable |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 30 cm |
| Shipping Height | 10 cm |
| Shipping Weight | 2.2 kg |
| Shipping Width | 30 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 26 cm |
| Device Type | Wireless access point |
| Height | 5.6 cm |
| Ruggedized Design | Indoor |
| Weight | 1.8 kg |
| Width | 26 cm |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Internet of Things (IoT) Compatible | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | ETS 300 019 Class 3.2, ETS 300 019 Class 1.2, ETS 300 019 Class 2.3, FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, IEC/EN 62368-1, EN 60601-1-1, EN 60601-1-2, UL 2043 |
| MTBF | 59 years |
| Pricing Type | BTO |
| Networking | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED, Wi-Fi CERTIFIED 6E, IEEE 802.3bz, IEEE 802.3az, IEEE 802.3at, IEEE 802.3bt |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee |
| Data Transfer Rate | 7.8 Gbps |
| Encryption Algorithm | WPA, WPA2, WPA3-Enterprise |
| Features | 4x4:4 streams, 4x4 MIMO technology, Advanced Cellular Coexistence (ACC), Ultra Tri-Band (UTB), Maximum Ratio Combining (MRC), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Space-Time Block Code, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Target Wait Time (TWT), packet aggregation A-MPDU, packet aggregation A-MSDU, Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), Link Aggregation Control Protocol (LACP), Trusted Platform Module (TPM), security slot (Kensington security lock compatible), automatic thermal shutdown, PoE Class 4, 160MHz bandwidth support |
| Form Factor | Ceiling mountable |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Line Coding Format | BPSK, QPSK, CCK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM |
| Performance |
|
| Spread Spectrum Method | DSSS, OFDM, OFDMA |
| Status Indicators | System, status |
| Software / System Requirements | |
| OS Required | InstantOS 8.10.0.1, ArubaOS 10.4.0.0 |
