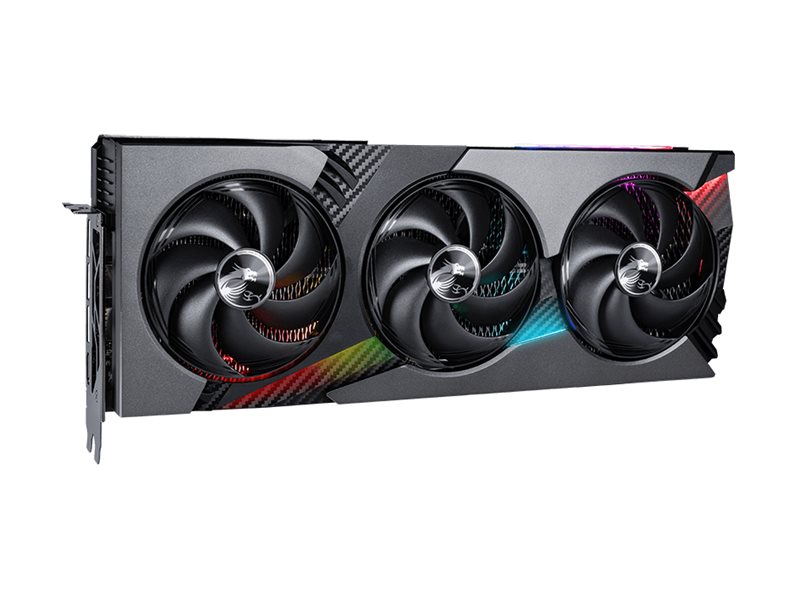

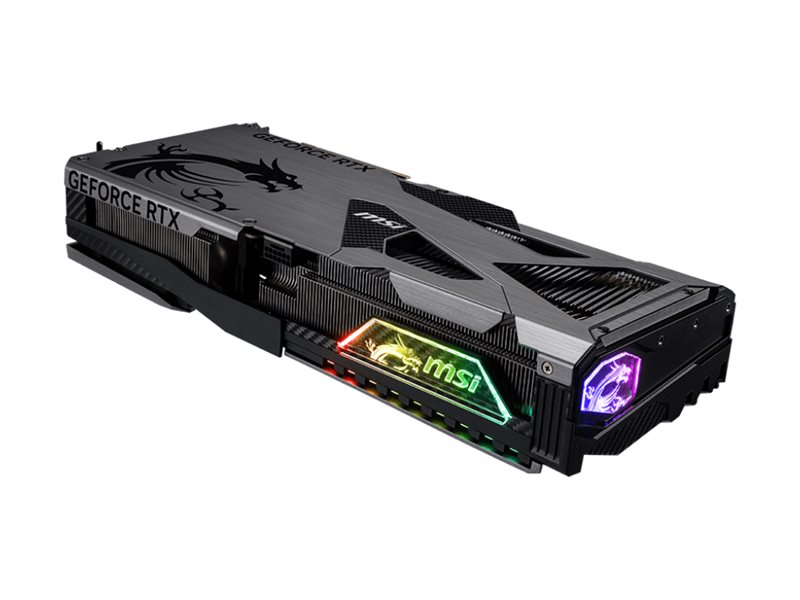

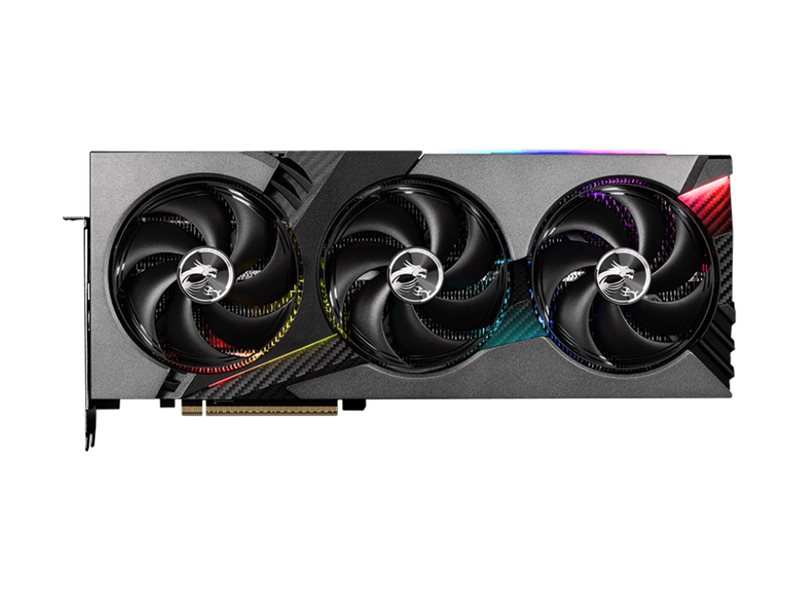

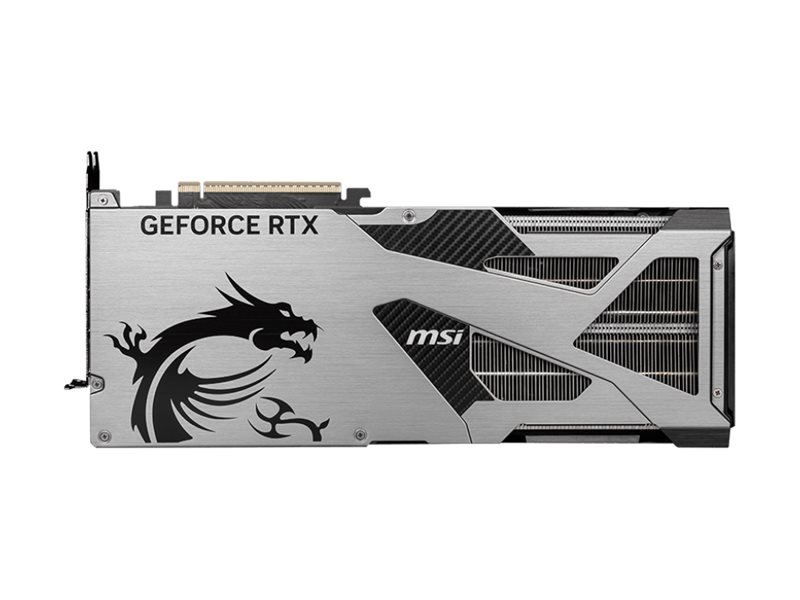

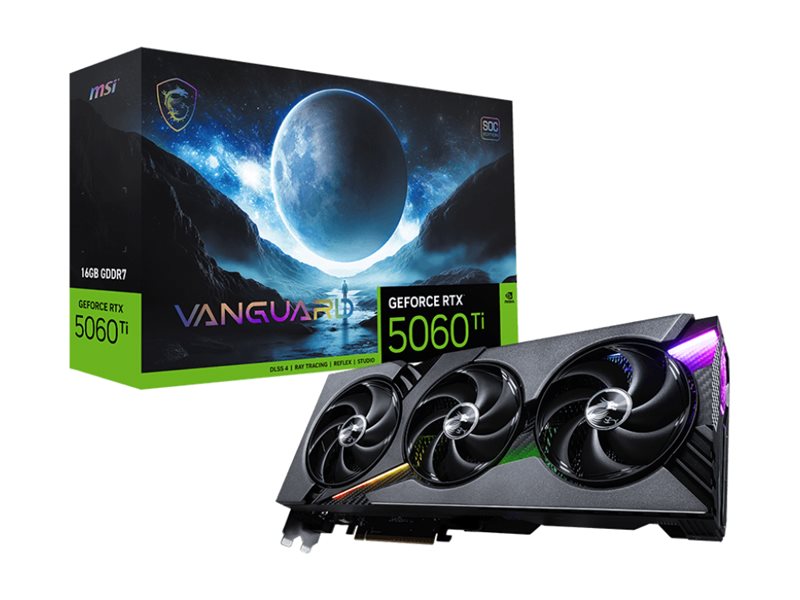

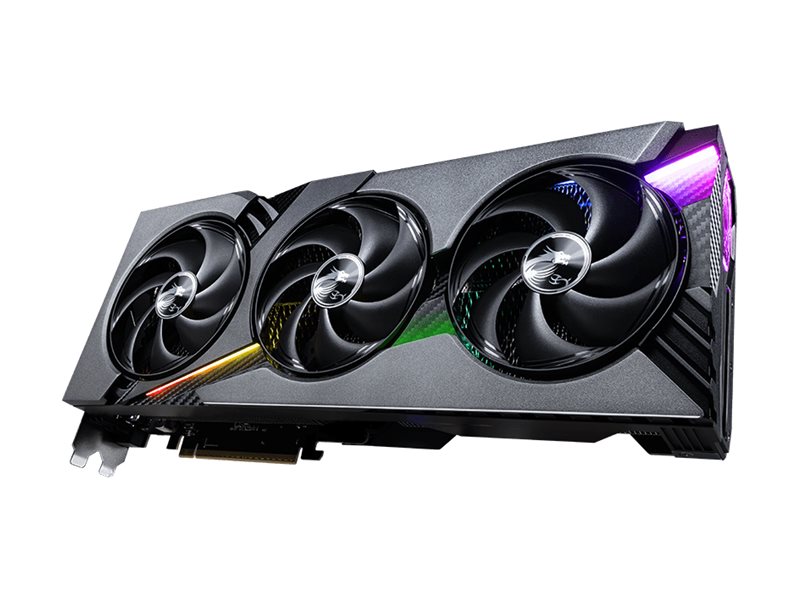

MSI GeForce RTX 5060 Ti 16G VANGUARD SOC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MSI GeForce RTX 5060 Ti 16G VANGUARD SOC
- Graphics card
- GeForce RTX 5060 Ti
- 16 GB GDDR7
- PCIe 5.0 x16

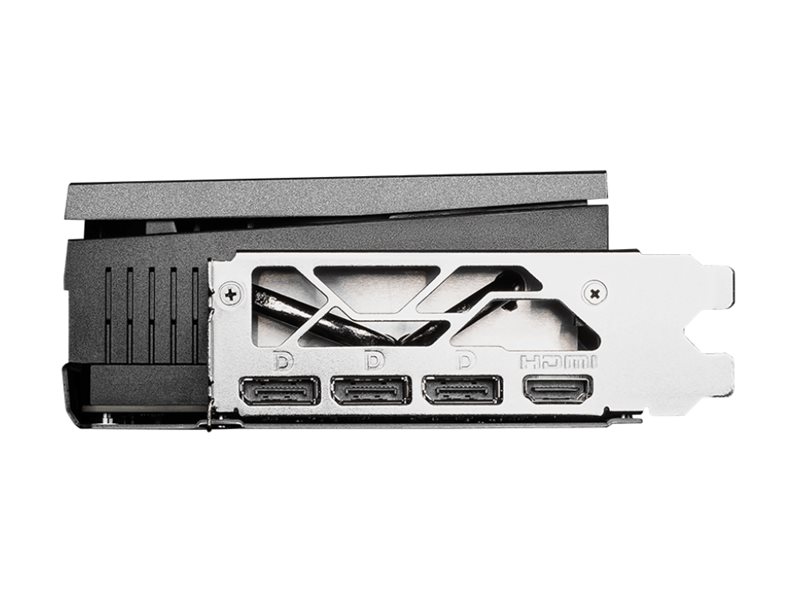

- HDMI, 3 x DisplayPort
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | G506T-16VGS |
| SHI Part #: | 50241102 |
| Category: | Graphic accelerator cards |
| UNSPSC: | 43201401 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Graphic accelerator cards |
| Description | MSI GeForce RTX 5060 Ti 16G VANGUARD SOC - Graphics card - GeForce RTX 5060 Ti - 16 GB GDDR7 - PCIe 5.0 x16 - HDMI, 3 x DisplayPort |
| Manufacturer | MSI |
| MSRP | $589.99 |
| UNSPSC | 43201401 |
| Main Specifications | |
| A/V Interface Type | PCI Express 5.0 x16 (x8 mode) |
| Dimensions & Weight / Depth | 33.7 cm |
| Dimensions & Weight / Height | 14 cm |
| Dimensions & Weight / Weight | 1.278 kg |
| Dimensions & Weight / Width | 6.1 cm |
| Header / Brand | MSI |
| Packaged Quantity | 1 |
| Video Memory / Technology | GDDR7 SDRAM |
| Video Output / Graphics Processor | NVIDIA GeForce RTX 5060 Ti |
| Video Output / Graphics Processor Manufacturer | NVIDIA |
| General | |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Boost Clock | 2692 MHz |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| CUDA Cores | 4608 |
| Device Type | Graphics card |
| Features | Core Pipe, Stormforce Fan, nickel plated copper base, metal backplate, Wave Curved 4.0, Air Antegrade Fin 2.0, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, Nvidia Broadcast, NVIDIA G-Sync ready, Triple Fan Design, TriFrozr 4 Thermal Design, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, 9th Gen NVIDIA Encoder, fuse protection, DrMOS, RGB Lighting, HDCP |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Interfaces Details |
|
| Max Monitors Supported | 4 |
| Max Resolution | 7680 x 4320 |
| Memory | |
| Bus Width | 128-bit |
| Memory Speed | 28 Gbps |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Miscellaneous | |
| Depth | 33.7 cm |
| Height | 14 cm |
| Power Consumption Operational | 180 Watt |
| Shipping Weight | 2.059 kg |
| Software Included | MSI Center, MSI Afterburner, MSI APP Player, Norton 360 (30 days trial), Adobe Creative Cloud All Apps (1 month membership) |
| Weight | 1.278 kg |
| Width | 6.1 cm |
| System Requirements | |

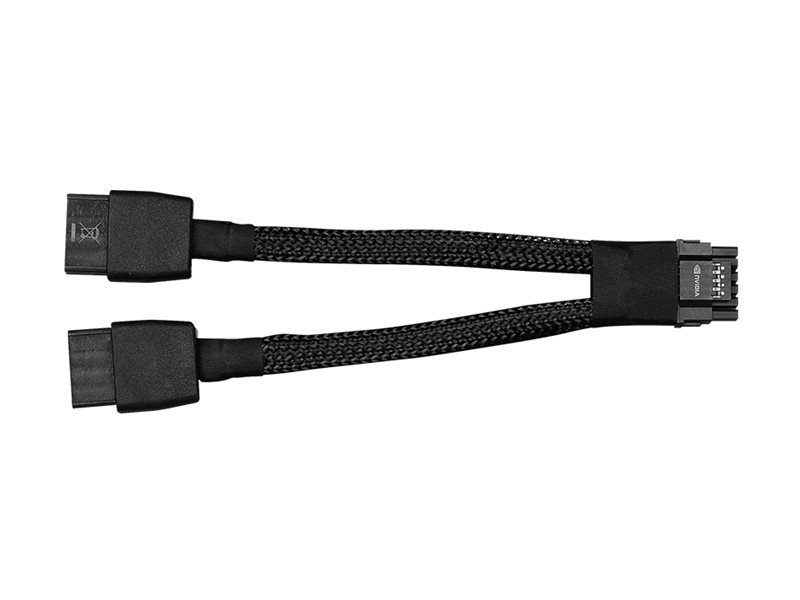

| Additional Requirements | 16 pin PCI Express power connector |
| Required Power Supply | 600 W |
