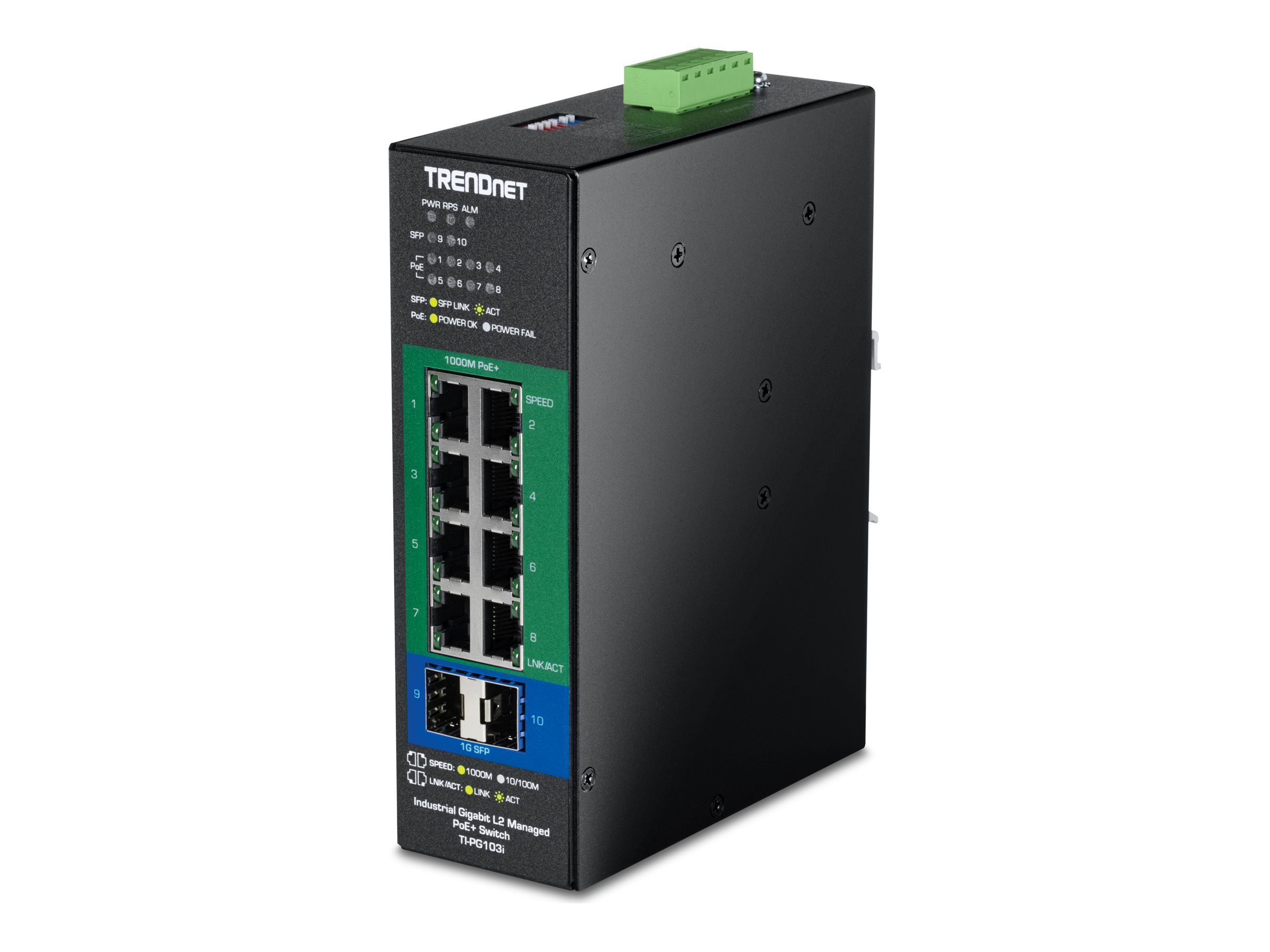

TRENDnet TI-PG103I - Version V1
MSRP$559.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
TRENDnet TI-PG103I - Version V1
- switch
- industrial, L2, 24-57V
- managed
- 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- DIN rail mountable
- PoE+ (240 W)
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $559.99 |
| Mfr Part #: | TI-PG103I |
| SHI Part #: | 50270621 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | TRENDnet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | TRENDnet TI-PG103I - Version V1 - switch - industrial, L2, 24-57V - managed - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable - PoE+ (240 W) - TAA Compliant |
| Manufacturer | TRENDnet |
| MSRP | $559.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12 cm |
| Dimensions & Weight / Height | 16 cm |
| Dimensions & Weight / Weight | 930 g |
| Dimensions & Weight / Width | 5 cm |
| Header / Brand | TRENDnet |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 16 cm |
| Weight | 930 g |
| Width | 5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable |
| Features | Built-in DIP switch, LED status indicators, reset button, backup/restore, firmware upgradable, power-saving mode, LLDP support, ONVIF support, topology view, SNTP support, SMTP alerts, Broadcast Storm Control, DHCP Option 82, DHCP relay, DDMI, ERPS v2, loopback detection, MIB II, Multicast Storm Control, port mirroring, port statistics counter, Syslog support, traffic monitoring, BPDU Filter, BPDU Guard, CoS, DSCP support, MAC based VLAN, per port bandwidth control, port isolation, Protocol-based VLANs support, queue scheduling support, tagged VLAN, IGMP fast leave, IGMP querier, IGMP snooping, IGMP snooping v2, IGMP snooping v3, 802.1x authentication, ACL support, alarm relay, extended temperature range, Port Security, fanless, metal housing, 6KV Surge protection, 8KV ESD Protector, LACP support, over-current protection |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Performance |
|
| PoE Budget | 240 W |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | HTTP, CLI, Telnet, SNMP 1, SNMP 2c, SNMP 3, SSH-2, SNMP, RMON 1, RMON 2, RMON 3, RMON 9, Modbus, SMTP, Syslog, MIB, MIB 2 |
| Routing Protocol | STP, RSTP |
| Status Indicators | Alarm, power, RPS (Redundant Power Supply), PoE, SFP, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IP40, FCC, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6, NDAA |
| Included Accessories | DIN-rail mounting, removable terminal block |
| MTBF | 460,726 hours |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC 24 - 57 V |
