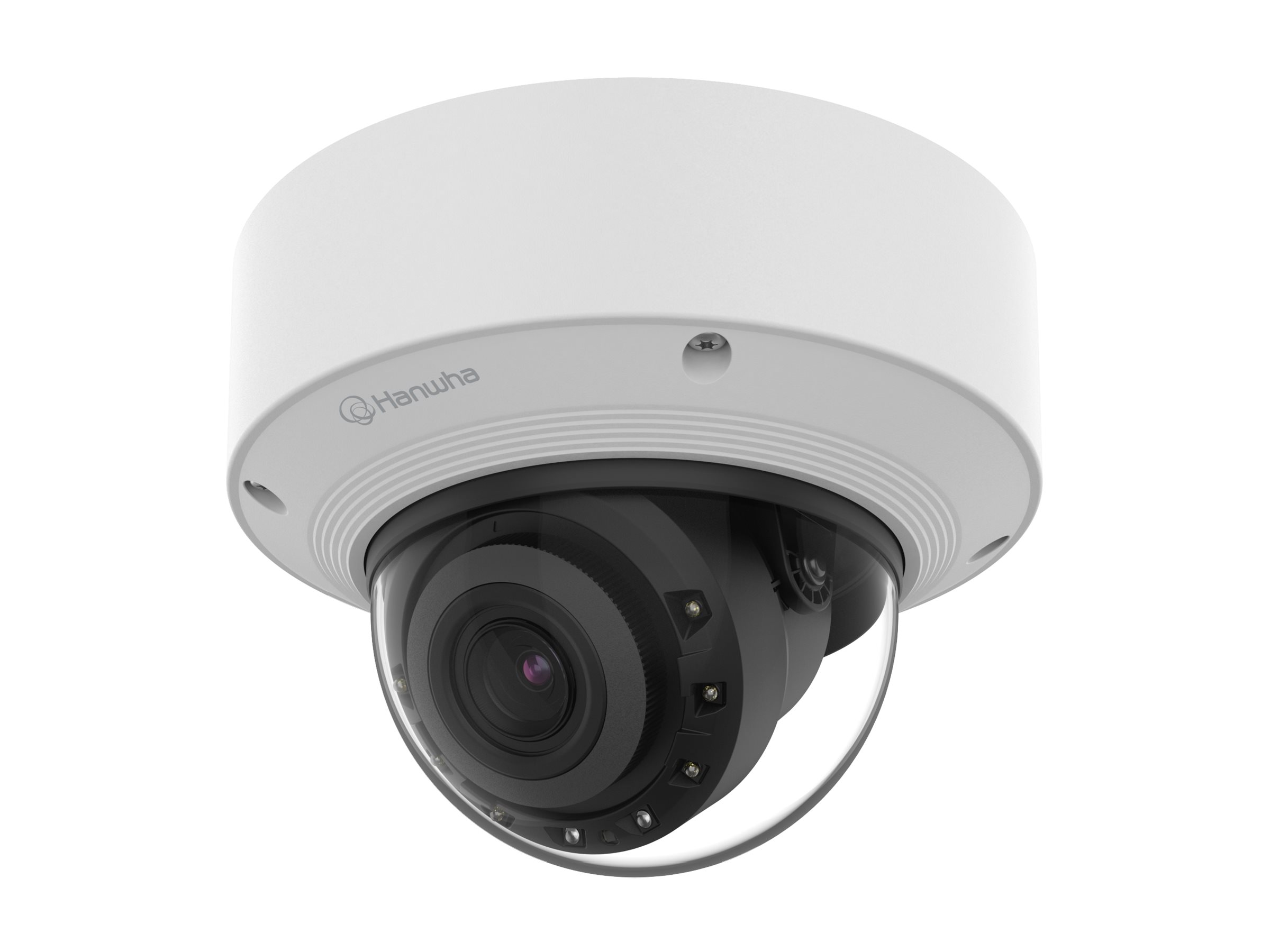

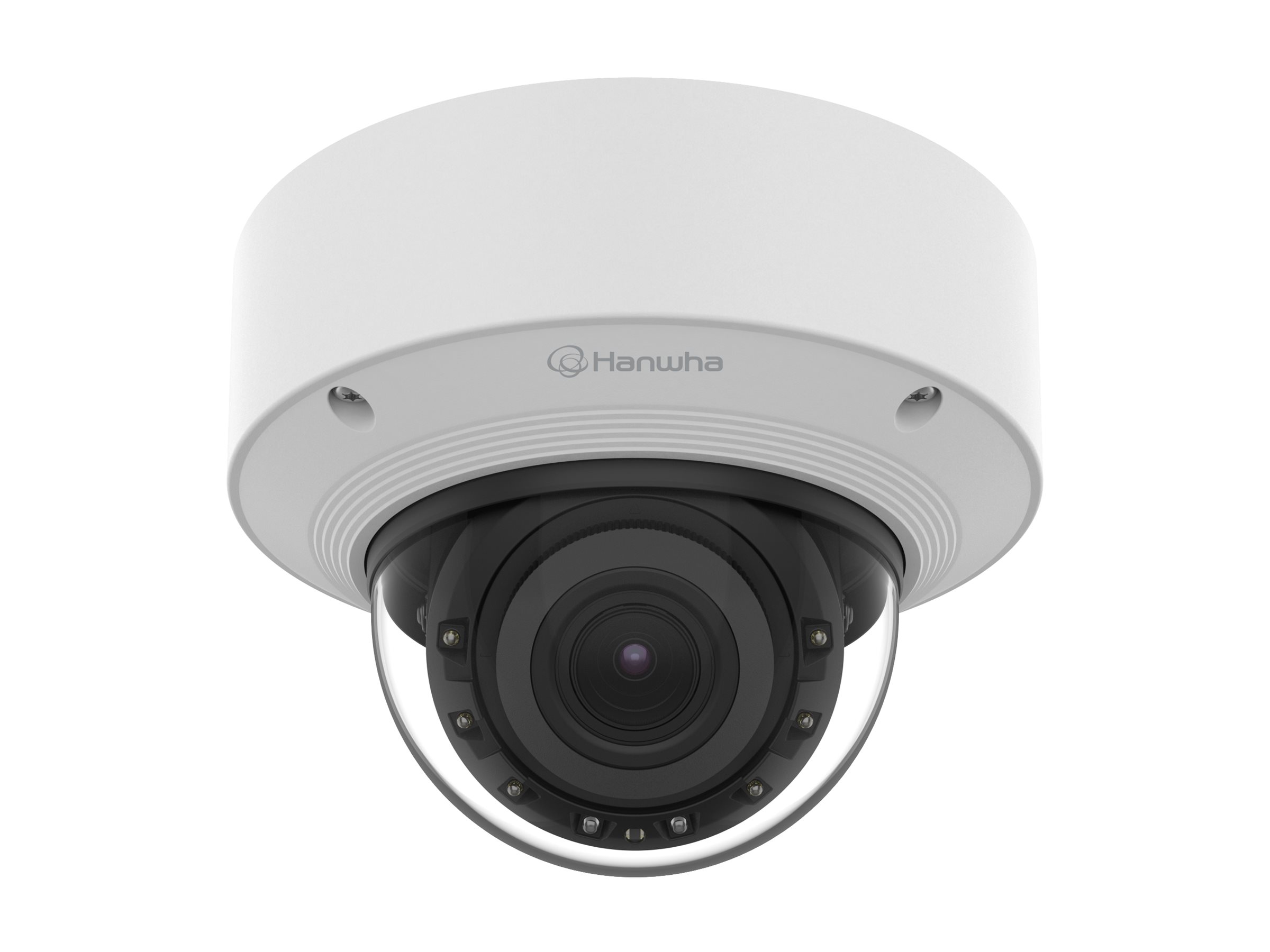

Hanwha Vision X Gen 2 XND-A8084RV
MSRP$1,300.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision X Gen 2 XND-A8084RV
- Network surveillance camera
- PTRZ
- dome
- indoor
- color (Day&Night)
- 5 MP
- 2592 x 1944
- motorized
- audio
- USB
- Ethernet 10Base-T/100Base-T
- H.265, H.264, MJPEG
- PoE Class 3
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,300.00 |
| Mfr Part #: | XND-A8084RV |
| SHI Part #: | 50294531 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision X Gen 2 XND-A8084RV - Network surveillance camera - PTRZ - dome - indoor - color (Day&Night) - 5 MP - 2592 x 1944 - motorized - audio - USB - Ethernet 10Base-T/100Base-T - H.265, H.264, MJPEG - PoE Class 3 - TAA Compliant |
| Manufacturer | HANWHA VISION |
| MSRP | $1,300.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 11.8 cm |
| Dimensions & Weight / Weight | 1.01 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | H.265, H.264, MJPEG |
| Exposure Range | 2 sec - 1/30000 sec |
| Features | 60Hz frame rate, 355° rotation, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, WiseNR II, Image Stabilization, Defog, dynamic privacy masking, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), image flip, image mirror, Hallway View, Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, gender recognition, clothes color detection, age recognition, mask detection, glasses detection, vehicle color recognition, Virtual Line detection, Line Crossing Detection, Directional Detection, loitering detection, intrusion detection, entrance / exit detection, appearing / disappearing detection, social distancing detection, Defocus Detection, Tampering detection, shock detection, people counting, vehicle counting, Crowd Density, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Constant Bitrate (CBR), Variable Bitrate (VBR), WiseStream support, Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, aluminum housing, hard-coated dome, dual NPU architecture, alarm notifications, color identification, electronic shutter, Best Shot Selector (BSS), Smart Codec, IR Corrected lens, auto ICR, Audio Detection |
| Flash Memory | 8 GB |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / roll / zoom - indoor |
| Video Capture | 2592 x 1944 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | STARTTLS, EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, PCM, G.726, ADPCM, AAC-LC, OPUS |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.8 cm |
| Weight | 1.01 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, CDP, MQTT, Syslog, SUNAPI |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 133 |
| Focal Length | 3.3 mm - 9.3 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 99 |
| Lens Iris | F/1.3 (wide) / f/2.3 (telephoto) (P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 2.8 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 71 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, ETSI EN 303 645, FIPS 140-3 Level 3, CC EAL6+, IEEE 802.3af, ROHS Directive 2011/65/EU, EN/IEC 63000:2018, REACH 1907/2006/CE, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP52, IEC/EN 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 62676-4 |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 9.4 Watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to -75 |
