Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

Hanwha Vision WiseNet X XNO-A8084R

MSRP$1,450.00
$1,124.00

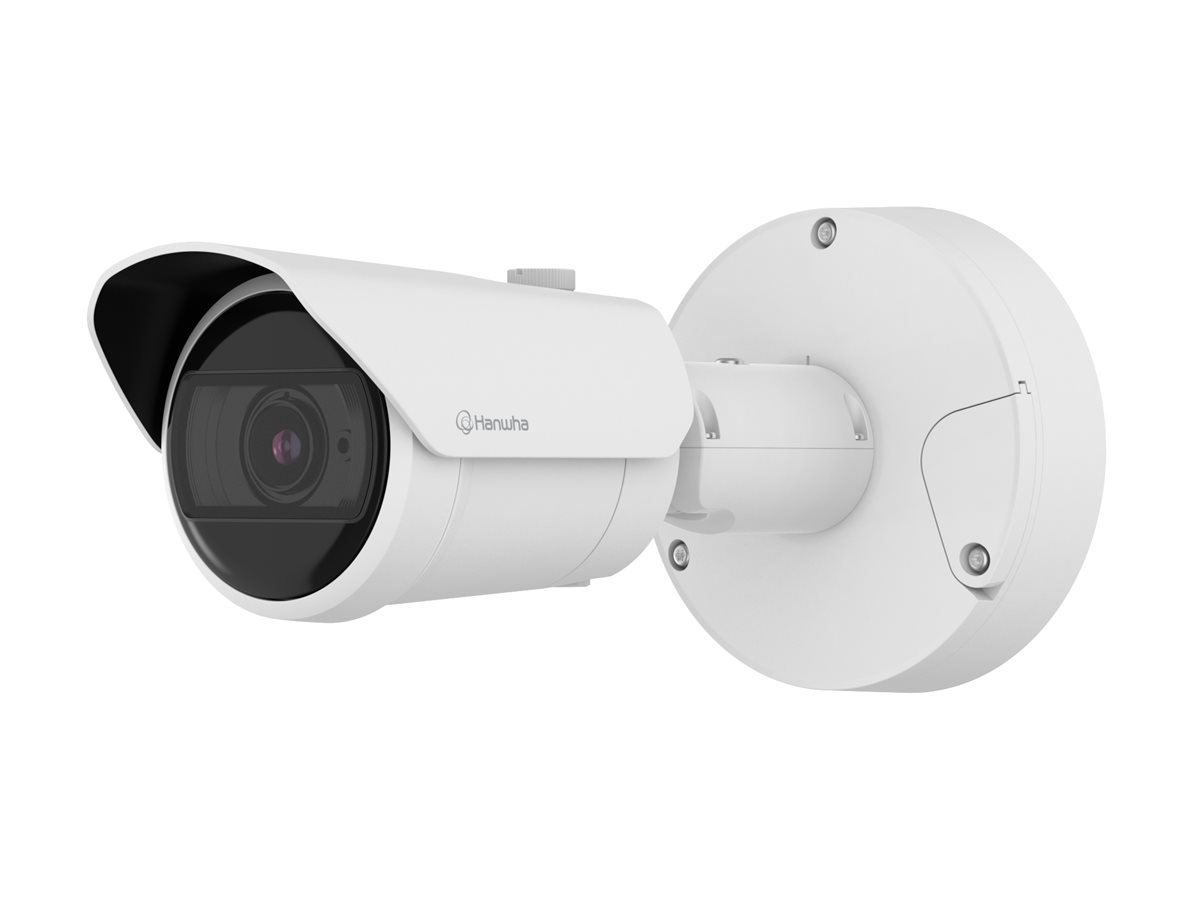

Hanwha Vision WiseNet X XNO-A8084R
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • PTRZ
  • bullet
  • outdoor
  • color (Day&Night)
Hanwha Vision WiseNet X XNO-A8084R
  • Network surveillance camera
  • PTRZ
  • bullet
  • outdoor
  • color (Day&Night)
  • 5 MP
  • 2560 x 1920
  • motorized
  • audio
  • USB
  • GbE
  • MJPEG, H.264, H.265
  • PoE Class 3
  • TAA Compliant
  Additional Details
Price: $1,124.00
MSRP: $1,450.00
Mfr Part #: XNO-A8084R
SHI Part #: 50294533
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionHanwha Vision WiseNet X XNO-A8084R - Network surveillance camera - PTRZ - bullet - outdoor - color (Day&Night) - 5 MP - 2560 x 1920 - motorized - audio - USB - GbE - MJPEG, H.264, H.265 - PoE Class 3 - TAA Compliant
ManufacturerHANWHA VISION
MSRP$1,450.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth27.66 cm
Dimensions & Weight / Height9.34 cm
Dimensions & Weight / Weight1.63 kg
Dimensions & Weight / Width9.34 cm
Header / BrandHanwha Vision
Miscellaneous / Product ColorWhite
Packaged Quantity1
Camera
Digital Video Capture Resolution2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Digital Video FormatMJPEG, H.264, H.265
Exposure Range2 sec - 1/30000 sec
Features60Hz frame rate, 350° rotation, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, WiseNR II, Image Stabilization, Defog, dynamic privacy masking, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), image flip, image mirror, Hallway View, Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, gender recognition, clothes color detection, age recognition, mask detection, glasses detection, vehicle color recognition, Virtual Line detection, Line Crossing Detection, Directional Detection, loitering detection, intrusion detection, entrance / exit detection, appearing / disappearing detection, social distancing detection, Defocus Detection, Tampering detection, shock detection, people counting, vehicle counting, Crowd Density, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Constant Bitrate (CBR), Variable Bitrate (VBR), WiseStream support, Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, aluminum housing, hard-coated window, dual NPU architecture, alarm notifications, color identification, electronic shutter, Best Shot Selector (BSS), Smart Codec
Flash Memory8 GB
Frame Rate (max)30 frames per second
Infrared Distance40 m
Infrared LEDsYes
Max Digital Video Resolution2560 x 1920
Minimum Illumination
  • 0.04 lux - color - F1.3 - 30 IRE - shutter 1/30 sec
  • 0.004 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec
  • 0 lux - B&W - infrared LEDs on
Motion DetectionYes
RAM4 GB
TypeColor - Day&Night - pan / tilt / roll / zoom - outdoor
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)0 - 100% (condensing)
Expansion / Connectivity
Encryption AlgorithmSTARTTLS, EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2
Ports
  • USB - 24-pin USB-C
  • 2 x alarm I/O
  • Audio line-in/microphone
  • Audio line out
  • LAN/power - RJ-45
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.711, PCM, G.726, ADPCM, AAC-LC, OPUS
Audio SupportYes
Connectivity TechnologyWired
Depth27.66 cm
Device TypeNetwork surveillance camera
Form FactorBullet
Height9.34 cm
Weight1.63 kg
Width9.34 cm
Image Sensor
Type5 MP CMOS 1/2.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, Syslog, SUNAPI
VideoUSB
Lens Construction
Diagonal Field of View (degree)133
Focal Length3.3 mm - 9.3 mm
Focus AdjustmentManual
Horizontal Field of View (degree)99
Lens IrisF/1.3 (wide) / f/2.3 (telephoto) (P-Iris)
Min Focus Distance50 cm
Optical Zoom2.8 x
TypeMotorized zoom
Vertical Field of View (degree)71
Miscellaneous
ColorWhite, RAL 9003
Compliant StandardsFCC, cULus, EAC, NDAA, IEEE 802.1x, ETSI EN 303 645, FIPS 140-3 Level 3, CC EAL6+, NEMA TS-2 (2.2.7.2-8.2.2.8, 2.2.9), IEEE 802.3af, ROHS Directive 2011/65/EU, EN/IEC 63000:2018, REACH 1907/2006/CE, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 62676-4
TAA CompliantYes
Panning
Range (degree)0 to 350
Power
Power Device9.4 watt
Power RequirementsPoE Class 3
Tilting
Range (degree)0 to -90
