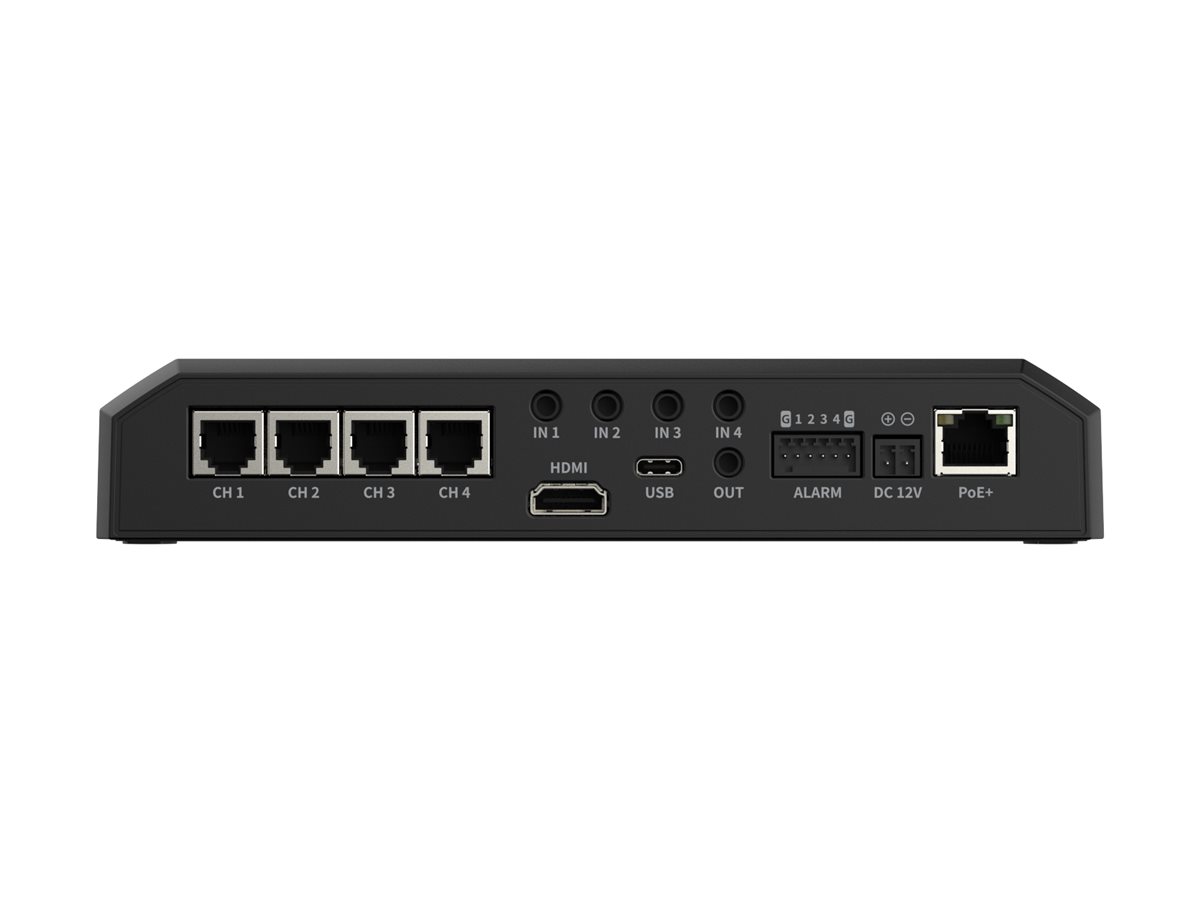

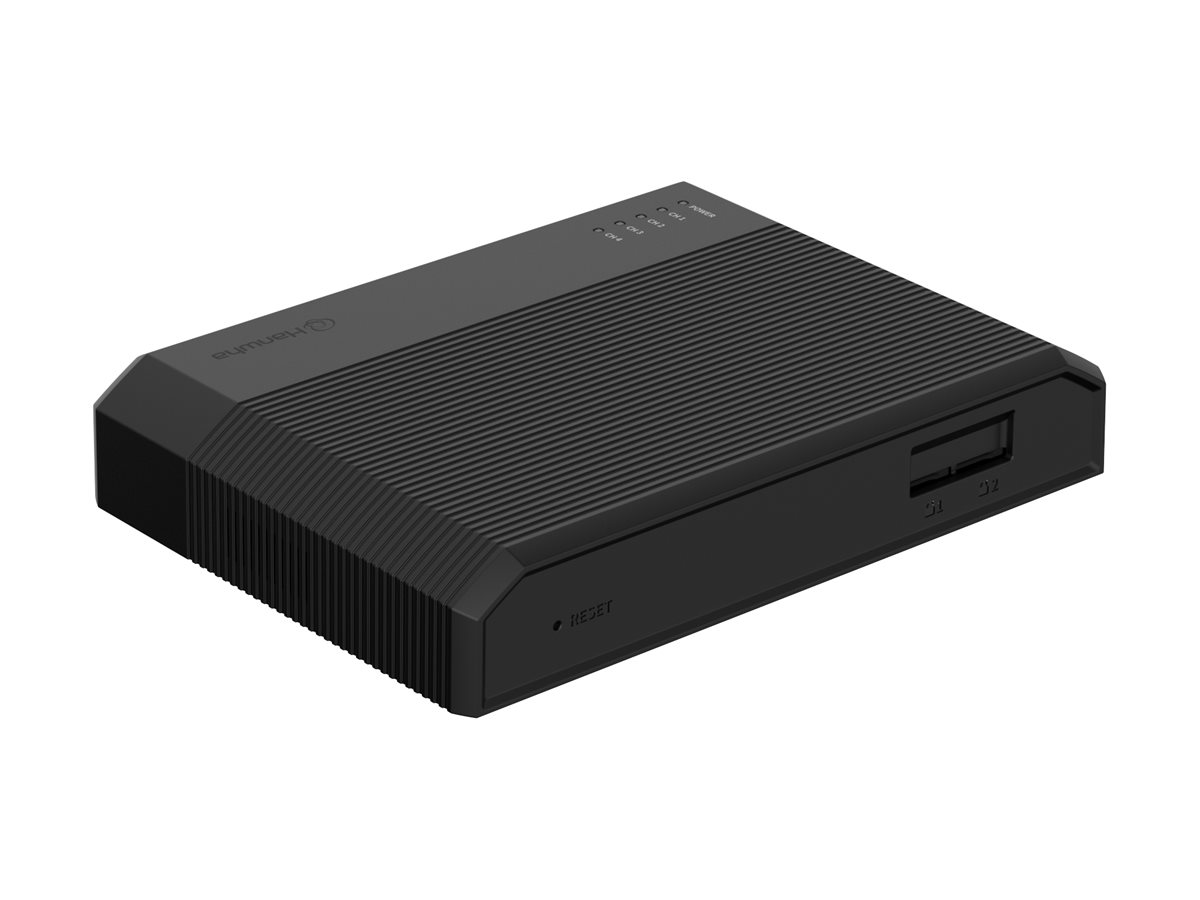

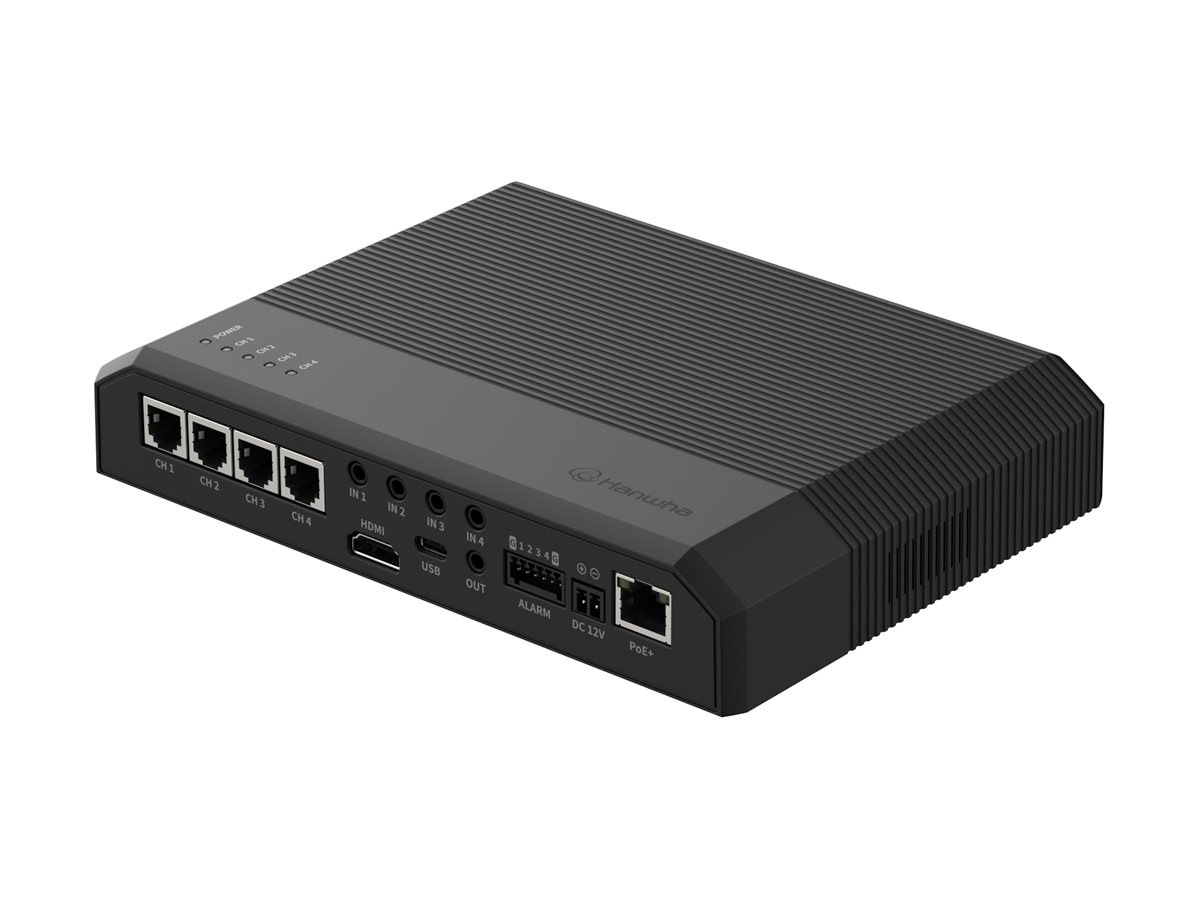

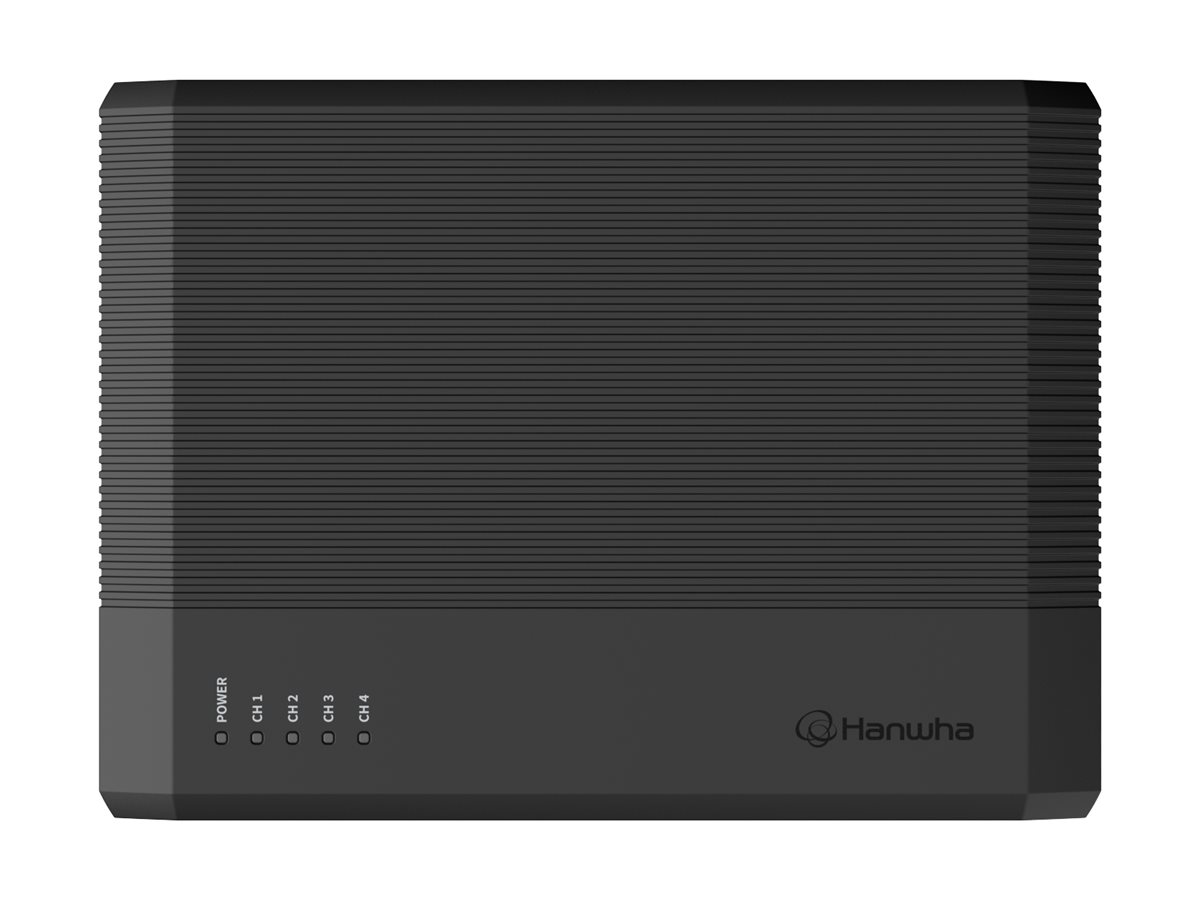

Hanwha Vision P Series PNM-C20000QB
MSRP$1,600.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision P Series PNM-C20000QB
- Network surveillance camera (no lens)
- color (Day&Night)
- 4x2MP
- 2592 x 1944
- audio
- HDMI, USB
- GbE
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,600.00 |
| Mfr Part #: | PNM-C20000QB |
| SHI Part #: | 50305720 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Hanwha Vision P Series PNM-C20000QB - Network surveillance camera (no lens) - color (Day&Night) - 4x2MP - 2592 x 1944 - audio - HDMI, USB - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE Plus Class 4 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,600.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.6 cm |
| Dimensions & Weight / Height | 3.7 cm |
| Dimensions & Weight / Weight | 1.015 kg |
| Dimensions & Weight / Width | 20 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, shock detection, enter area detection, exit area detection, loitering detection, Directional Detection, intrusion detection, Virtual Line detection, Multicast Streaming, WiseStream support, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), Defog, privacy masking (up to 16 areas), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, plastic housing |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| RAM | 8 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% RH (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, G.711, AAC-LC, ADPCM, PCM |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 14.6 cm |
| Device Type | Network surveillance camera (no lens) |
| Height | 3.7 cm |
| Weight | 1.015 kg |
| Width | 20 cm |
| Image Sensor | |
| Type | 4x2MP |
| Interfaces | |
| Alarm Inputs Qty | 4 |
| Alarm Outputs Qty | 4 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SSM, EAP, PIM-SM, LLDP |
| Video | HDMI, USB |
| Miscellaneous | |
| Color | Black, RAL 9005 |
| Compliant Standards | EAC, FCC, cULus, NDAA, FIPS 140-3 Level 3, CC EAL6+, FCC 47 CFR Part 15 B Class A, UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR32, RCM, UL 62368-1, IEC 62471, RoHS, EN 63000:2018, REACH |
| Power | |
| Power Device | 25.5 Watt |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
