Hardware Power Management UPS-Battery Backups
Add to My Favorites
UPS-Battery Backups

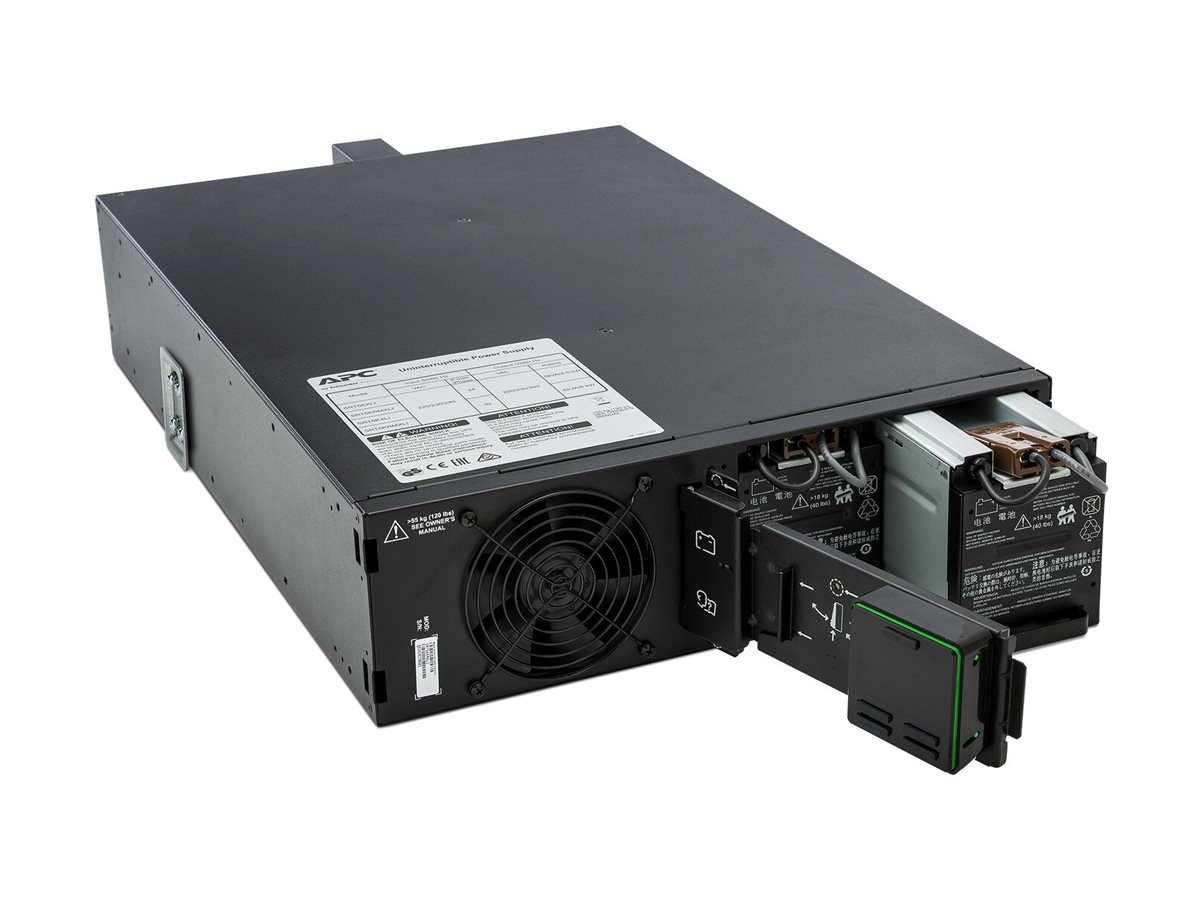

APC Smart-UPS On-Line

MSRP$10,725.00
$8,021.00
APC Smart-UPS On-Line
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable / external) (high density)
  • AC 208 V
  • 4800 kW
  • 5400 VA
  • 1-phase
APC Smart-UPS On-Line
  • UPS (rack-mountable / external) (high density)
  • AC 208 V
  • 4800 kW
  • 5400 VA
  • 1-phase
  • USB, serial, Ethernet 10/100/1000
  • output connectors: 4
  • 3U
  • 3.05 m cord
  • black
  • TAA Compliant
  Additional Details
Price: $8,021.00
MSRP: $10,725.00
Mfr Part #: SRT5KRMXLT-A
SHI Part #: 50389686
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: APC by Schneider Electric
Product Type: Hardware
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS On-Line - UPS (rack-mountable / external) (high density) - AC 208 V - 4800 kW - 5400 VA - 1-phase - USB, serial, Ethernet 10/100/1000 - output connectors: 4 - 3U - 3.05 m cord - black - TAA Compliant
ManufacturerAPC by Schneider Electric
MSRP$10,725.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth71.9 cm
Dimensions & Weight / Height13 cm
Dimensions & Weight / Weight55.79 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100/1000
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty4
Power Device / Power Capacity (VA)5400 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage Required
  • AC 208 V
  • AC 208/240 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Recharge Time1.5 hours
Run Time (Up To)3.27 min at full load
TechnologyLead acid
TypeHigh density
Voltage Provided192 V
Dimensions & Weight
Depth71.9 cm
Height13 cm
Weight55.79 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth96 cm
Shipping Height33 cm
Shipping Weight68.04 kg
Shipping Width61 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x serial - RJ-45
  • 1 x universal I/O port - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x USB - 4 pin USB Type A
  • 1 x console - Micro-USB Type B
  • 1 x management (Gigabit Ethernet) - RJ-45
  • 1 x EPO (emergency power off)
General
ColorBlack
Cord Length3.05 m
Device TypeUPS - rack-mountable / external
Height (Rack Units)3U
Manufacturer Warranty
Service & Support
  • Limited warranty - replace or repair - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables IncludedPower cable 3.05 m
Compliant StandardsBAA, NOM, IP20, RoHS, REACH
FeaturesHorizontal mount, 1047 BTU/h heat dissipation, alarm, PCE package, Energy Management System with card, auto-sensing, internal bypass, emergency power off, LCD display
Included AccessoriesUPS Network Management Card
Rack Mounting KitIncluded
TAA CompliantYes
Networking
Remote Management InterfaceUSB, serial, Ethernet 10/100/1000
Power Device
Efficiency92.4% at 25% Load, 94.2% at 50% Load, 94.3% at 100% Load, 94.5% at 75% Load
Frequency Provided50/60 Hz ± 3Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power NEMA L6-30P
Input VoltageAC 208 V
Input Wiring1-phase
Output VoltageAC 208 V 50/60 Hz
Output WaveformPure sine wave
Power Capacity4800 kW / 5400 VA

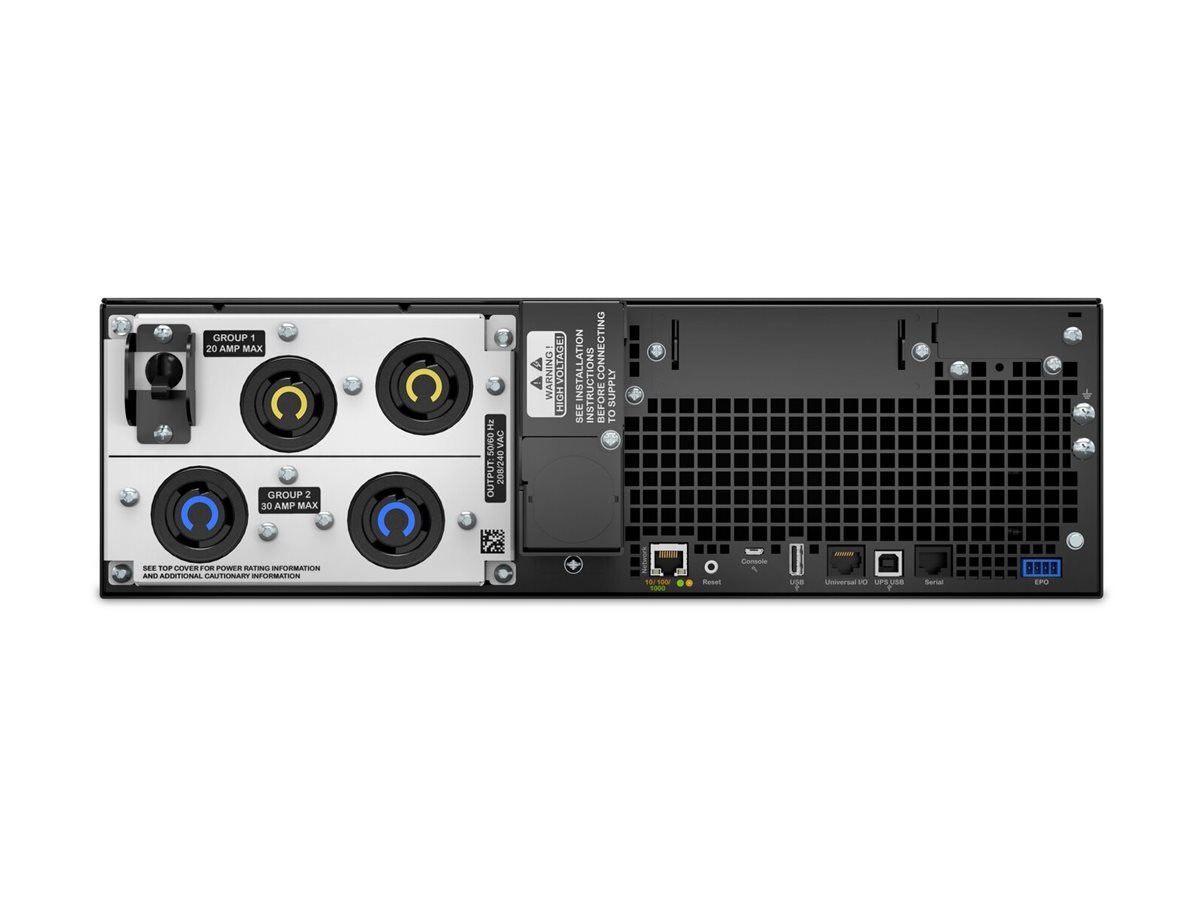

Power Output Connectors Details
  • 2 x power NEMA L6-20R
  • 2 x power NEMA L6-30R
Surge Energy Rating480 Joules
Surge SuppressionYes
Total Harmonic Distortion (THD)2 %
UPS TechnologyOn-line
Sustainability Information
ENERGY STARYes
