Hardware Power Management UPS-Battery Backups
Add to My Favorites
UPS-Battery Backups

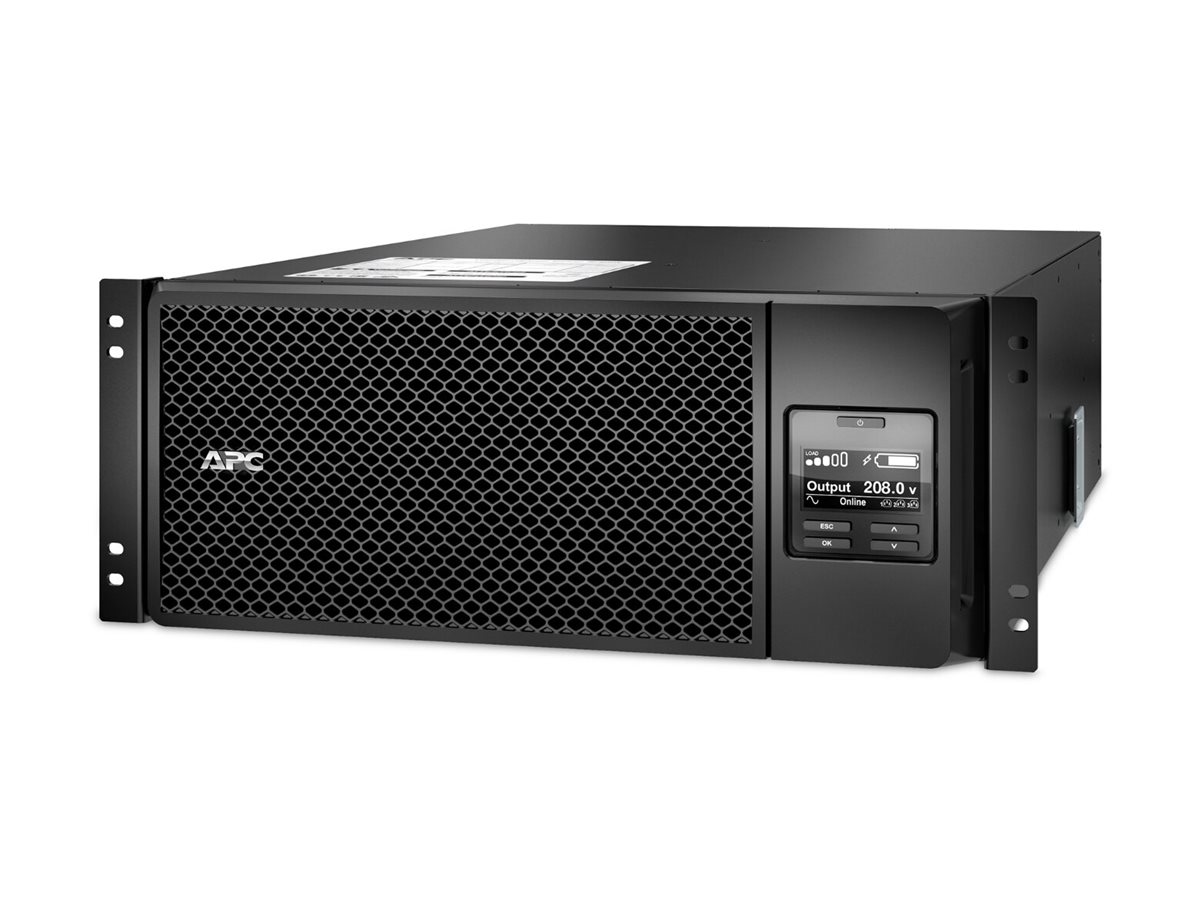

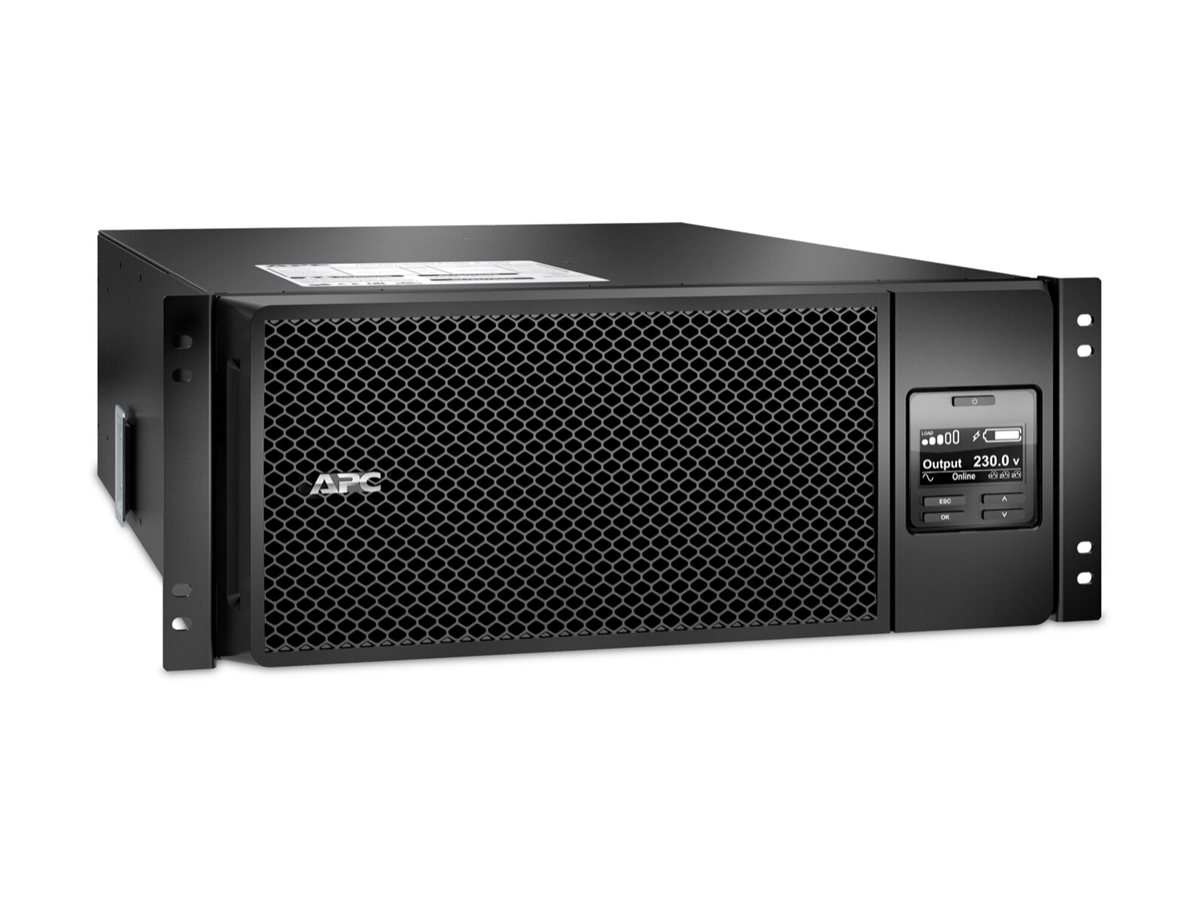

APC Smart-UPS On-Line

MSRP$12,285.00
$9,183.00
APC Smart-UPS On-Line
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable / external) (high density)
  • 2x L6-20R + 3x L6-30R NEMA outlets, Network Card+SmartSlot, extended runtime, with rail kit
  • AC 208 V
  • 6000 kW
  • 6000 VA
APC Smart-UPS On-Line
  • UPS (rack-mountable / external) (high density)
  • 2x L6-20R + 3x L6-30R NEMA outlets, Network Card+SmartSlot, extended runtime, with rail kit
  • AC 208 V
  • 6000 kW
  • 6000 VA
  • 1-phase
  • USB, serial, Ethernet 10/100/1000
  • output connectors: 5
  • 4U
  • black
  • APC Take-Back
  • TAA Compliant
  Additional Details
Price: $9,183.00
MSRP: $12,285.00
Mfr Part #: SRT6KRMXLT-A
SHI Part #: 50389687
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: APC by Schneider Electric
Product Type: Hardware
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS On-Line - UPS (rack-mountable / external) (high density) - 2x L6-20R + 3x L6-30R NEMA outlets, Network Card+SmartSlot, extended runtime, with rail kit - AC 208 V - 6000 kW - 6000 VA - 1-phase - USB, serial, Ethernet 10/100/1000 - output connectors: 5 - 4U - black - APC Take-Back - TAA Compliant
ManufacturerAPC by Schneider Electric
MSRP$12,285.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth71.9 cm
Dimensions & Weight / Height17.4 cm
Dimensions & Weight / Weight61.23 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100/1000
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty5
Power Device / Power Capacity (VA)6000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage Required
  • AC 208 V
  • AC 208/240 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Recharge Time1.5 hours
Run Time (Up To)
  • 2.17 min at full load
  • 8.16 min at half load
TechnologyLead acid
TypeHigh density
Voltage Provided192 V
Dimensions & Weight
Depth71.9 cm
Height17.4 cm
Weight61.23 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth96 cm
Shipping Height37 cm
Shipping Weight68.04 kg
Shipping Width61 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x SmartSlot
Interfaces
  • 1 x serial - RJ-45
  • 1 x universal I/O port - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x USB - 4 pin USB Type A
  • 1 x console - Micro-USB Type B
  • 1 x management (Gigabit Ethernet) - RJ-45
  • 1 x EPO (emergency power off)
General
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)4U
Manufacturer Warranty
Service & Support
  • Limited warranty - replace or repair - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables IncludedUSB cable
Compliant StandardsFCC Part 15 A, NOM, UL 1778, BAA, IP20, RoHS, REACH
FeaturesHorizontal mount, alarm, PCE package, 1402 BTU/h heat dissipation, Energy Management System with card, auto-sensing, internal bypass, emergency power off, LCD display
Included AccessoriesUPS Network Management Card
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
TAA CompliantYes
Networking
Remote Management InterfaceUSB, serial, Ethernet 10/100/1000
Power Device
Efficiency93% at 25% Load, 94.4% at 100% Load, 94.5% at 50% Load, 94.6% at 75% Load
Frequency Provided50/60 Hz ± 3Hz
Frequency Required40 - 70 Hz
Input Connectors1 x hardwire 3-wire (2P + E)
Input VoltageAC 208 V
Input Wiring1-phase
Output VoltageAC 208 V 50/60 Hz
Output WaveformPure sine wave
Power Capacity6000 kW / 6000 VA
Power Output Connectors Details
  • 2 x power NEMA L6-20R
  • 3 x power NEMA L6-30R
Surge Energy Rating480 Joules
Surge SuppressionYes
Total Harmonic Distortion (THD)2 %
UPS TechnologyOn-line
Sustainability Information
ENERGY STARYes
