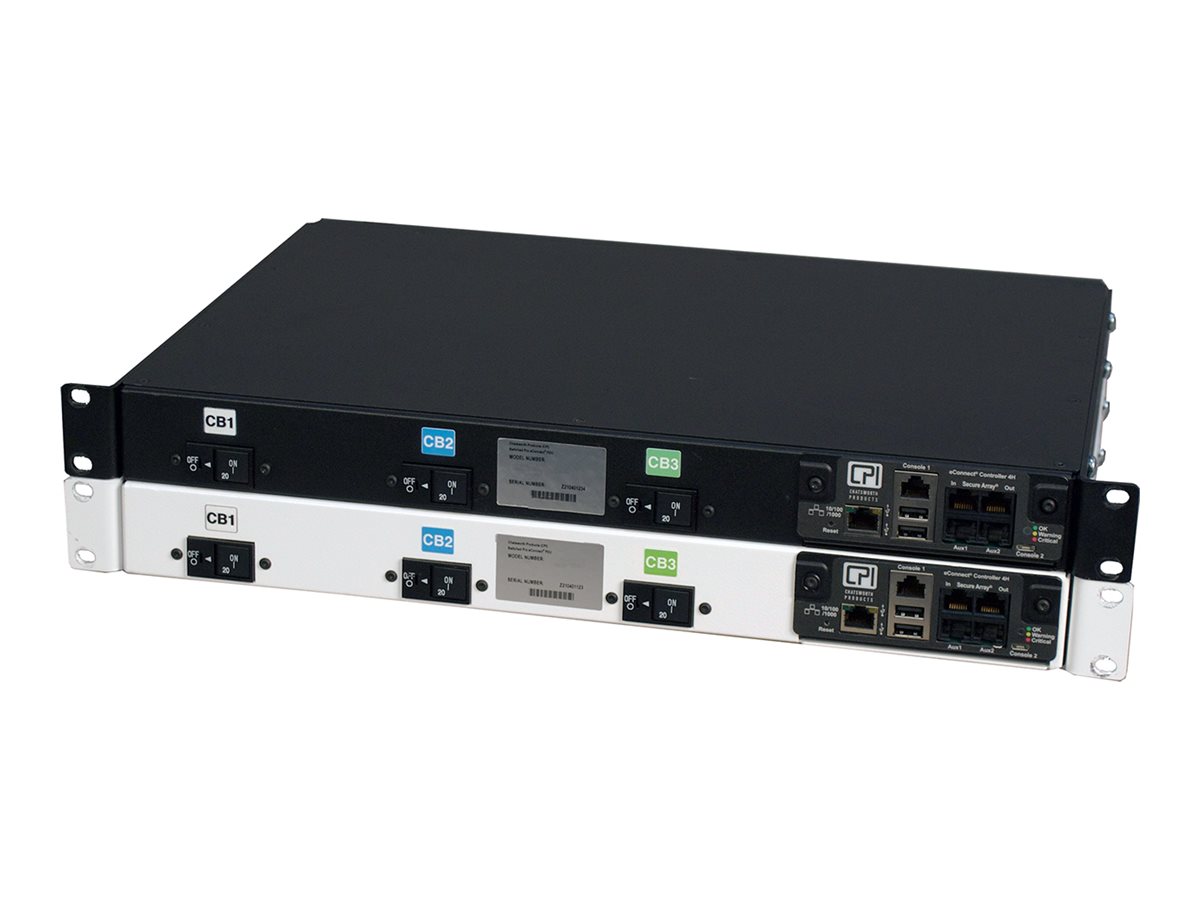

CPI Switched Pro eConnect PDU
MSRP$1,929.09
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CPI Switched Pro eConnect PDU
- Power distribution unit (rack-mountable)
- horizontal
- AC 208 V
- 5 kW
- 1-phase
- serial, Ethernet 10/100/1000, USB
- input: NEMA L6-30P
- output connectors: 24 (power IEC 60320 C13)
- 2U
- 19"
- 3 m cord
- North America
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,929.09 |
| Mfr Part #: | EA-6404-C |
| SHI Part #: | 50417950 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched Pro eConnect PDU - Power distribution unit (rack-mountable) - horizontal - AC 208 V - 5 kW - 1-phase - serial, Ethernet 10/100/1000, USB - input: NEMA L6-30P - output connectors: 24 (power IEC 60320 C13) - 2U - 19" - 3 m cord - North America - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $1,929.09 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.48 cm |
| Dimensions & Weight / Height | 8.874 cm |
| Dimensions & Weight / Weight | 10.4 kg |
| Dimensions & Weight / Width | 43.1 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 30.48 cm |
| Height | 8.874 cm |
| Weight | 10.4 kg |
| Width | 43.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | North America |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 3 years |
| Miscellaneous | |
| Cables Included | AC input cable 3 m |
| Compliant Standards | IEEE 802.1x, EN55022, FCC Part 15 A, RoHS, IEC/UL 62368, NEMKO, UL 489, cULus, WEEE |
| Features | Reset button, for indoor use, password security, low-profile, horizontal orientation, replaceable controller, LCD display, locking outlets, environmental sensor ready, Secure Array technology, PDU Linking, LED indicators, Branch Circuit Protection, Branch Current Monitoring, power factor meter, voltage monitoring, Zero Touch Provisioning (ZTP), flash upgradeable, Hydraulic-Magnetic breakers, outlet grouping, color-coded labels |
| Included Accessories | Grounding kit cable |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Serial, Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, HTTP, HTTPS, CLI, RESTful API, DHCP, LDAP, RADIUS, SSH |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5 kW |
| Power Output Connectors Details | 24 x power IEC 60320 C13 - 208 V 10 A |
