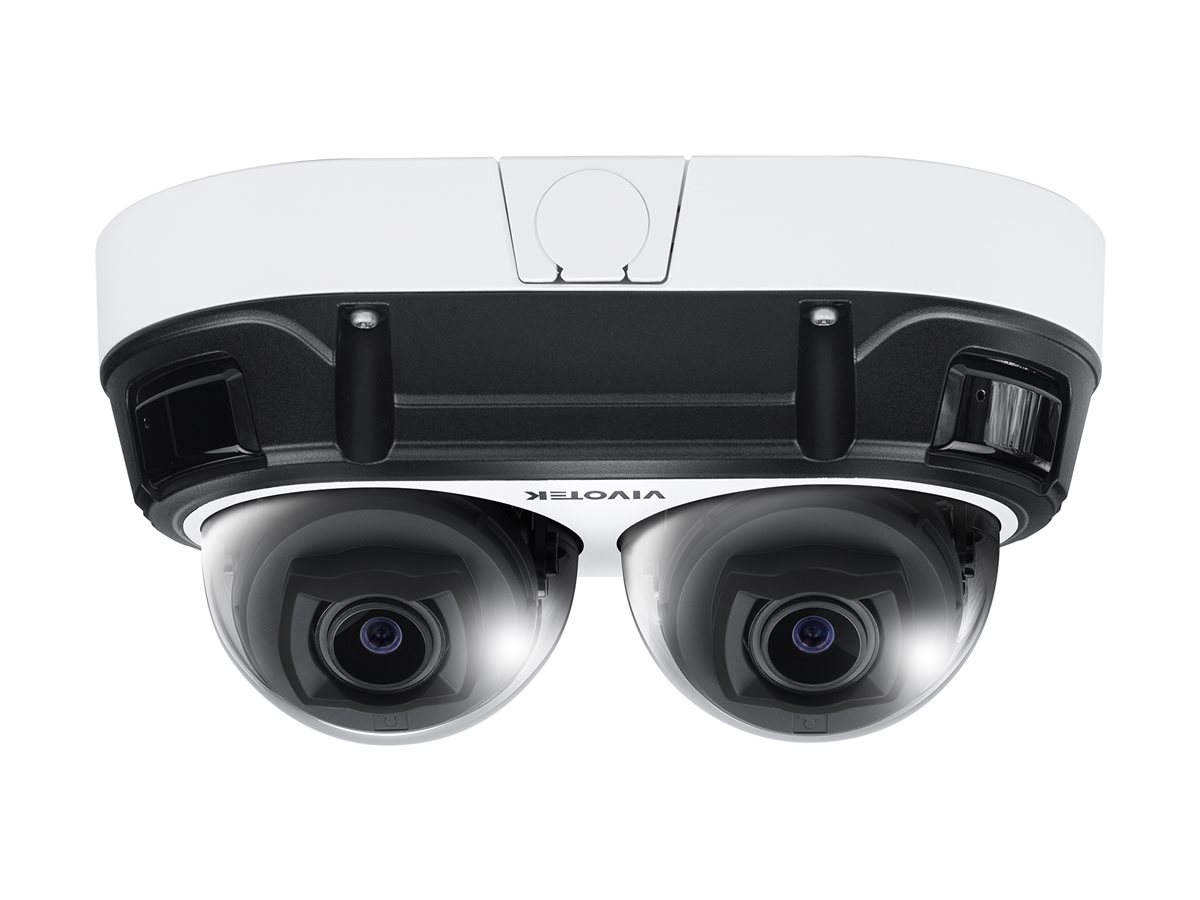

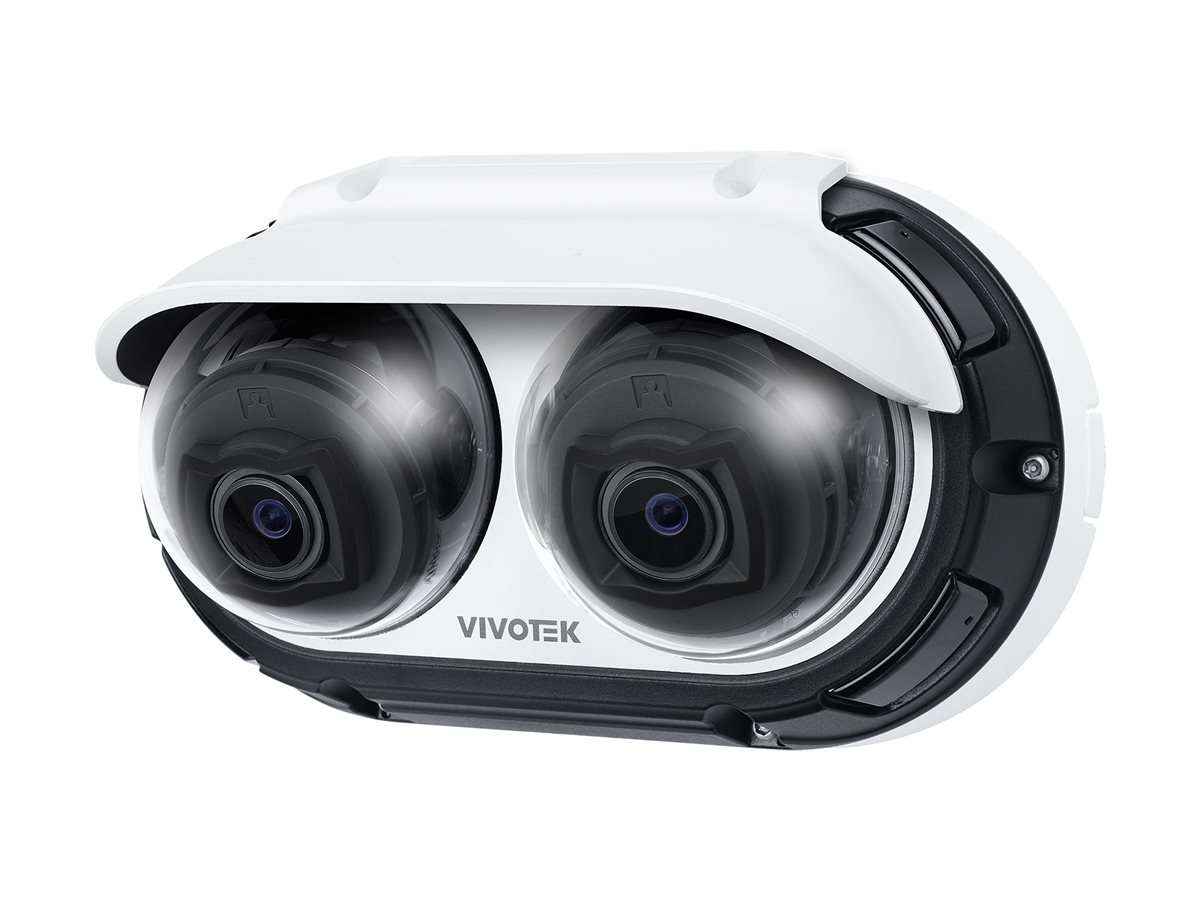

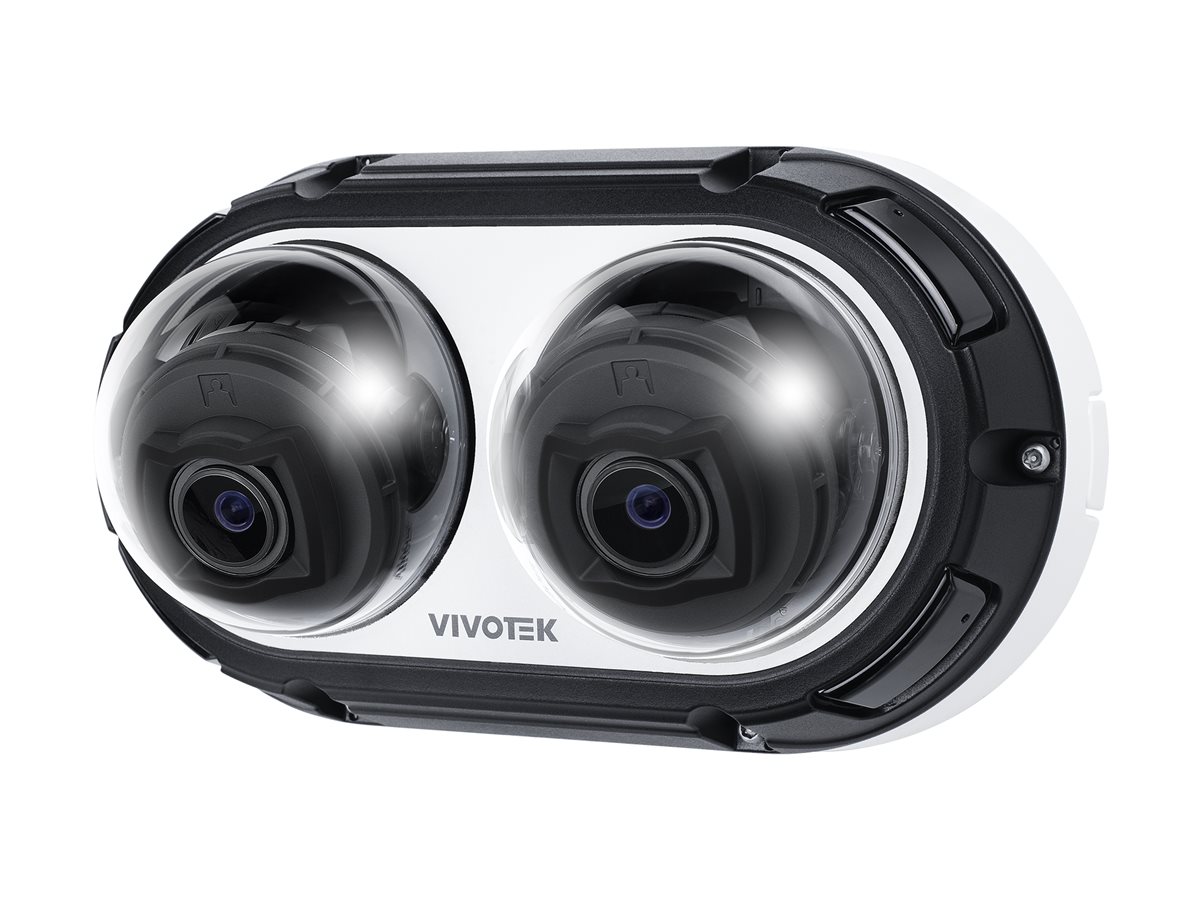

Vivotek V Series MA9312-EHTV
MSRP$1,915.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vivotek V Series MA9312-EHTV
- Network panoramic camera
- multi-sensor
- dome
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 2 x 5 MP
- 3840 x 2160
- 4K
- motorized
- audio
- GbE
- MJPEG, H.264, H.265
- PoE Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,915.00 |
| Mfr Part #: | MA9312-EHTV |
| SHI Part #: | 50465939 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek V Series MA9312-EHTV - Network panoramic camera - multi-sensor - dome - outdoor - vandal / weatherproof - color (Day&Night) - 2 x 5 MP - 3840 x 2160 - 4K - motorized - audio - GbE - MJPEG, H.264, H.265 - PoE Class 4 |
| Manufacturer | Vivotek |
| MSRP | $1,915.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.5 cm |
| Dimensions & Weight / Height | 11.2 cm |
| Dimensions & Weight / Weight | 1.55 kg |
| Dimensions & Weight / Width | 23 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 48 |
| Exposure Range | 1/30 sec - 1/32000 sec |
| Features | Time stamp overlay, mirror lock, rotation mode, anti-overexposure, Smart VCA, white balance, brightness control, contrast control, saturation control, sharpening, gamma control, Defog, 3D digital noise reduction (DNR), scene modes, deblur, Backlight Compensation (BLC), Highlight Compensation (HLC), exposure control, Gain Control, IRIS Priority mode, AE speed adjustment, Wide Dynamic Range (WDR), Privacy Mask Function, Pixel Calculator, secure boot, digest authentication, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, People Detection, Vehicle Detection, gender recognition, clothes color detection, motor vehicle detection, non-motor vehicle detection, deep learning function, Smart Motion Detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection, Parking Detection, Smart IR III, ePTZ |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 20 m |
| Infrared LEDs | 4 |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - multi-sensor - outdoor - vandal / weatherproof |
| Video Modes | 4K |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, G.711, MPEG 2 Audio, AAC-LC |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 13.5 cm |
| Device Type | Network panoramic camera |
| Form Factor | Dome |
| Height | 11.2 cm |
| Weight | 1.55 kg |
| Width | 23 cm |
| Image Sensor | |
| Type | 2 x 5 MP Progressive Scan CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Windows, MacOS |
| Lens Construction | |
| Diagonal Field of View (degree) | 51.8 - 133.9 |
| Focal Length | 4.3 mm - 9.8 mm |
| Focus Adjustment | Motorized, remote |
| Horizontal Field of View (degree) | 45.1 - 110.4 |
| Lens Iris | F/1.6-2.6 (P-Iris) |
| Optical Zoom | 2.3 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 25.4 - 57.9 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN 55032, EN 55035 Class A, UKCA, BS EN 55032:2015+A11:2020 Class A, BS EN 55035:2017 + A11:2020, FCC Part 15 Subpart B, RCM, AS/NZS CISPR32 Class A, VCCI-CISPR 32 Class A, ICES-003 issue 7, UL 62368-1, IEC/EN 62368-1, IEC/EN 62471, NEMA 250 Type 4X, IK10, IP66, IP67, IS 13252, CNS 15936, CNS 15598-1 |
| Included Accessories | Alignment sticker, screw pack, L-shaped wrench, sunshield |
| Panning | |
| Range (degree) | 350 |
| Power | |
| Power Device | 25.5 Watt |
| Power Requirements | PoE Class 4 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
| Software Included | Trend Micro IoT Security (3 years trial) |
| Tilting | |
| Range (degree) | 80 |
