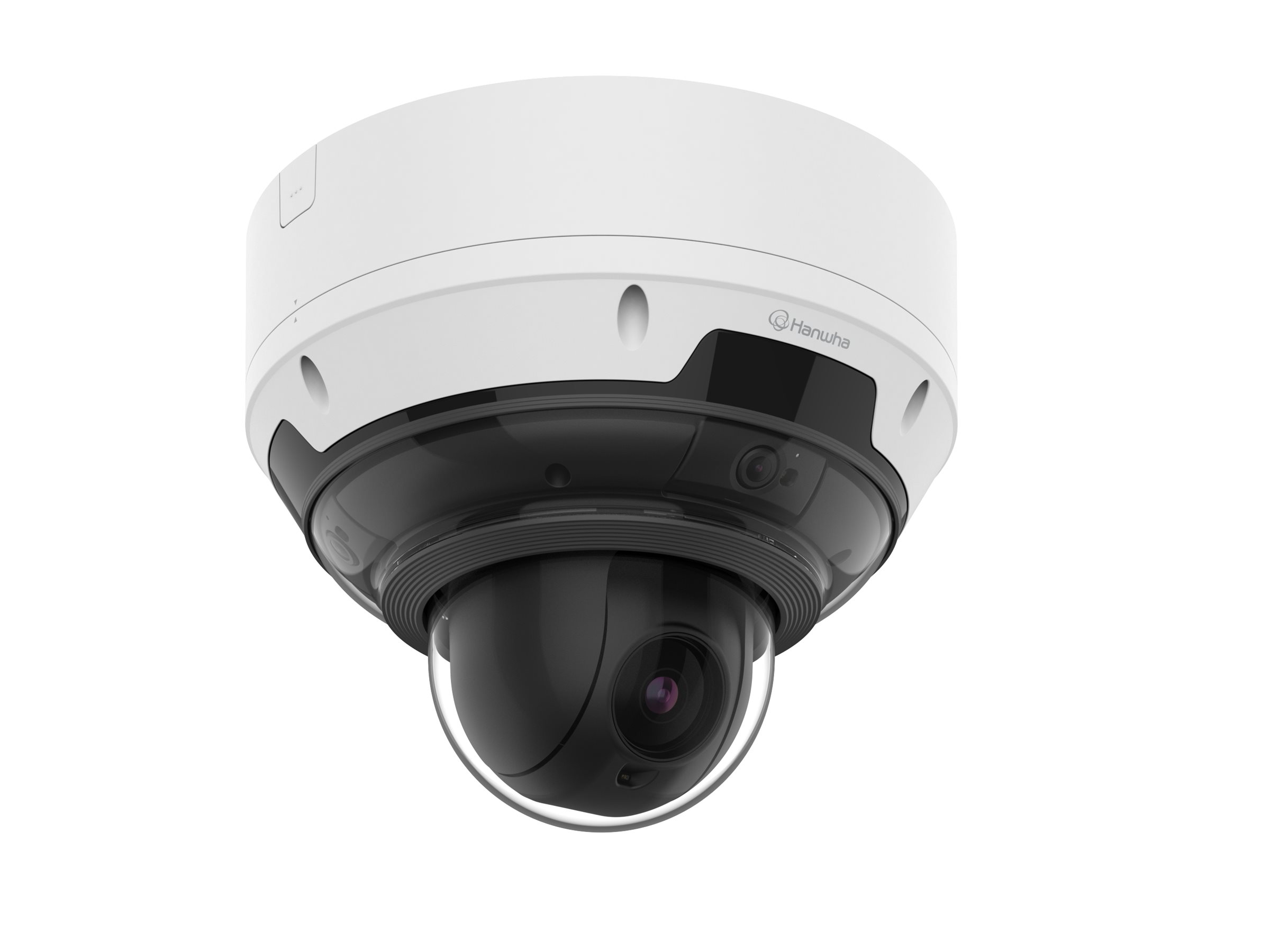

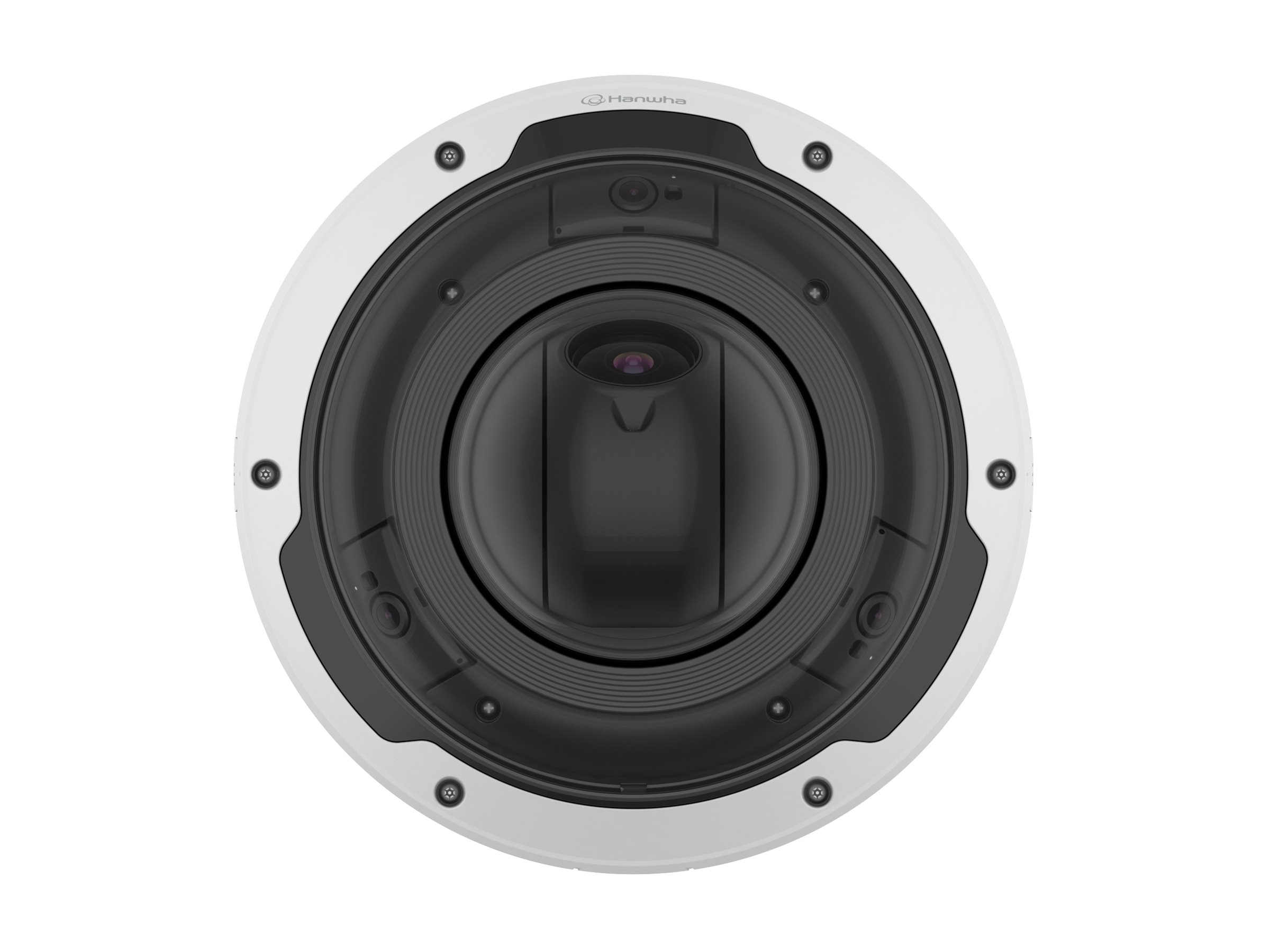

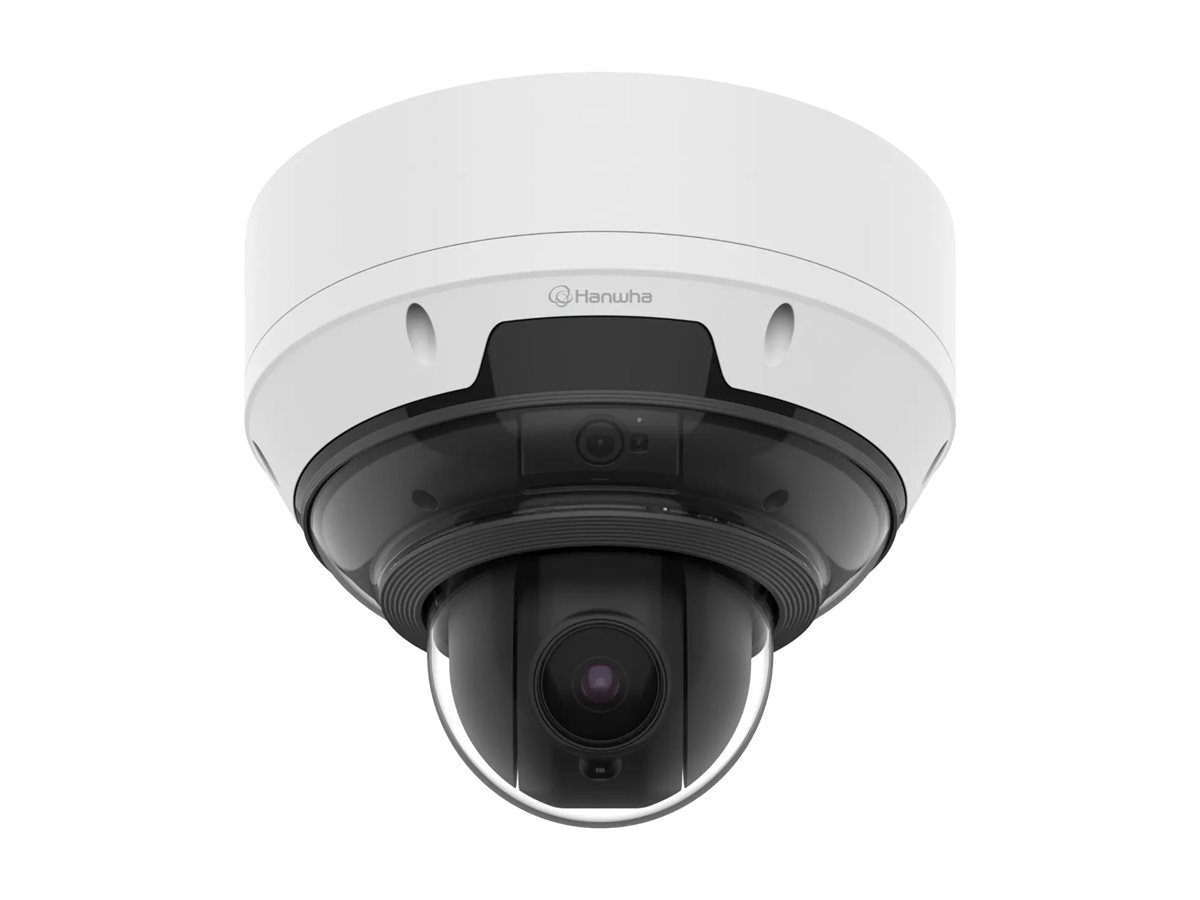

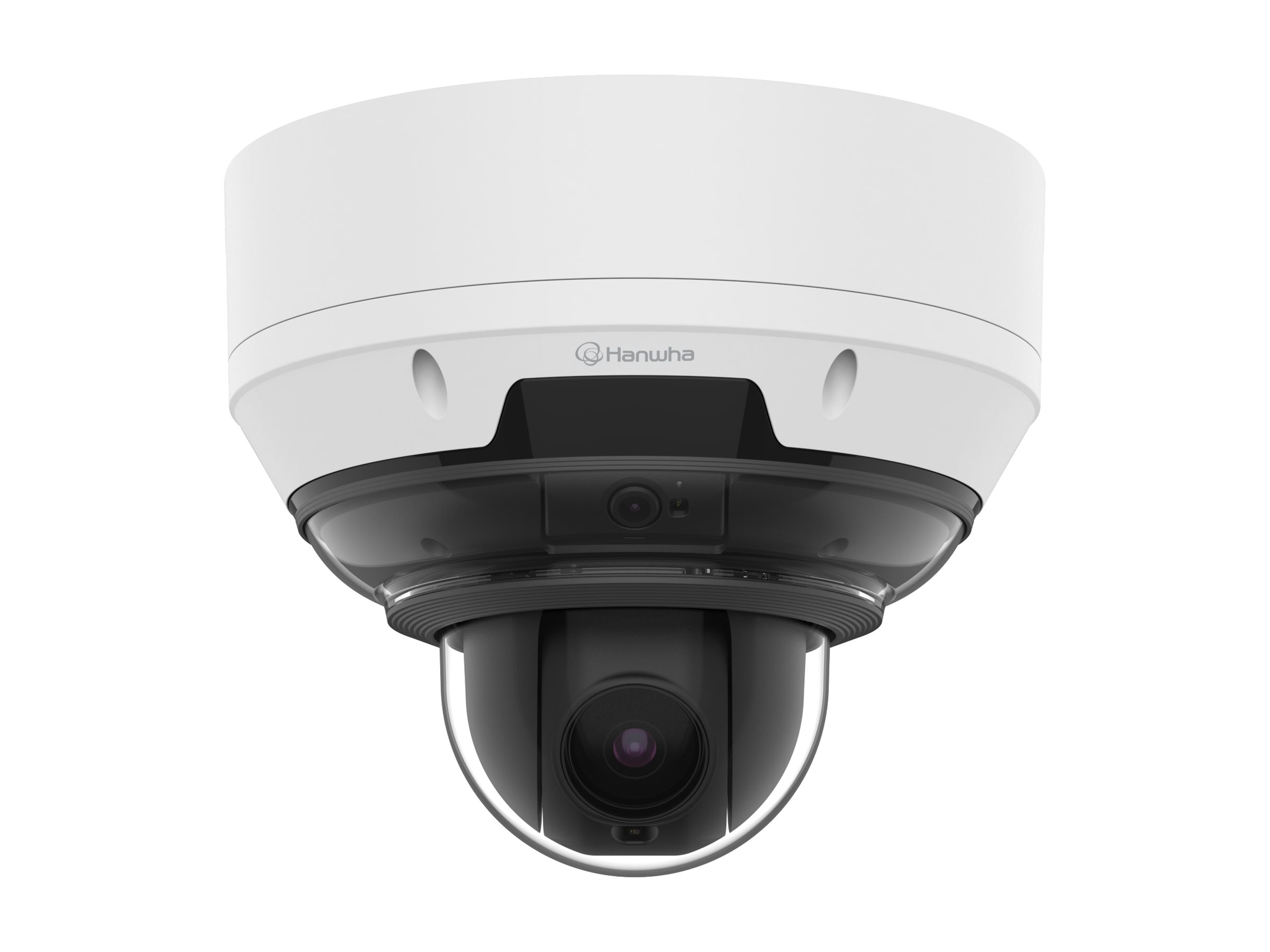

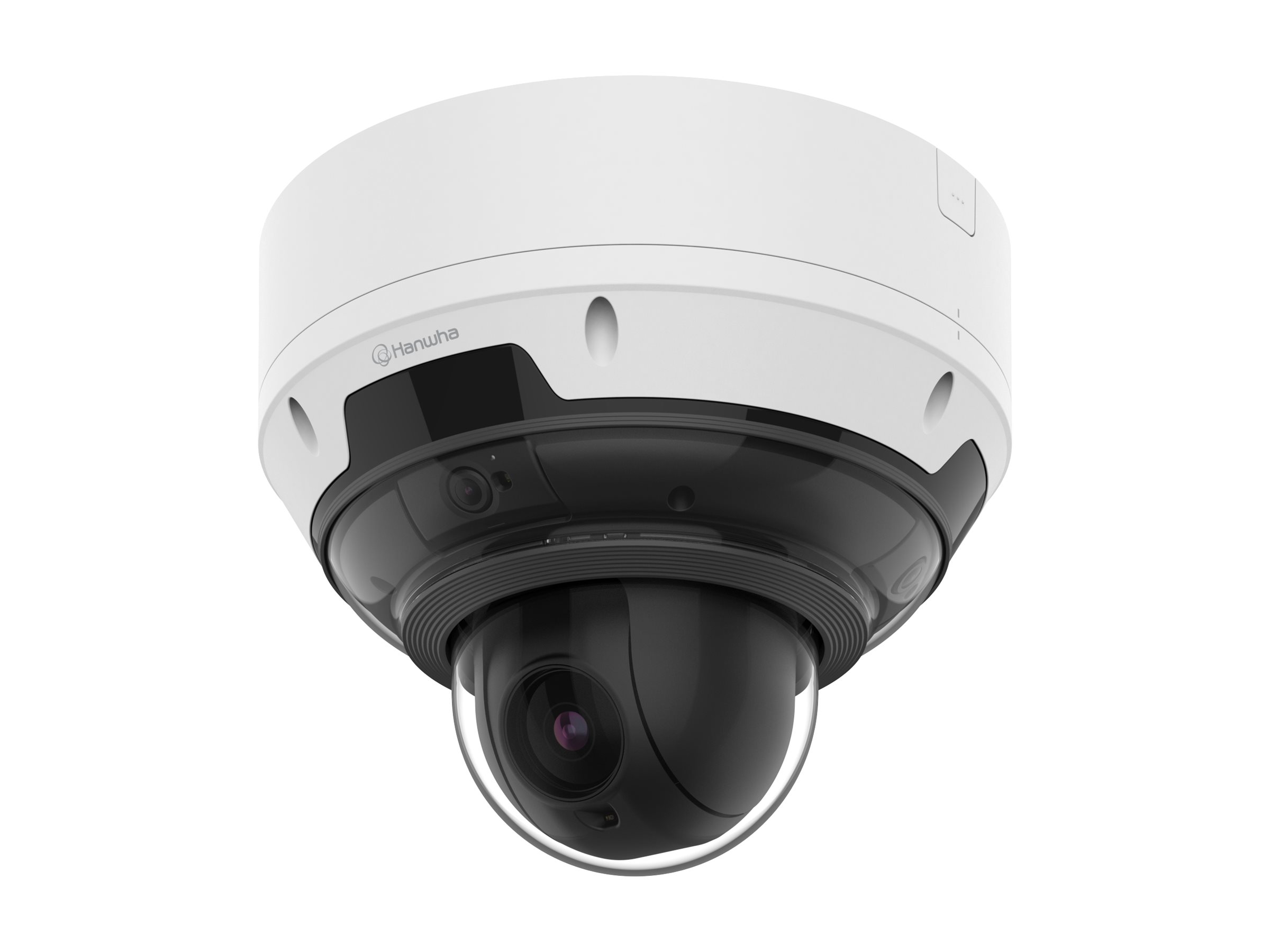

Hanwha Vision WiseNet P PNM-C19183RVTP
MSRP$4,150.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet P PNM-C19183RVTP
- Network surveillance camera
- multi-sensor + pan / tilt
- dome
- outdoor, indoor
- color (Day&Night)
- 5 MP
- 2592 x 1944
- fixed iris
- fixed focal
- audio
- USB
- GbE
- H.265, H.264, MJPEG
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,150.00 |
| Mfr Part #: | PNM-C19183RVTP |
| SHI Part #: | 50467386 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet P PNM-C19183RVTP - Network surveillance camera - multi-sensor + pan / tilt - dome - outdoor, indoor - color (Day&Night) - 5 MP - 2592 x 1944 - fixed iris - fixed focal - audio - USB - GbE - H.265, H.264, MJPEG |
| Manufacturer | HANWHA VISION |
| MSRP | $4,150.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.14 cm |
| Dimensions & Weight / Height | 21.2 cm |
| Dimensions & Weight / Weight | 4.8 kg |
| Dimensions & Weight / Width | 25.14 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | H.265, H.264, MJPEG |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Multi-Directional, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme WDR, Samsung Super Noise Reduction (SSNR) V, WiseNR II, Defog, Privacy Mask Function, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), anti-flicker, face analytics, vehicle analytics, license plate detection, vehicle type classification, vehicle color recognition, clothes color detection, Best Shot Selector (BSS), Object Detection, Virtual Line detection, loitering detection, intrusion detection, enter area detection, Tampering detection, appearing / disappearing detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, alarm notifications, alarm event, e-mail alerts, FTP alerts, WiseStream Smart Codec, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile M) support, secure boot, signed firmware, user authentication, digest authentication, brute force delay protection, Access Control, 2 microSD card slots, aluminum housing, hard-coated dome, Intelligent Video Analysis (IVA), WiseStream III support, object classification, Handover, auto calibration, surge protection, impact resistant |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 15 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 8 GB |
| Type | Color - Day&Night - multi-sensor + pan / tilt - outdoor, indoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% RH (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes: audio through optional I/O box |
| Connectivity Technology | Wired |
| Depth | 25.14 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 21.2 cm |
| Weight | 4.8 kg |
| Width | 25.14 cm |
| Image Sensor | |
| Type | 5 MP 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SUNAPI |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 159 |
| Focal Length | 2.4 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 123 |
| Lens Iris | F/2.0 fixed iris |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 91 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.1x, IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10, PoE++, IEEE 802.3bt Type 3, RoHS 2011/65/EU, IEC/EN 63000, REACH 2006/1907, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, NDAA |
| Power | |
| Power Device | 32 Watt |
