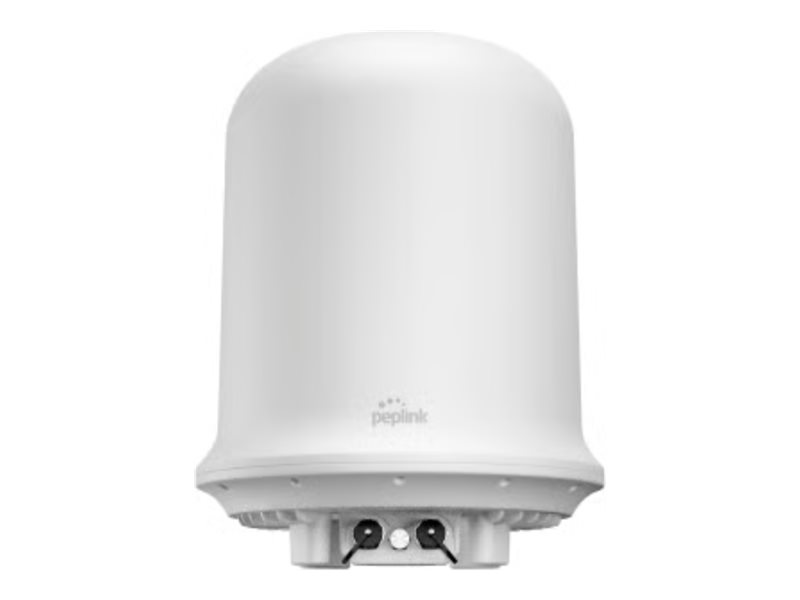

PePLink Dome Pro LR - Wireless router
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
PePLink Dome Pro LR - Wireless router
- WWAN 1GbE, 2.5GbE, 5G, LTE
- Wi-Fi 6
- Dual Band
- 5G, 4G
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | DOM-PRO-LR-5GN-PRM |
| SHI Part #: | 50572617 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | PePLink |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | PePLink Dome Pro LR - Wireless router - WWAN 1GbE, 2.5GbE, 5G, LTE - Wi-Fi 6 - Dual Band - 5G, 4G - TAA Compliant |
| Manufacturer | PePLink |
| MSRP | $7,999.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 37 cm |
| Dimensions & Weight / Height | 47.85 cm |
| Dimensions & Weight / Weight | 6.35 kg |
| Dimensions & Weight / Width | 37 cm |
| Header / Brand | Peplink |
| Header / Country Kits | Global |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology |
|
| Networking / Data Link Protocol |
|
| Networking / Type | Wireless router |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac/ax |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Antenna | |
| Antenna | Internal |
| Communications | |
| Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, 5G n8, LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B3, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71, LTE B8 |
| Cellular Protocol | LTE, 5G |
| Digital Signaling Protocol | H.323, SIP |
| Generation | 5G, 4G |
| Max Transfer Rate | 900 Mbps |
| Type | 2 x wireless cellular modem |
| Dimensions & Weight | |
| Depth | 37 cm |
| Dimensions & Weight Details | Weight 9.98 kg |
| Height | 47.85 cm |
| Weight | 6.35 kg |
| Width | 37 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SIM |
| Interfaces |
|
| General | |
| Authentication Method | X.509 certificates, RADIUS, LDAP |
| Built-in Devices | GPS |
| Capacity | Recommended users: up to 150 |
| Compliant Standards | IEEE 802.3at, IEEE 802.3bt, FCC, RoHS, EN 61000 |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5G, LTE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Device Type | Wireless router |
| Encryption Algorithm | 256-bit AES |
| Features | Long range, Wi-Fi 6 technology, outdoor, PoE, PPPoE support, DHCP server, DHCP reservation, DNS proxy, VLAN support, load balancing, VPN support, SpeedFusion technology, WAN smoothing, PSK, dynamic routing, IPSec VPN client, NAT support, static route, port forwarding, many-to-one port mirroring, One-to-One, UPnP, VRRP support, firewall protection, QoS, PoE+, eSIM support, 2x2 MIMO technology |
| Frequency Band | 2.4 GHz / 5 GHz |
| Max Range Open Space | 40 km |
| Network / Transport Protocol | PPPoE, DHCP, DNS |
| Performance |
|
| Remote Management Protocol | WINS, HTTPS, HTTP, Syslog, SNMP 1, SNMP 3, SNMP 2c |
| Routing Protocol | Static IP routing |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 2 waterproof Ethernet connectors, bolts |
| Localization | Global |
| TAA Compliant | Yes |
| Power | |
| Power Consumption Operational | 24 Watt |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | Pepwave MAX Firmware |
