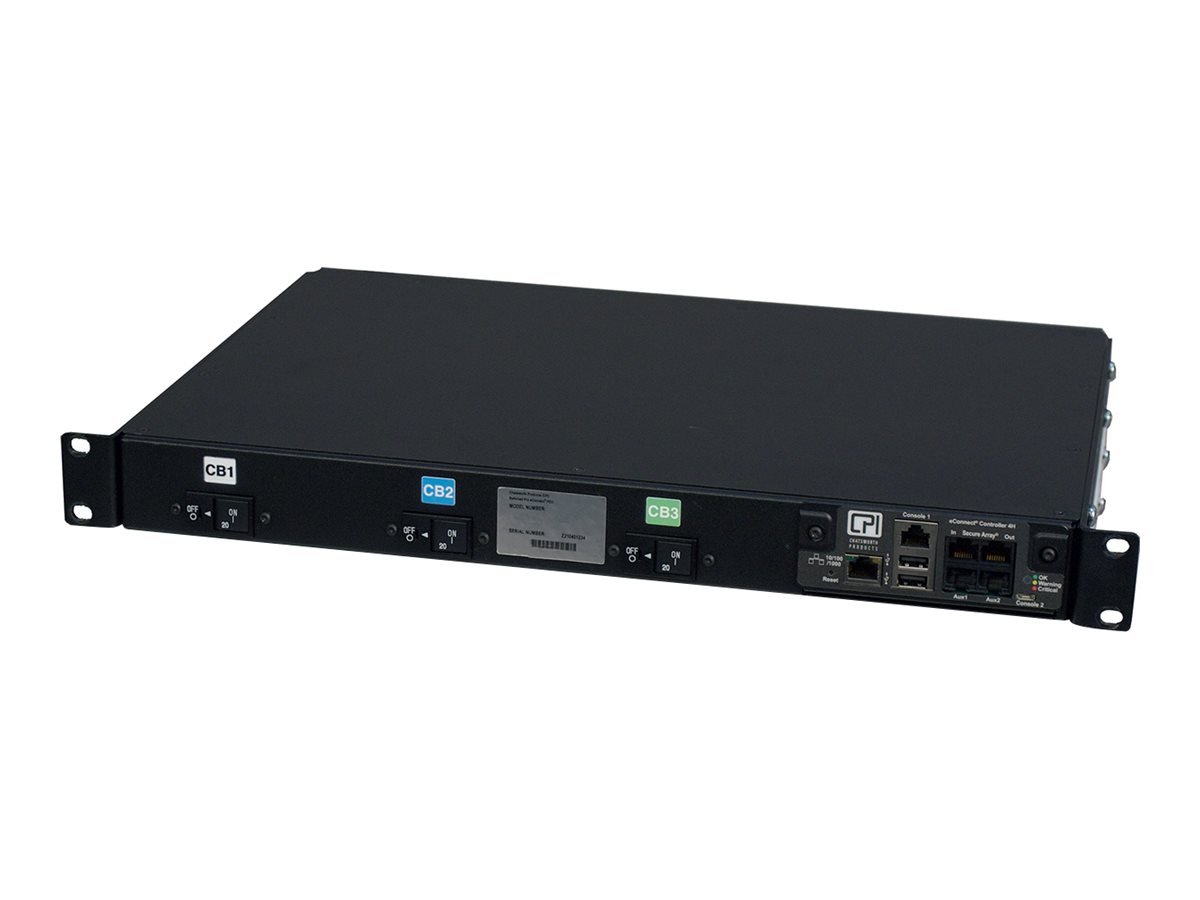

CPI Switched Pro eConnect EA-6274-C
MSRP$1,768.32
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CPI Switched Pro eConnect EA-6274-C
- Power distribution unit (rack-mountable)
- horizontal
- AC 120 V
- 1.9 kW
- 1-phase
- Ethernet 10/100/1000, USB, serial
- input: NEMA L5-20P
- output connectors: 12 (NEMA 5-20R)
- 1U
- 19"
- North America
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,768.32 |
| Mfr Part #: | EA-6274-C |
| SHI Part #: | 50588220 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched Pro eConnect EA-6274-C - Power distribution unit (rack-mountable) - horizontal - AC 120 V - 1.9 kW - 1-phase - Ethernet 10/100/1000, USB, serial - input: NEMA L5-20P - output connectors: 12 (NEMA 5-20R) - 1U - 19" - North America - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $1,768.32 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.48 cm |
| Dimensions & Weight / Height | 4.369 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 43.18 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 30.48 cm |
| Height | 4.369 cm |
| Weight | 8.2 kg |
| Width | 43.18 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | North America |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, IEC 62368, UL 489, FCC Part 15 A, EN55022, RoHS |
| Features | Horizontal orientation, tool-less, for indoor use, password security, environmental sensor ready, electronic lock integration ready, replaceable controller, LED indicators, current meter, voltage monitoring, power measuring, power factor meter, locking outlets, electronic lock integration, simplified load balancing, switched per outlet, firmware upgradable, color-coded labels, grounded, individually switchable sockets, SD-card transfers PDU identity, Branch Circuit Monitoring System (BCMS), Hydraulic-Magnetic breakers, Secure Array technology, bistable latching relays, field-replaceable module, outlet grouping, Zero Touch Provisioning (ZTP) |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, LDAP, RADIUS, HTTPS, CLI, HTTP, SSH, RESTful API |
| Power Device | |
| Input Connectors | 1 x power NEMA L5-20P |
| Input Voltage | AC 120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1.9 kW |
| Power Output Connectors Details | 12 x power NEMA 5-20R 16 A |
