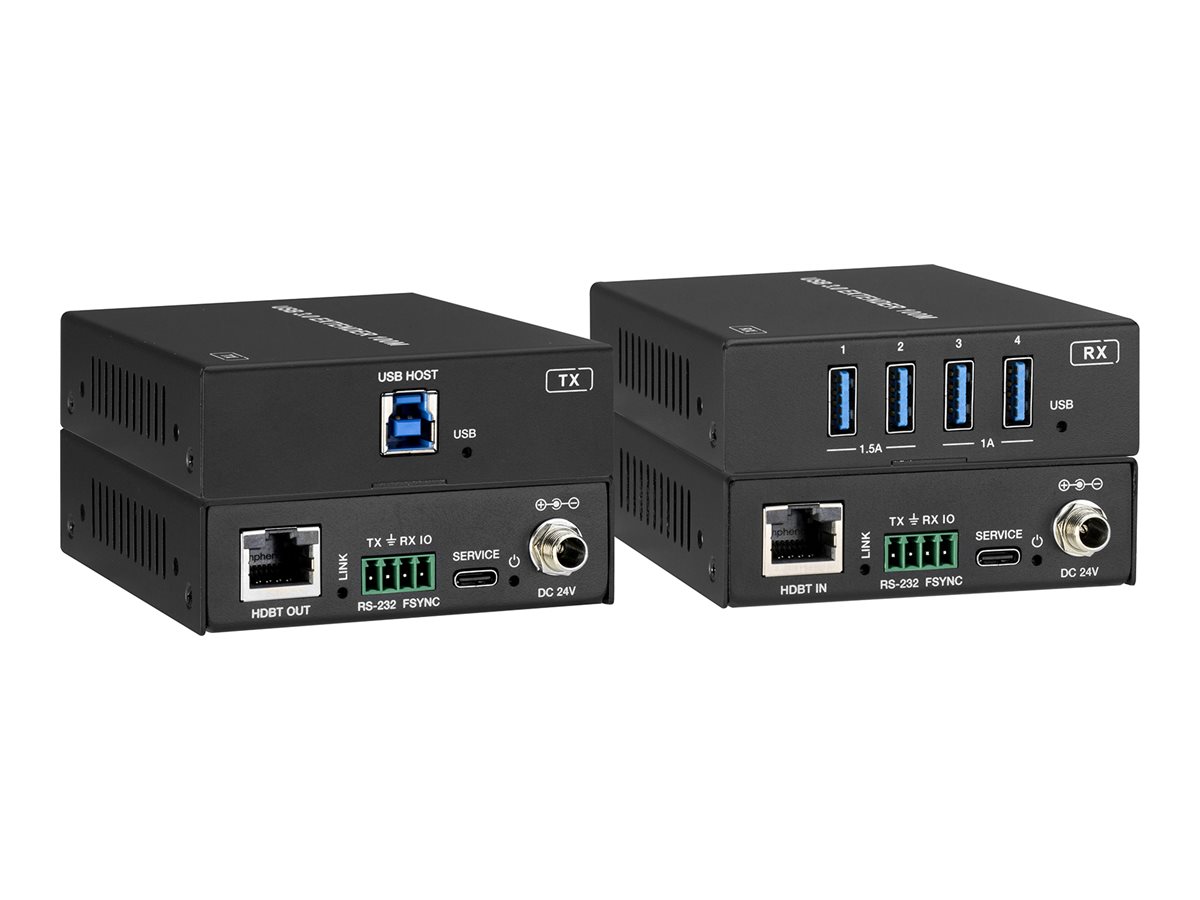

KanexPro - USB extender

MSRP$399.95
$296.00
KanexPro - USB extender
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • USB 3.0
  • over CAT 6
  • up to 100 m
  • for KanexPro RS-232 to Ethernet Control Processor
KanexPro - USB extender
  • USB 3.0
  • over CAT 6
  • up to 100 m
  • for KanexPro RS-232 to Ethernet Control Processor
  Additional Details
Price: $296.00
MSRP: $399.95
Mfr Part #: EXT-USB3100M
SHI Part #: 50638859
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: KanexPro
Product Type: Hardware
General Information
CategorySerial port cards
DescriptionKanexPro - USB extender - USB 3.0 - over CAT 6 - up to 100 m - for KanexPro RS-232 to Ethernet Control Processor
ManufacturerKanexPro
MSRP$399.95
UNSPSC43201559
Main Specifications
Header / BrandKanexPro
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolUSB 3.0
Networking / Data Transfer Rate5 Gbps
Networking / Form FactorExternal
Networking / TypeUSB extender
Packaged Quantity1
Compatibility Information
Designed ForKanexPro RS-232 to Ethernet Control Processor
Dimensions & Weight
Dimensions (WxDxH) / Weight Details
  • Receiver: 8.5 cm x 10 cm x 2.55 cm / 260 g
  • Transmitter: 8.5 cm x 10 cm x 2.55 cm / 253 g
Environmental Parameters
Humidity Range Operating20 - 90% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x USB (host) - Type B female
  • 1 x HDBaseT output (output) - RJ-45 female
  • 1 x RS-232 (transmitter) - 3 pin Phoenix
  • 1 x GPIO (transmitter) - 1 pin Phoenix
  • 1 x USB-C (transmitter)
  • 1 x HDBaseT input (input) - RJ-45
  • 4 x USB 3.0 - USB type A
  • 1 x RS-232 (receiver)
  • 1 x GPIO (receiver) - 1 pin Phoenix
  • 1 x USB-C (receiver)
General
ColorBlack
Device TypeUSB extender
Form FactorExternal
Miscellaneous
Compliant StandardsPlug and Play
Networking
Compliant StandardsUSB 3.0, USB 2.0, USB 1.1
Connectivity TechnologyWired
Data Link ProtocolUSB 3.0
Data Transfer Rate5 Gbps
FeaturesHDBaseT technology, 10 Gbps bandwidth, metal housing
Max Transfer Distance100 m
Power
Power DeviceExternal power adapter
Voltage RequiredAC 100-240 V (50/60 Hz)
