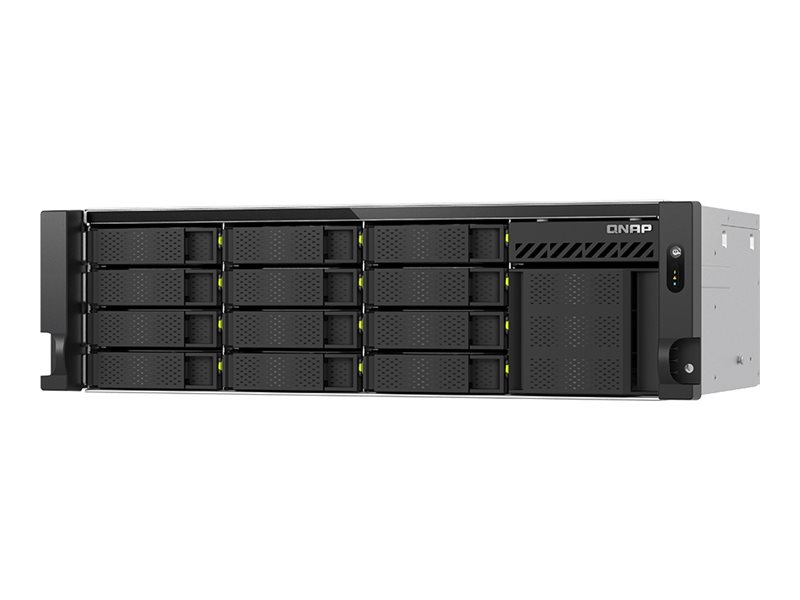

QNAP TS-h1655XeU-RP - NAS server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
QNAP TS-h1655XeU-RP - NAS server
- 12 bays
- rack-mountable
- SATA 6Gb/s
- RAID 0, 1, 5, 6, 10, 50, 60, JBOD
- RAM 8 GB
- Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet
- iSCSI support
- 3U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TS-H1655XEU-RP-8G-US |
| SHI Part #: | 50697645 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | QNAP |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | QNAP TS-h1655XeU-RP - NAS server - 12 bays - rack-mountable - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, 50, 60, JBOD - RAM 8 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 3U |
| Manufacturer | QNAP |
| MSRP | $2,949.00 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Header / Brand | QNAP |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | C5125 |
| Processor / Type | Atom |
| Service & Support / Type |
|
| Storage / Rack-mountable | Rack-mountable |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 4 (total) / 4 (free) x M.2 2280 |
| Interfaces |
|
| General | |
| Built-in Devices | 3 x 80 mm fans, buzzer, LED panel |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 3U |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Localization | United States |
| Total Storage Capacity | 0 GB |
| Weight | ) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Reset button |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 5GbE, 10GbE, 25GbE |
| Encryption Algorithm | TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.3, TLS 1.1, TLS 1.2 |
| Features | Encryption Engine, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, iSCSI service, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, MPIO, online LUN capacity expansion, LUN snapshot, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Secure Erase, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD Cache RAID, SSD profiling tool, External Device Management, MTP, External RAID Device Management, file station, Object Storage, FTP server, domain security, Domain Controller, shared folder permission, advanced folder permission, Windows ACL, Resource Monitor, Smart Fan, schedule on/off, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Windows ODX, Qsync, HybridMount, hybrid backup sync, Hyper Data Protector, Boxafe, Qsirch, QuMagie, antivirus analysis, QVPN Service, HD Station, LDAP server, SQL Server, Qfiling, media streaming add-on, QmailAgent, QuWAN, DA Driver Analyzer, RADIUS support, reset button, FXP support |
| Network / Transport Protocol | IPv4, IPv6, PPTP, L2TP, IPSec, OpenVPN, WireGuard, QBelt, QuFTP, FTP, SFTP, DHCP, DDNS, HTTP, HTTPs, Telnet |
| Network Services Compatibility | Apple File Protocol (AFP), FTP, Server Message Block (SMB), Microsoft CIFS, Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance |
|
| Remote Management Protocol | SNMP 3, SFTP, TFTP, SSH, Telnet, HTTP, HTTPS |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Stand by | 112.42 Watt |
| Power Device | Internal power supply |
| Power Provided | 300 Watt |
| Voltage Required | AC 100-240 V |
| Processor / Memory | |
| Flash Memory Installed | 4 GB |
| Max Supported Qty | 1 |
| Number of Cores | 8-core |
| Processors Installed | 1 x Intel Atom C5125 2.8 GHz |
| RAM | 8 GB (installed) / 64 GB (supported) - DDR4 |
| Software / System Requirements | |
| OS Required | Apple macOS 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022 |
| Storage Operating System | QNAP QuTS hero h5.2.6 |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD |
| Type | RAID |
