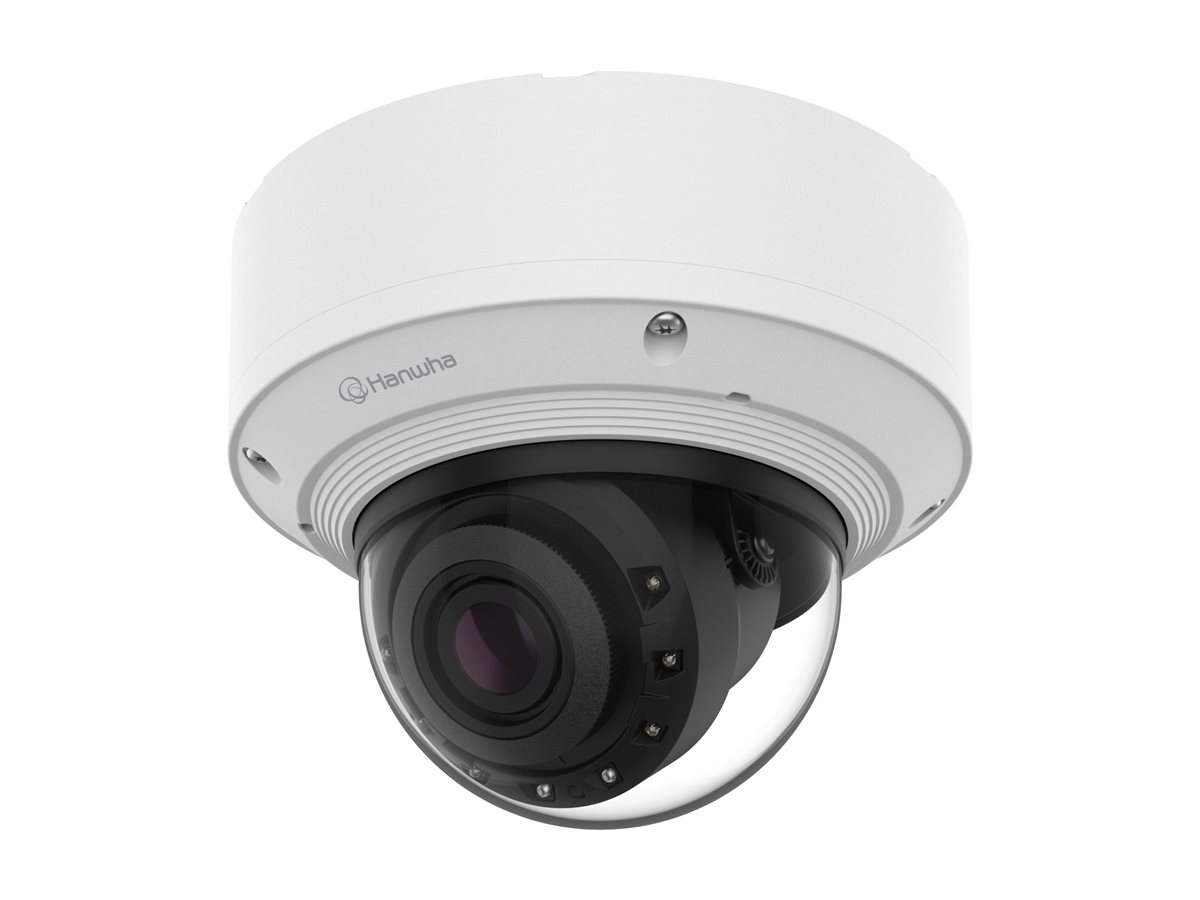

Hanwha Vision WiseNet P PND-A9082RV
MSRP$2,150.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet P PND-A9082RV
- Network surveillance camera
- dome
- indoor
- color (Day&Night)
- 8 MP
- 3840 x 2160
- motorized
- audio
- USB
- GbE
- H.265, MJPEG, H.264
- DC 12 V / PoE Plus
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,150.00 |
| Mfr Part #: | PND-A9082RV |
| SHI Part #: | 50705804 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet P PND-A9082RV - Network surveillance camera - dome - indoor - color (Day&Night) - 8 MP - 3840 x 2160 - motorized - audio - USB - GbE - H.265, MJPEG, H.264 - DC 12 V / PoE Plus |
| Manufacturer | HANWHA VISION |
| MSRP | $2,150.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 12.5 cm |
| Dimensions & Weight / Weight | 1.55 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 3328 x 1872, 3072 x 1728, 2688 x 1512, 2592 x 1944, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Digital Video Format | H.265, MJPEG, H.264 |
| Exposure Range | 2 sec - 1/30000 sec |
| Features | WiseIR, AI-powered, Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, Intelligent Video Analysis (IVA), Virtual Line detection, enter area detection, exit area detection, social distancing detection, people counting, vehicle counting, Heat Map, queue management, dynamic privacy masking, 355° rotation, Backlight Compensation (BLC), Highlight Compensation (HLC), Samsung Super Dynamic Range (SSDR), Defog, privacy masking (up to 32 areas), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), 850nm illuminator, Constant Bitrate (CBR), Variable Bitrate (VBR), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, aluminum housing, hard-coated dome |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 60 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed - indoor |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -25 °C |
| Relative Humidity (operating) | 0 - 100% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-LEAP, EAP-TLS, EAP-PEAP, MSCHAPv2 |
| Ports | Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, G.726, AAC-LC, OPUS |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.5 cm |
| Weight | 1.55 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | 8 MP 1/2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 56 - 128 |
| Focal Length | 5.9 mm - 13.3 mm |
| Horizontal Field of View (degree) | 49 - 109 |
| Lens Iris | F/1.5-2.9 (P-Iris) |
| Min Focus Distance | 80 cm |
| Optical Zoom | 2.25 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 27 - 59 |
| Miscellaneous | |
| Color | RAL 9003, white |
| Compliant Standards | FIPS 140-2 Level 3, EAL 6+, IP52, IK10, EAC, cULus, NDAA, FCC, ICES-3(A)/NMB-3(A), UKCA, EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI, RCM, KS C 9832 Class A, KS C 9835, UL 62368-1, IEC 60529, IEC 62262, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, CISPR 32 Class A, IEC 62471 |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 16.5 Watt |
| Power Requirements | DC 12 V / PoE Plus |
| Tilting | |
| Range (degree) | -45 to +85 |
