Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

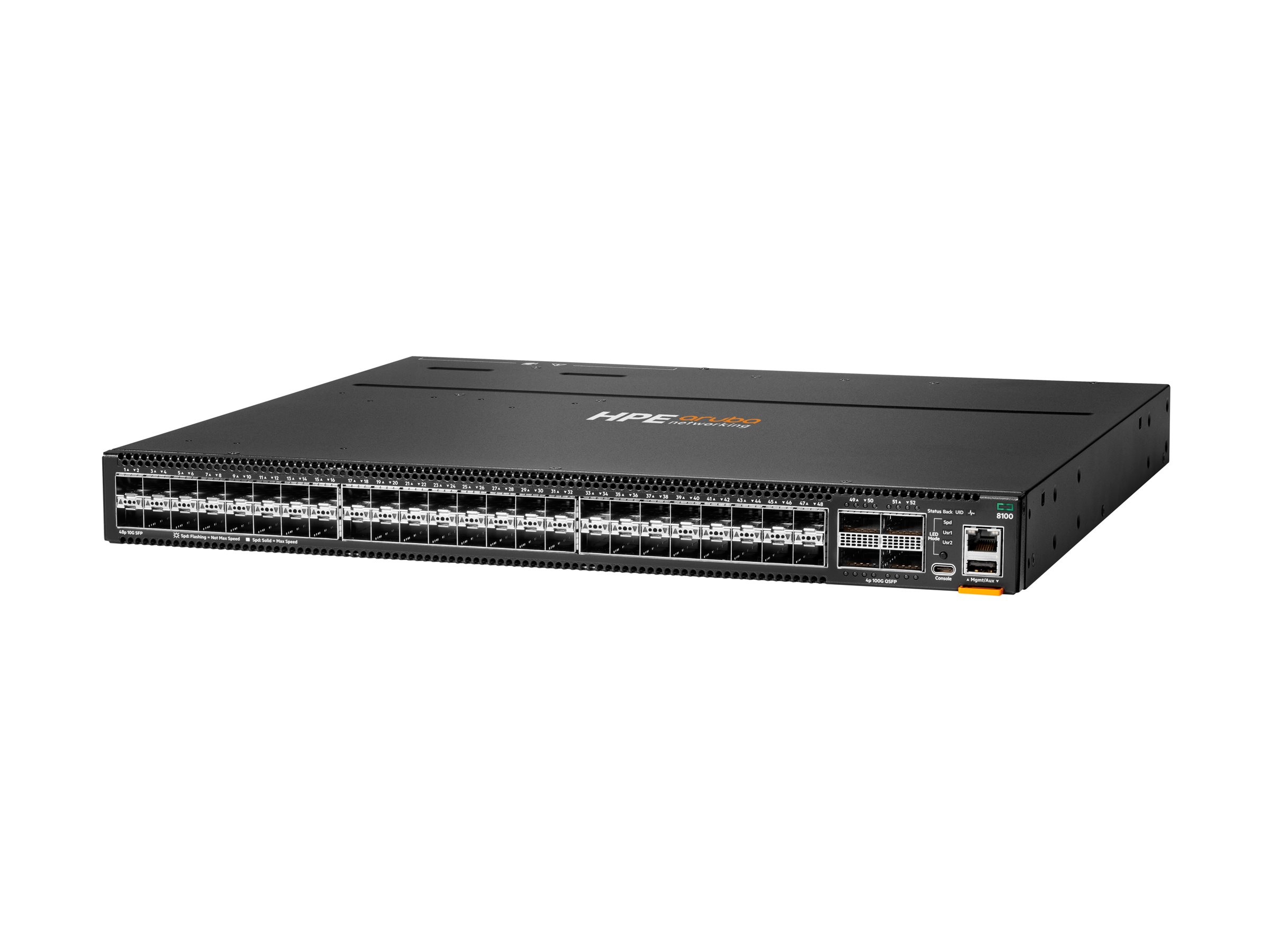

HPE Aruba Networking CX 8100 48p SFP+ 25G 4p QSFP28 100G

MSRP$28,100.00
$23,976.00
HPE Aruba Networking CX 8100 48p SFP+ 25G 4p QSFP28 100G
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • horizontal surface mounting only
  • L3
  • managed
  • 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
HPE Aruba Networking CX 8100 48p SFP+ 25G 4p QSFP28 100G
  • Switch
  • horizontal surface mounting only
  • L3
  • managed
  • 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
  • front to back airflow
  • rack-mountable
  Additional Details
Price: $23,976.00
MSRP: $28,100.00
Mfr Part #: S6B79A
SHI Part #: 50713531
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE Aruba Networking CX 8100 48p SFP+ 25G 4p QSFP28 100G - Switch - horizontal surface mounting only - L3 - managed - 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 - front to back airflow - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP$28,100.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth40.64 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight8.39 kg
Dimensions & Weight / Width44.25 cm
Header / BrandHPE
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredAOS-CX
Dimensions & Weight
Depth40.64 cm
Height4.4 cm
Weight8.39 kg
Width44.25 cm
Environmental Parameters
Humidity Range Operating15 - 95% RH @ 40°C (non-condensing)
Humidity Range Storage15 - 95% @ 65 °C (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x Gigabit / 10Gbit LAN SFP+
  • 4 x 40/100Gbit LAN QSFP28/QSFP+ uplink
  • 1 x USB-C console
  • 1 x serial RJ-45
  • 1 x USB Type A AUX
General
Authentication MethodSecure Shell (SSH), TACACS+, RADIUS, Secure Shell v.2 (SSH2)
Capacity
  • IPv4 ACL entries (ingress): 16384
  • IPv6 ACL entries (ingress): 4096
  • MAC ACL entries (ingress): 16384
  • IPv4 ACL entries (egress): 2048
  • IPv6 ACL entries (egress): 512
  • MAC ACL entries (egress): 2048
  • Maximum number of VLANs: 1024
  • IGMP groups: 4096
  • MLD groups: 4096
  • IPv4 routes (Multicast): 4096
  • IPv6 routes (Multicast): 4096
  • IPv6 routes (Multicast): 32 MB
  • Packet buffer size: 32 MB
Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3by, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Device TypeSwitch - 48 ports - L3 - managed
Enclosure TypeFront to back airflow rack-mountable 1U
FeaturesDCB, QoS, layer 2 switching, RoCE, RoCE v2, Aruba VSX, BFD, ERPS, UDLD, sFlow, NTP, BPDU, port mirroring, RPVST+, Dynamic VXLAN with BGP-EVPN, Address Resolution Protocol, layer 3 routing, OSPF, BGP-4, policy based routing, ECMP, GRE
Flash Memory32 GB
Jumbo Frame Support9000 bytes
MAC Address Table Size147456 entries
Performance
  • Switching capacity: 1.28 Tbps
  • Throughput: 1.309 Mpps
Ports48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM16 GB
Remote Management ProtocolSNMP, SNMP 2, SNMP 3, MIB
Routing ProtocolMLD, MLDv2, IGMP, IGMPv2, IGMPv3, BGP-4, RIP-2
Subtype10 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEMC 2014/30/EU, Directive 2014/35/EU, EN 63000:2018, EN 62368-1:2014 Second Edition, EN 62368-1:2020 3rd Edition, UL62368-1/CAN/CSA C22.2 No.62368-1, IEC 62368-1: 2014, IEC 62368-1:2018, EN 55032:2015, CISPR-32 Class A, FCC CFR 47 Part 15: 2018 Class A, ICES-003 Class A, CNS 13438 Class A, KN32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, EN 55035:2017, CISPR 35, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 61000-3-2:2019, EN 61000-3-2:2019, IEC 61000-3-3:2013, EN 61000-3-3:2013, EN 60825-1:2014, IEC 60825-1:2014 Class 1, Laser Class 1, CSA 62386-1
Included Accessories3 x field-replaceable hot-swappable fans
Power
FeaturesPort-to-power airflow
Installed Qty2
Max Supported Qty2
Power Consumption Stand by120 Watt
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Voltage RequiredAC 100-127/200-240 V (50/60 Hz)
Software / System Requirements
OS RequiredAOS-CX
