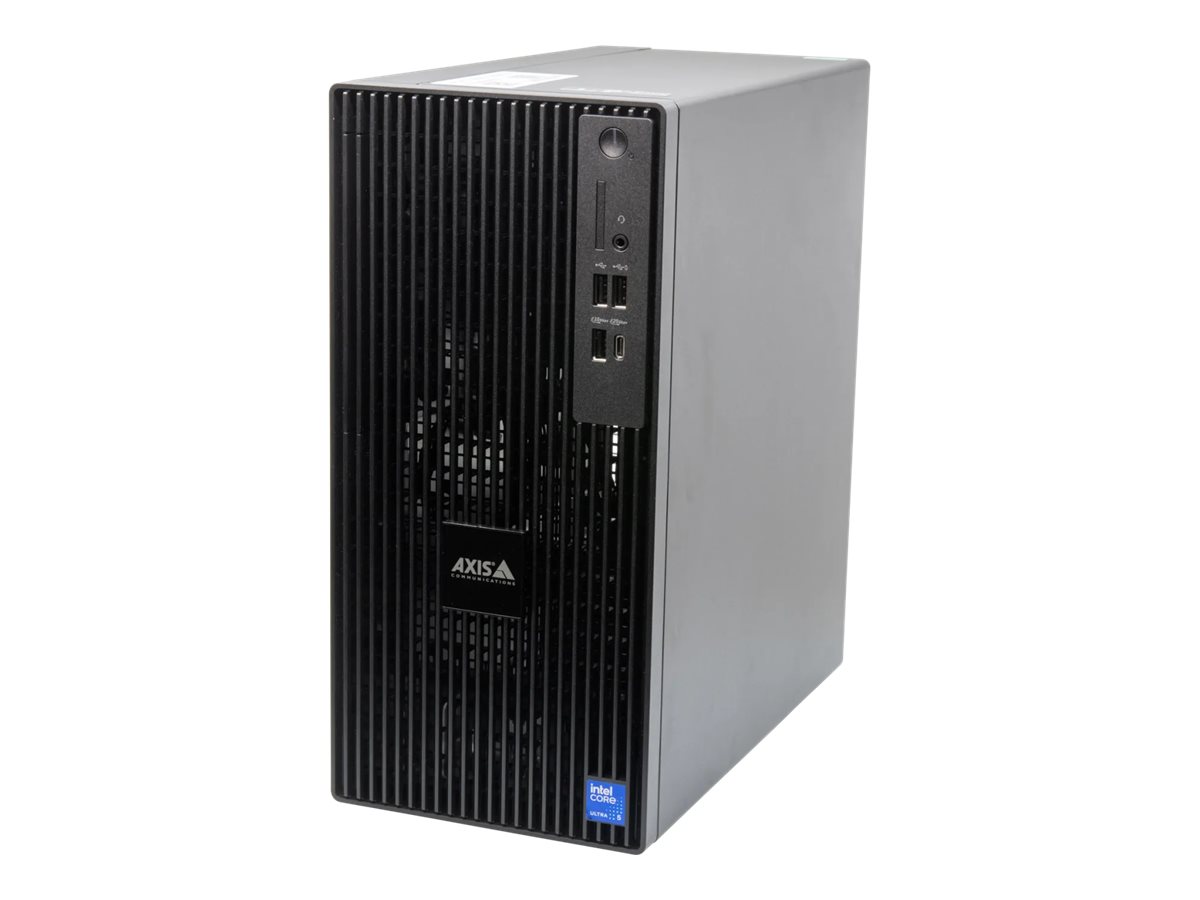

AXIS Camera Station S1216 Mk II
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS Camera Station S1216 Mk II
- Server
- tower 1 x Core Ultra 5 235 / up to 5 GHz
- RAM 16 GB
- SSD 256 GB, HDD 8 TB
- Intel Graphics
- Gigabit Ethernet
- 11 IoT Enterprise 2024 LTSC
- monitor: none
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 03428-004 |
| SHI Part #: | 50985916 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | AXIS Camera Station S1216 Mk II - Server - tower 1 x Core Ultra 5 235 / up to 5 GHz - RAM 16 GB - SSD 256 GB, HDD 8 TB - Intel Graphics - Gigabit Ethernet - 11 IoT Enterprise 2024 LTSC - monitor: none - TAA Compliant |
| Manufacturer | Axis Communications |
| MSRP | $4,499.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 29.3 cm |
| Dimensions & Weight / Height | 32.4 cm |
| Dimensions & Weight / Weight | 6.6 kg |
| Dimensions & Weight / Width | 15.4 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Header / Brand | Axis |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 IoT Enterprise 2024 LTSC |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.4 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 14-core |
| Processor / Processor Number | 235 |
| Processor / Type | Core Ultra 5 |
| Service & Support / Type | 5-year warranty |
| System / Hard Drive Capacity | 8.25 TB |
| System / Type | Server |
| Video Output / Graphics Processor | Intel Graphics |
| Cache Memory | |
| Cache Per Processor | 24 MB |
| Installed Size | 24 MB |
| Dimensions & Weight | |
| Depth | 29.3 cm |
| Height | 32.4 cm |
| Weight | 6.6 kg |
| Width | 15.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Region: United States |
| Product Form Factor | Tower |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Intel Graphics - up to 6 TOPS |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Type | SSD |
| Hard Drive (2nd) | |
| Capacity | 1 x 8 TB |
| Features | RAID ready |
| Type | HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - Next Business Day Onsite Support - 5 years |
| Miscellaneous | |
| Compliant Standards | EN 62623, EN 50564, EN 50563:2011, CNS 15936, EN 55035, EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B, KS C 9835, KS C 9832 Class B, AS/NZS CISPR 32 Class B, VCCI Class B, CAN/CSA-C22.2 No. 62368-1 Third Edition, IEC/EN 62368-1, KC mark, NOM-019, AS/NZS 62368.1:2022, BSMI, Directive 2011/65/EU, EU RoHS, REACH, Directive 2015/863/EU |
| Included Accessories | Power cable |
| TAA Compliant | Yes |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 27 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise 2024 LTSC |
| Software | AXIS Camera Station (16 channels license) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power adapter |
| Power Provided | 360 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 3.4 GHz (P-core) / 2.9 GHz (E-core) |
| CPU | Intel Core Ultra 5 (Series 2) 235 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5 GHz (P-core) / 4.4 GHz (E-core) |
| Number of Cores | 14-core |
| Processor Main Features | 14 Threads |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Installed Size | 16 GB |
