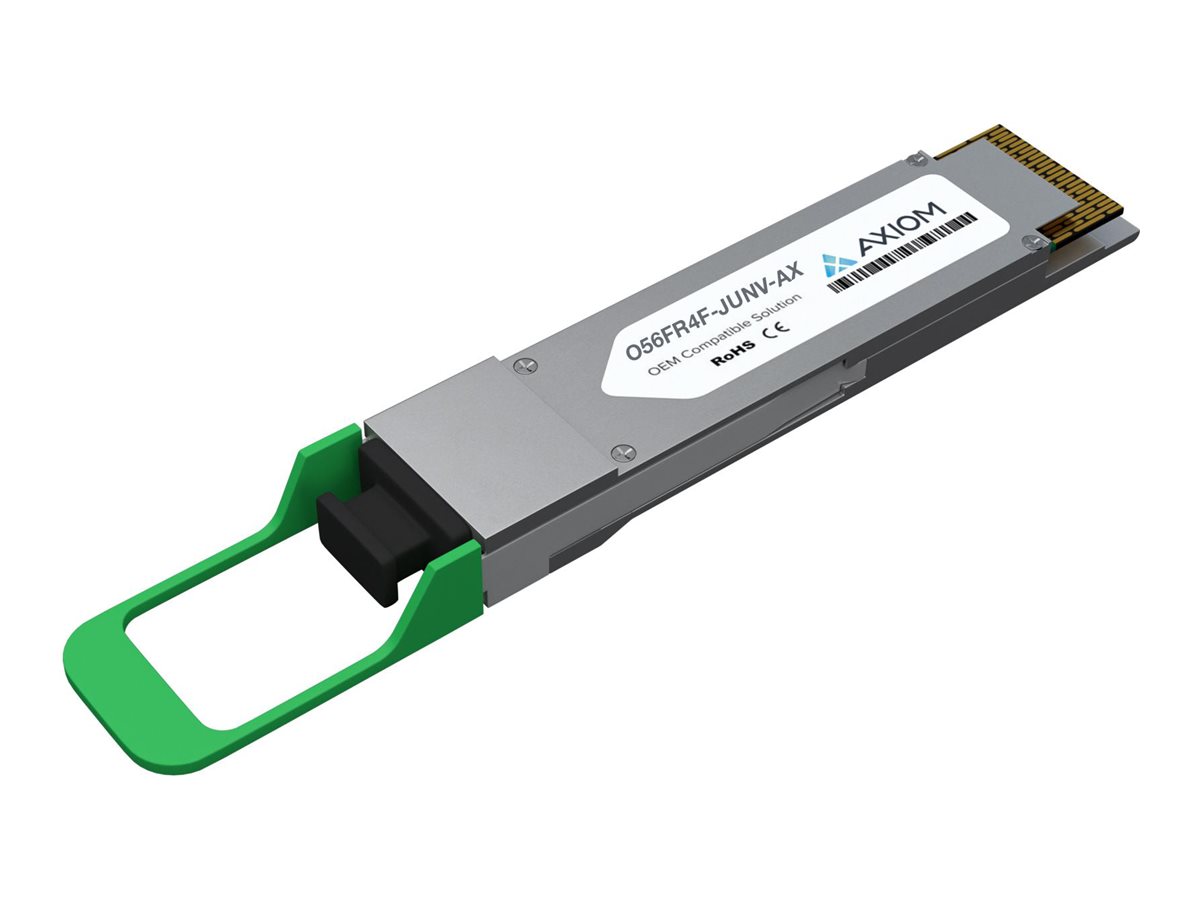

Axiom - OSFP transceiver module (equivalent to: Juniper OSFP-400G-FR4, Mellanox MMS4X50-NS400)
MSRP$2,366.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Axiom - OSFP transceiver module (equivalent to: Juniper OSFP-400G-FR4, Mellanox MMS4X50-NS400)
- 400GbE, 400 Gigabit InfiniBand
- 400GBase-FR4
- LC Duplex single-mode
- up to 2 km
- 1271 nm / 1291 nm / 1311 nm / 1331 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,366.00 |
| Mfr Part #: | O56FR4F-JUNV-AX |
| SHI Part #: | 51038518 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Axiom - OSFP transceiver module (equivalent to: Juniper OSFP-400G-FR4, Mellanox MMS4X50-NS400) - 400GbE, 400 Gigabit InfiniBand - 400GBase-FR4 - LC Duplex single-mode - up to 2 km - 1271 nm / 1291 nm / 1311 nm / 1331 nm |
| Manufacturer | Axiom Memory |
| MSRP | $2,366.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Header / Brand | Axiom |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 400 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | OSFP transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 400GBase-FR4 - LC Duplex single-mode x 2 |
| General | |
| Device Type | OSFP transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA |
| OEM Manufacturer Equivalent Part Number | Juniper OSFP-400G-FR4, Mellanox MMS4X50-NS400 |
| Networking | |
| Cabling Type | 400GBase-FR4 |
| Compliant Standards | IEEE 802.3bs |
| Connectivity Technology | Wired |
| Data Link Protocol | 400GbE, 400 Gigabit InfiniBand |
| Data Transfer Rate | 400 Gbps |
| Features | Finned, built-in heatsink, InfiniBand NDR Link support, Digital Optical Monitoring (DOM) support |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1271 nm / 1291 nm / 1311 nm / 1331 nm |
