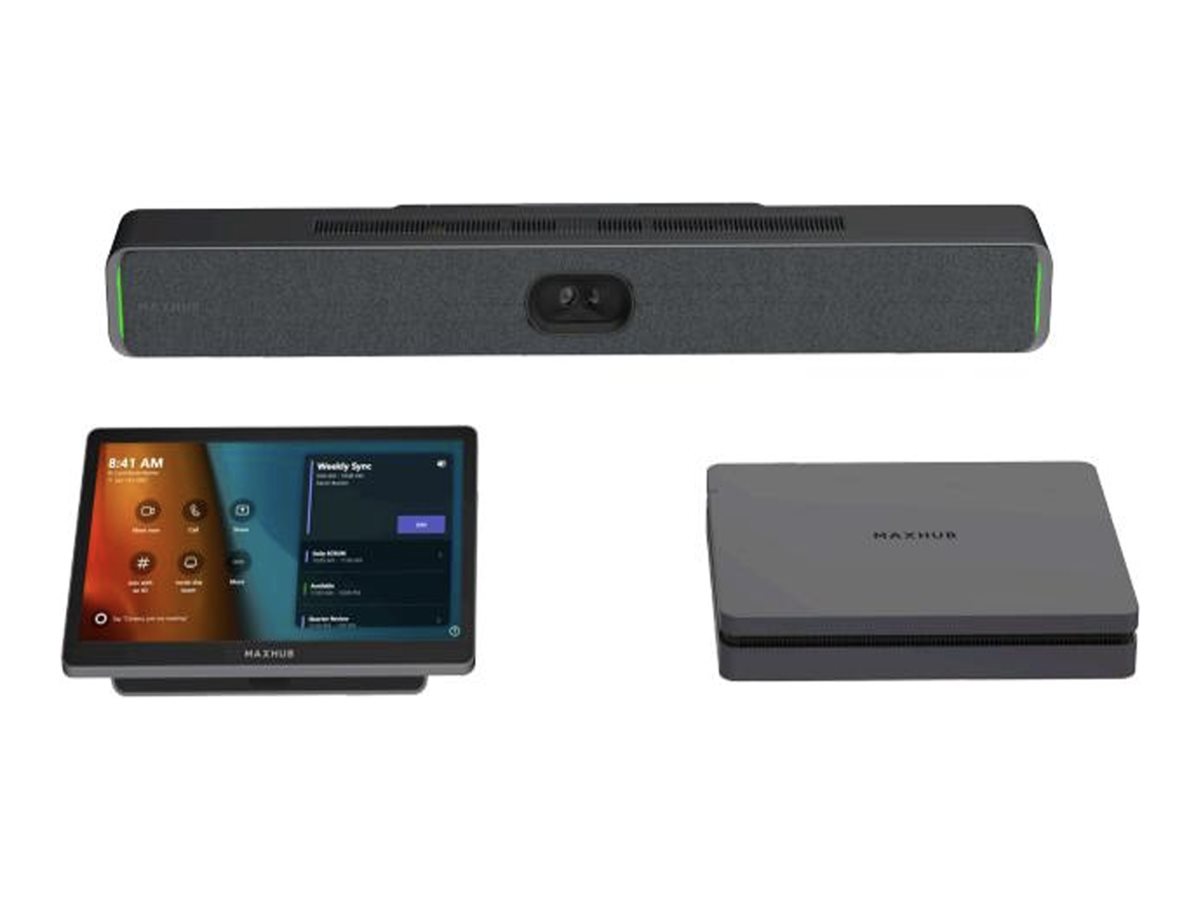

MAXHUB XT20-VB Kit - Video conferencing kit (mini-PC XC25T, touch control panel TCP30T, Video Bar XBar U50)
MSRP$3,899.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MAXHUB XT20-VB Kit - Video conferencing kit (mini-PC XC25T, touch control panel TCP30T, Video Bar XBar U50)
- Certified for Microsoft Teams Rooms
- power adapter included
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,899.00 |
| Mfr Part #: | XT20-VB Kit |
| SHI Part #: | 51076919 |
| Category: | Videoconferencing systems |
| UNSPSC: | 45111902 |
| Manufacturer: | MAXHUB |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Videoconferencing systems |
| Description | MAXHUB XT20-VB Kit - Video conferencing kit (mini-PC XC25T, touch control panel TCP30T, Video Bar XBar U50) - Certified for Microsoft Teams Rooms - power adapter included |
| Manufacturer | MAXHUB |
| MSRP | $3,899.00 |
| UNSPSC | 45111902 |
| Main Specifications | |
| Audio Input / Type | 12-microphone array |
| Display / Diagonal Size | 11.6 in |
| Display / Diagonal Size (metric) | 29.5 cm |
| Header / Brand | MAXHUB |
| Input Device / Type | 11.6" touchscreen |
| Miscellaneous / Product Color | Gray |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required | Windows 11 IoT Enterprise SAC |
| Audio Input | |
| Frequency Response | 100 - 7500 Hz |
| Microphone Operation Mode | Digital MEMS |
| Type | 12-microphone array - integrated |
| Audio Output | |
| Output Power / Channel | 15 Watt |
| Sound Output Mode | Stereo |
| Type | Sound bar |
| Display | |
| Diagonal Size | 11.6" |
| Image Brightness | 300 cd/m² |
| Monitor Features | Kensington Security Slot, LED-backlit, anti-glare, 10-point multi-touch, anti-fingerprint, capacitive touch screen, Auto Wake, 60 Hz refresh rate |
| Native Resolution | 1920 x 1080 |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | Camera, PIR sensor, 12 microphone beam forming array, tweeter, woofer |
| Device Type | Video conferencing kit |
| Dimensions & Weight Details |
|
| Kit Content | Mini-PC XC25T, touch control panel TCP30T, Video Bar XBar U50 |
| Input Device | |
| Connectivity Technology | Wired |
| Features | Capacitance Touch Sensor, LED backlight, 1920 x 1200 resolution, security slot (Kensington security lock compatible) |
| Type | 11.6" touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | Plug and Play, IEEE 802.3af, IEEE 802.3at |
| Included Accessories | Remote control, wall mount, wall bracket, privacy cover, PC bracket, cable cover, 2 cable cover screws, 4 machine screws, 4 expansion screws, 4 self-tapping screws |
| Software Certification | Certified for Microsoft Teams Rooms |
| Networking | |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6) |
| Features | Power over Ethernet (PoE) |
| Type | Network adapter |
| Power | |
| Power Device | Power adapter - external |
| Software / System Requirements | |
| OS Required | Windows 11 IoT Enterprise SAC |
| Video Input | |
| Angular Field Of View (max, degree) | 125 |
| Digital Video Capture Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 800 x 600, 640 x 360 |
| Digital Zoom | 6 |
| Features | Echo reduction, noise reduction, auto-framing, auto AGC, speaker tracking, dereverberation, 100 megapixels resolution, intelligent focus, privacy shutter, Video Fence support |
| Type | Digital camera (color) - integrated |
| Video Output | |
| PC Configuration | 12th Gen Core i5, 16GB RAM, 256GB SSD |
