CPI Basic eConnect E0-1017-CE
MSRP$1,900.35
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

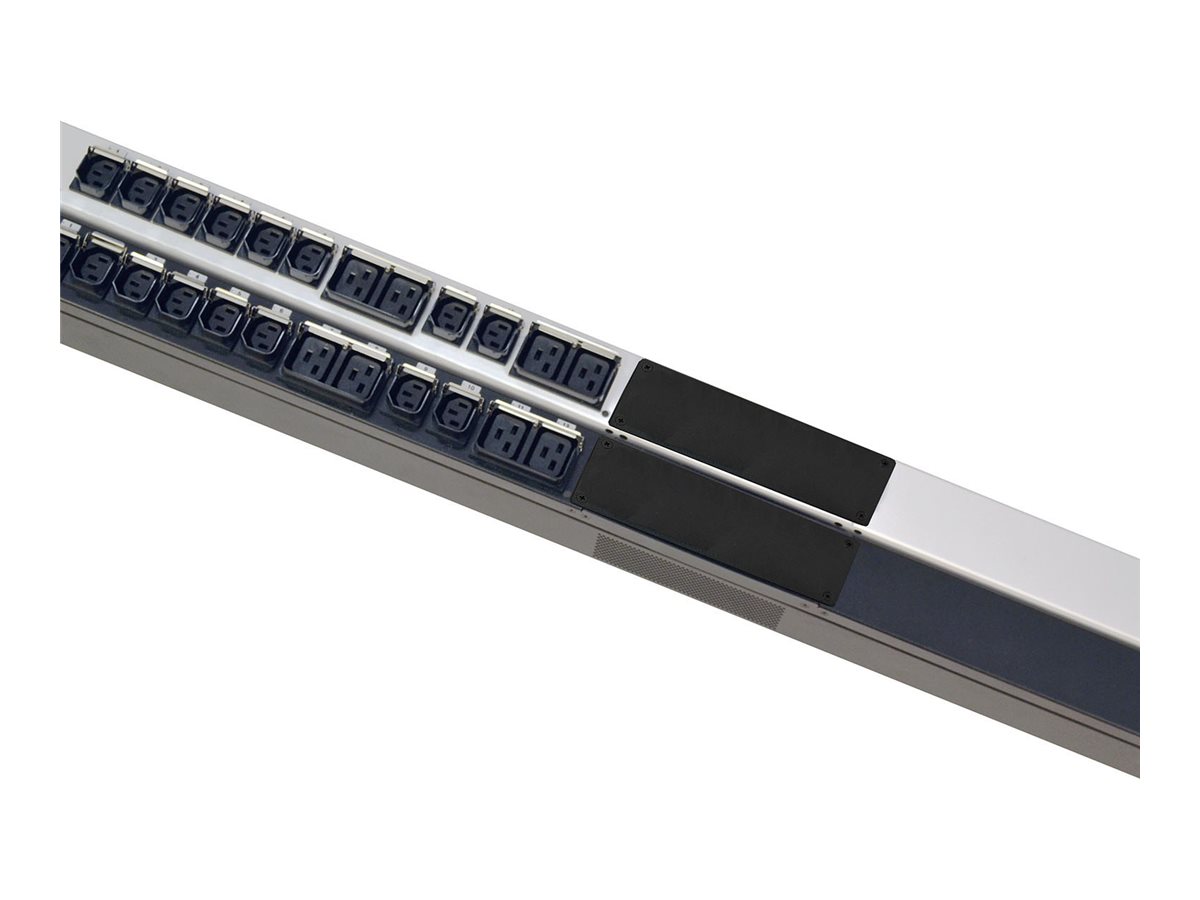

CPI Basic eConnect E0-1017-CE
- Redundancy Pack
- power distribution unit (rack-mountable)
- AC 220-240/380-415 V
- 5.7 kW
- 3-phase
- input: NEMA L21-20P
- output connectors: 42 (36 x IEC 60320 C13, 6 x IEC 60320 C19)
- 42U
- 3 m cord
- black, glacier white
- TAA Compliant (pack of 2)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,900.35 |
| Mfr Part #: | E0-1017-CE |
| SHI Part #: | 51239906 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Basic eConnect E0-1017-CE - Redundancy Pack - power distribution unit (rack-mountable) - AC 220-240/380-415 V - 5.7 kW - 3-phase - input: NEMA L21-20P - output connectors: 42 (36 x IEC 60320 C13, 6 x IEC 60320 C19) - 42U - 3 m cord - black, glacier white - TAA Compliant (pack of 2) |
| Manufacturer | Chatsworth |
| MSRP | $1,900.35 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Header / Brand | CPI |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 2 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 42 |
| Power Device / Voltage Required | AC 220-240/380-415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 24 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -25 °C |
| General | |
| Color | Black, glacier white |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Packaged Quantity | 2 (specifications are for single item) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, IEC 62368, IP20, UL 489, RoHS, FCC Part 15 A, EN55022, NEMKO, cULus, WEEE |
| Features | Low-profile design, vertical orientation, tool-less mounting, indoor use, high temperature protection, simplified load balancing, Hydraulic-Magnetic breakers, power cable IP20 compliant, color-coded labels, locking outlets, LED display, outlet grouping |
| Included Accessories | 2 x toolless mounting buttons |
| TAA Compliant | Yes |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-20P |
| Input Voltage | AC 220-240/380-415 V |
| Input Wiring | 3-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 5.7 kW |
| Power Output Connectors Details |
|
