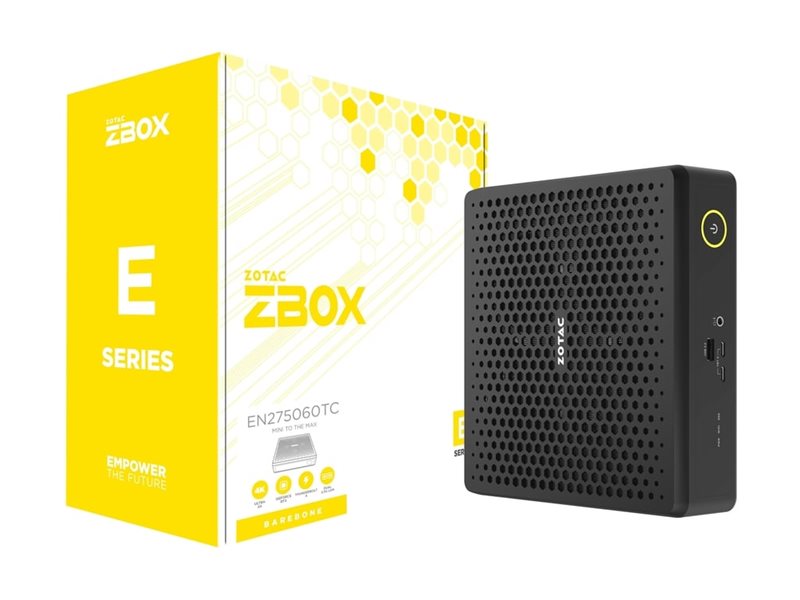

ZOTAC ZBOX MAGNUS EN275060TC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ZOTAC ZBOX MAGNUS EN275060TC
- Barebone
- mini PC 1 x Core Ultra 7 255HX / up to 5.2 GHz
- RAM 0 GB
- GeForce RTX 5060 Ti
- Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ZBOX-EN275060TC-U |
| SHI Part #: | 51389762 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | ZOTAC |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | ZOTAC ZBOX MAGNUS EN275060TC - Barebone - mini PC 1 x Core Ultra 7 255HX / up to 5.2 GHz - RAM 0 GB - GeForce RTX 5060 Ti - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Manufacturer | ZOTAC |
| MSRP | $1,399.99 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 20.3 cm |
| Dimensions & Weight / Height | 6.22 cm |
| Dimensions & Weight / Width | 21 cm |
| Display / Type | None. |
| Header / Brand | ZOTAC |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | 255HX |
| Processor / Type | Core Ultra 7 |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | PC barebone |
| Video Memory / Technology | GDDR7 SDRAM |
| Video Output / Graphics Processor | NVIDIA GeForce RTX 5060 Ti |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | 30 MB |
| Dimensions & Weight | |
| Depth | 20.3 cm |
| Height | 6.22 cm |
| Width | 21 cm |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Localization | Region: United States |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | NVIDIA GeForce RTX 5060 Ti |
| Video Interfaces | HDMI, DisplayPort |
| Video Memory | 16 GB GDDR7 SDRAM |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Included Accessories | 2 x wireless antennas |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Processor / Chipset | |
| Clock Speed | 2.4 GHz (P-core) / 1.8 GHz (E-core) |
| CPU | Intel Core Ultra 7 (Series 2) 255HX |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.2 GHz (P-core) / 4.5 GHz (E-core) |
| Number of Cores | 20-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Effective Memory Speed | 5600 MT/s |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Rated Memory Speed | 5600 MT/s |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
