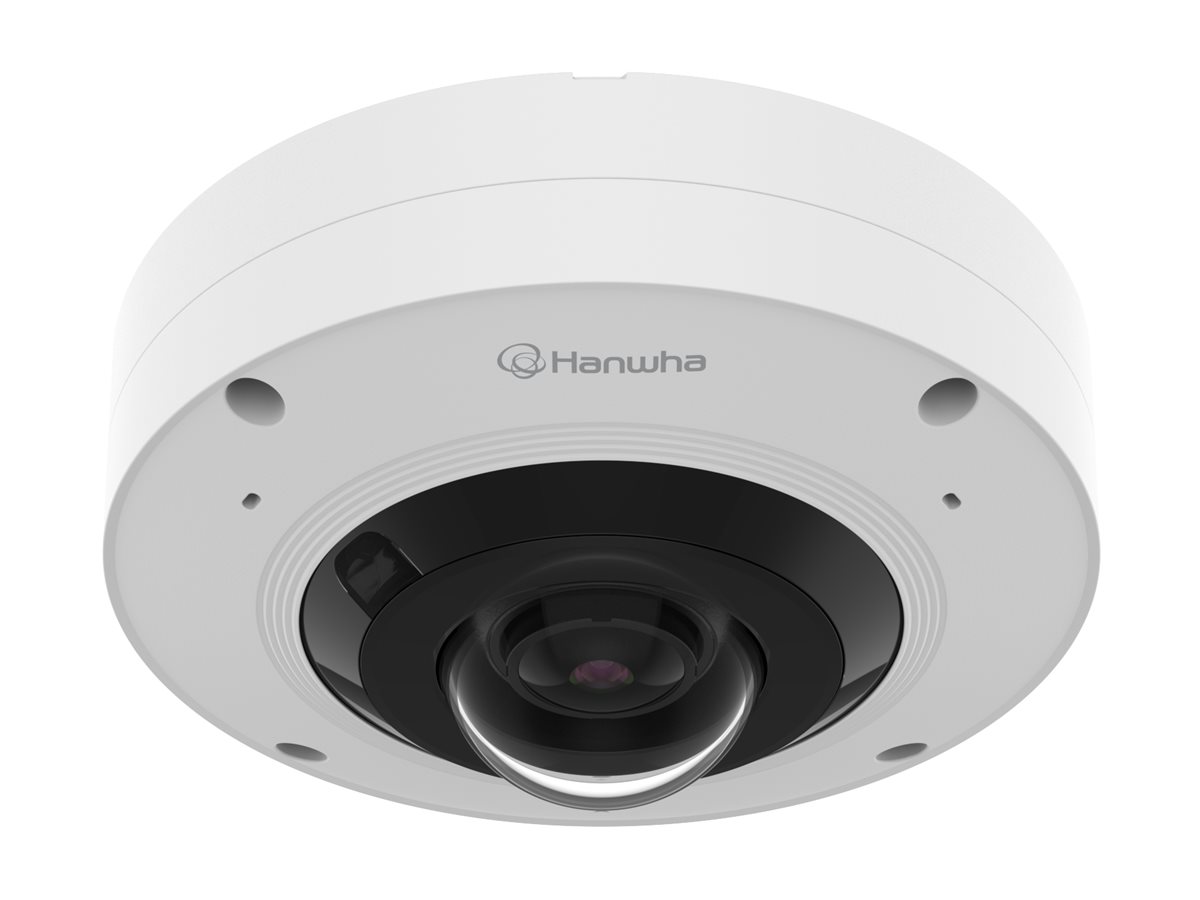

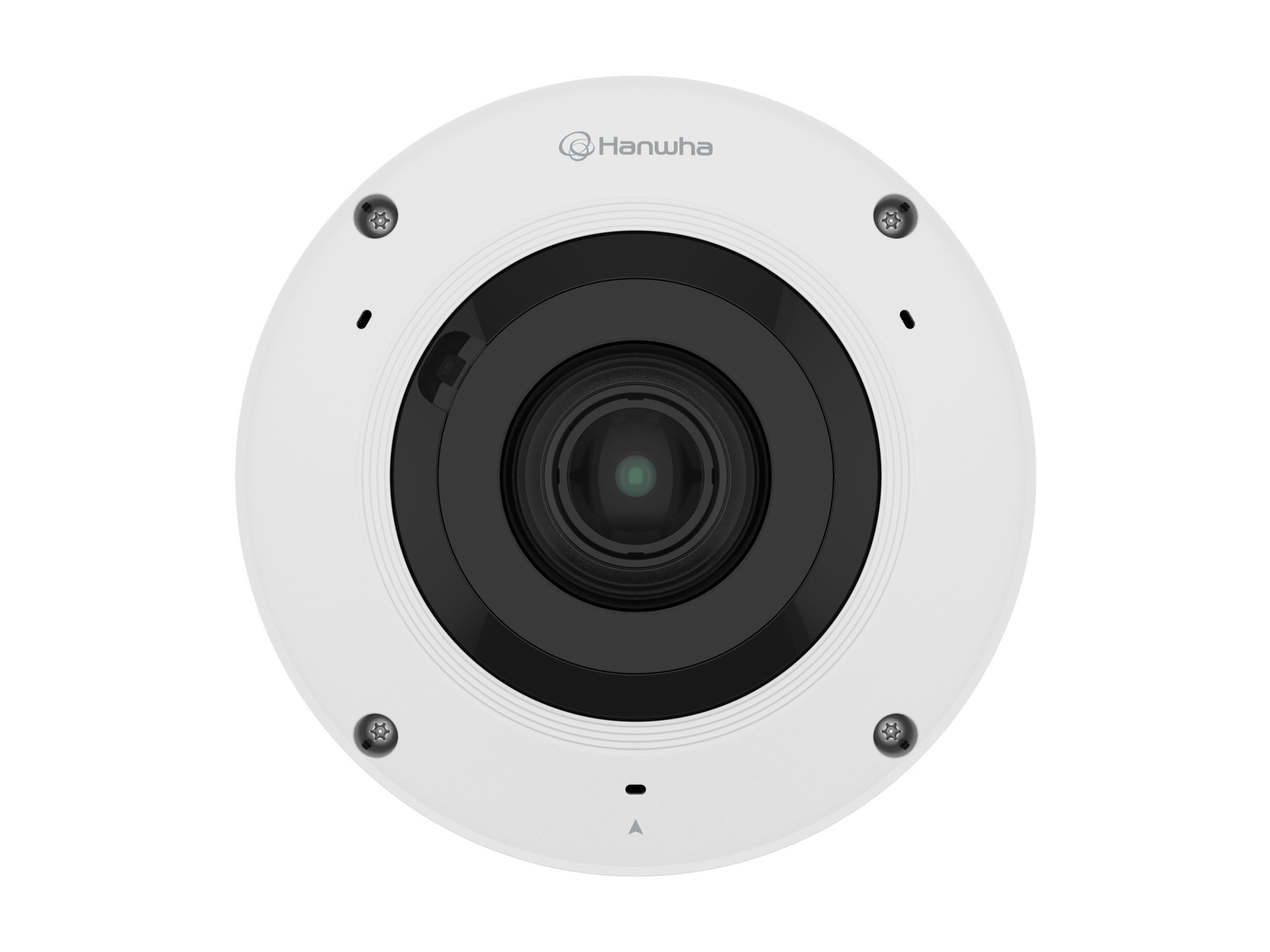

Hanwha Vision WiseNet X XNF-A9014RV
MSRP$1,470.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNF-A9014RV
- Network surveillance camera
- fisheye
- outdoor
- color (Day&Night)
- 12 MP
- 3584 x 2688
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus Class 4
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,470.00 |
| Mfr Part #: | XNF-A9014RV |
| SHI Part #: | 51577686 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNF-A9014RV - Network surveillance camera - fisheye - outdoor - color (Day&Night) - 12 MP - 3584 x 2688 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Plus Class 4 - TAA Compliant |
| Manufacturer | HANWHA VISION |
| MSRP | $1,470.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 7.5 cm |
| Dimensions & Weight / Weight | 1.02 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3584 x 2688, 3584 x 1792, 3584 x 896, 3536 x 3536, 3008 x 3008, 2560 x 2560, 2560 x 1920, 2560 x 1280, 2560 x 640, 1920 x 960, 1920 x 480, 1792 x 1344, 1600 x 1600, 1280 x 1280, 1280 x 960, 1280 x 640, 1280 x 320, 1024 x 768, 1024 x 512, 1024 x 256, 800 x 800, 800 x 600, 640 x 640, 640 x 480, 640 x 320, 640 x 160, 480 x 480, 320 x 240, 160 x 160 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/30000 sec |
| Features | Digital image rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), Defog, auto gain control, auto white balance, digital PTZ function, image flip, image mirror, alarm function, Handover, email upload, FTP alerts, object classification, clothes color detection, Vehicle Detection, Virtual Line detection, entrance / exit detection, appearing / disappearing detection, intrusion detection, loitering detection, Tampering detection, shock detection, Audio Detection, WiseStream support, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, notification picture to E-mail, notification picture to FTP, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, hard-coated dome, aluminum enclosure |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3584 x 2688 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed - outdoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2, FIPS 140-3 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Audio Support | Yes: built-in three microphones |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Fisheye |
| Height | 7.5 cm |
| Weight | 1.02 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | 12 MP CMOS 1/1.6" |
| Interfaces | |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | SUNAPI, IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, FTP, SFTP, ICMP, IGMP, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SMTP, Syslog, TCP, SNMP 1, SNMP 2c, SNMP 3, SSL, TLS |
| Lens Construction | |
| Diagonal Field of View (degree) | 185 |
| Focal Length | 1.76 mm |
| Horizontal Field of View (degree) | 185 |
| Lens Iris | F/1.8 |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 185 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.1x, AES-256, ETSI EN 303 645, IEEE 802.3af, IEEE 802.3at, RoHS 2011/65/EU, EN/IEC 63000:2018, EN 50121-4, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 50121-3-2, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS-2 2013 (2.2.7-2.2.8-2.2.9), NEMA 250 Type 4X, EN 50155, IEC 62236-4, EN 50498, IEC/EN61373, EN 45545, IEC 62236-3-2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 62676-4 |
| TAA Compliant | Yes |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
