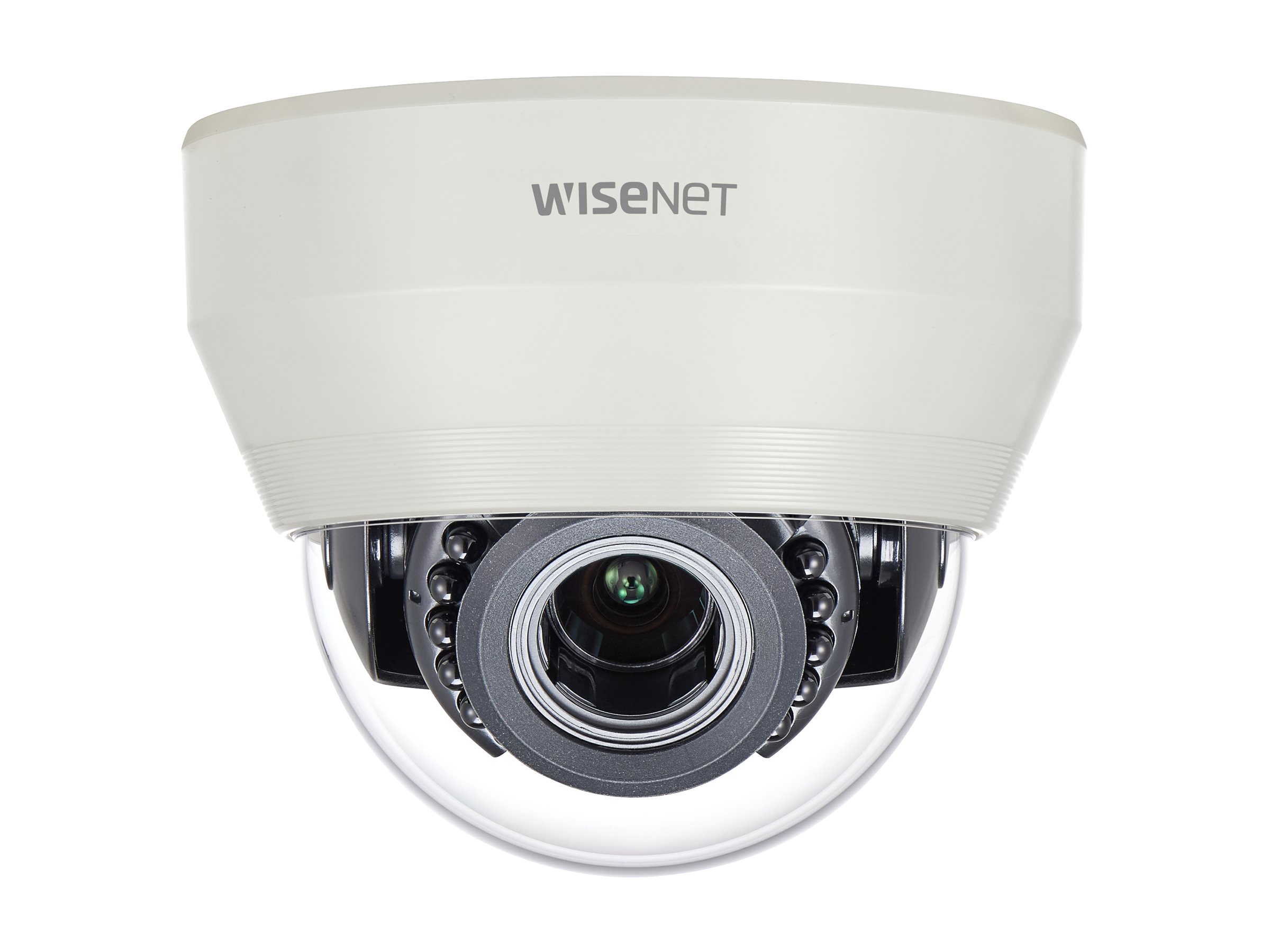

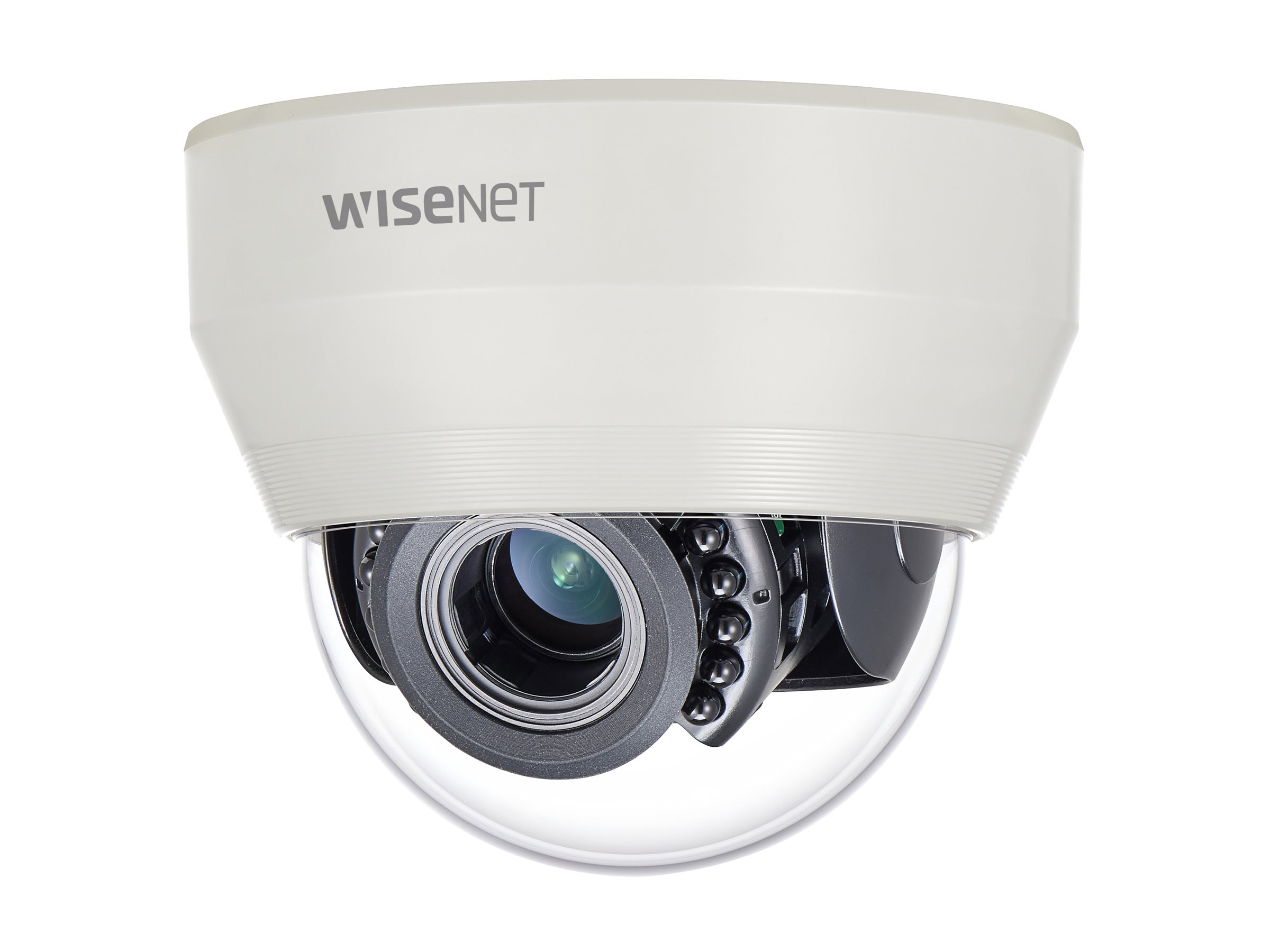

Hanwha Vision WiseNet HD+ HCD-7070RA
MSRP$270.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet HD+ HCD-7070RA
- Surveillance camera
- dome
- color (Day&Night)
- 4 MP
- 2560 x 1440
- auto iris
- vari-focal
- composite, AHD
- DC 12 V / AC 24 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $270.00 |
| Mfr Part #: | HCD-7070RA |
| SHI Part #: | 43074236 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet HD+ HCD-7070RA - Surveillance camera - dome - color (Day&Night) - 4 MP - 2560 x 1440 - auto iris - vari-focal - composite, AHD - DC 12 V / AC 24 V |
| Manufacturer | HANWHA VISION |
| MSRP | $270.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.98 cm |
| Dimensions & Weight / Height | 9.85 cm |
| Dimensions & Weight / Weight | 320 g |
| Dimensions & Weight / Width | 11.98 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Beige |
| Packaged Quantity | 1 |
| Camera | |
| Exposure Range | 1/30 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Motion Detection Technology, Privacy Mask Function, Highlight Compensation (HLC), auto gain control, auto white balance, plastic housing, 2D Digital Noise Reduction Technology |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Capture | 2560 x 1440 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Connectivity Technology | Wired |
| Depth | 11.98 cm |
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Height | 9.85 cm |
| Weight | 320 g |
| Width | 11.98 cm |
| Image Sensor | |
| Effective Pixels | 2688 x 1520 |
| Type | 4 MP CMOS 1/3" |
| Interfaces | |
| Alarm Outputs Qty | 1 |
| Video | Composite video, AHD |
| Lens Construction | |
| Diagonal Field of View (degree) | 33.7 - 112.53 |
| Focal Length | 3.2 mm - 10 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 29.44 - 93.48 |
| Lens Iris | F/1.6 auto iris (DC) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 3.1 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 16.64 - 50.47 |
| Miscellaneous | |
| Color | Ivory |
| Compliant Standards | Plug and Play |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 5.8 Watt |
| Power Requirements | DC 12 V / AC 24 V |
| Tilting | |
| Range (degree) | 0 to 63 |
