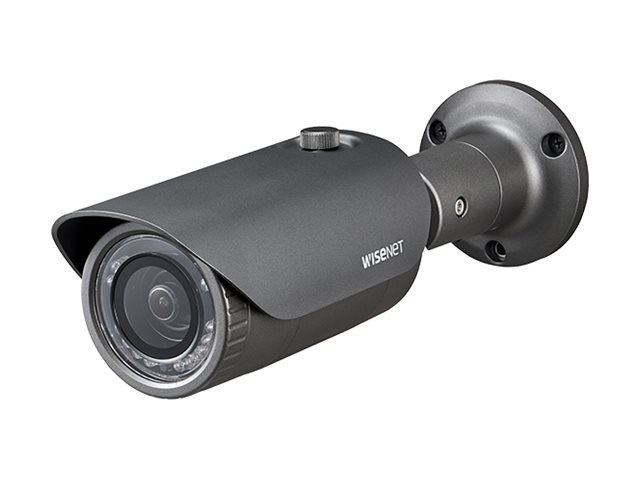

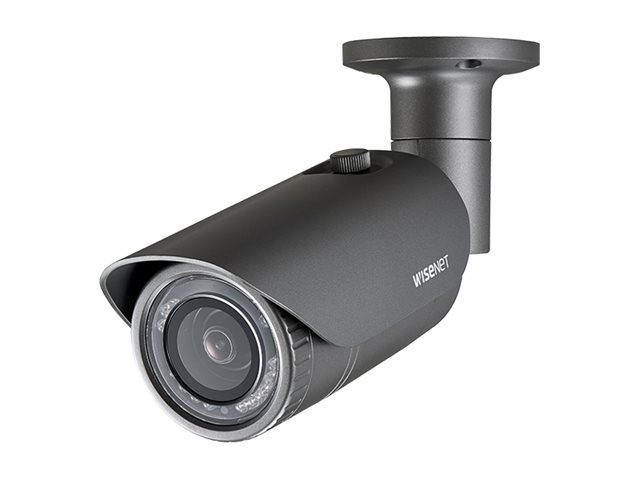

Hanwha Vision WiseNet HD+ HCO-7030RA
MSRP$200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet HD+ HCO-7030RA
- Surveillance camera
- bullet
- color (Day&Night)
- 4 MP
- 2560 x 1440
- fixed focal
- composite, AHD
- DC 12 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $200.00 |
| Mfr Part #: | HCO-7030RA |
| SHI Part #: | 39492377 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet HD+ HCO-7030RA - Surveillance camera - bullet - color (Day&Night) - 4 MP - 2560 x 1440 - fixed focal - composite, AHD - DC 12 V |
| Manufacturer | HANWHA VISION |
| MSRP | $200.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.6 cm |
| Dimensions & Weight / Height | 7 cm |
| Dimensions & Weight / Weight | 670 g |
| Dimensions & Weight / Width | 7 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Camera | |
| Exposure Range | 1/30 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Highlight Compensation (HLC), Digital Wide Dynamic Range (D-WDR), auto white balance, Motion Detection Technology, Privacy Mask Function, 2D Digital Noise Reduction Technology, auto gain control |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Connectivity Technology | Wired |
| Depth | 24.6 cm |
| Device Type | Surveillance camera |
| Form Factor | Bullet |
| Height | 7 cm |
| Weight | 670 g |
| Width | 7 cm |
| Image Sensor | |
| Effective Pixels | 2688 x 1520 |
| Type | 4 MP CMOS 1/3" |
| Interfaces | |
| Video | Composite video, AHD |
| Lens Construction | |
| Diagonal Field of View (degree) | 55.6 |
| Focal Length | 6 mm |
| Horizontal Field of View (degree) | 49.01 |
| Lens Iris | F/2.0 |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 27.61 |
| Miscellaneous | |
| Color | Dark gray |
| Compliant Standards | Plug and Play, IK10, IP66 |
| Power | |
| Power Device | 5 watt |
| Power Requirements | DC 12 V |
