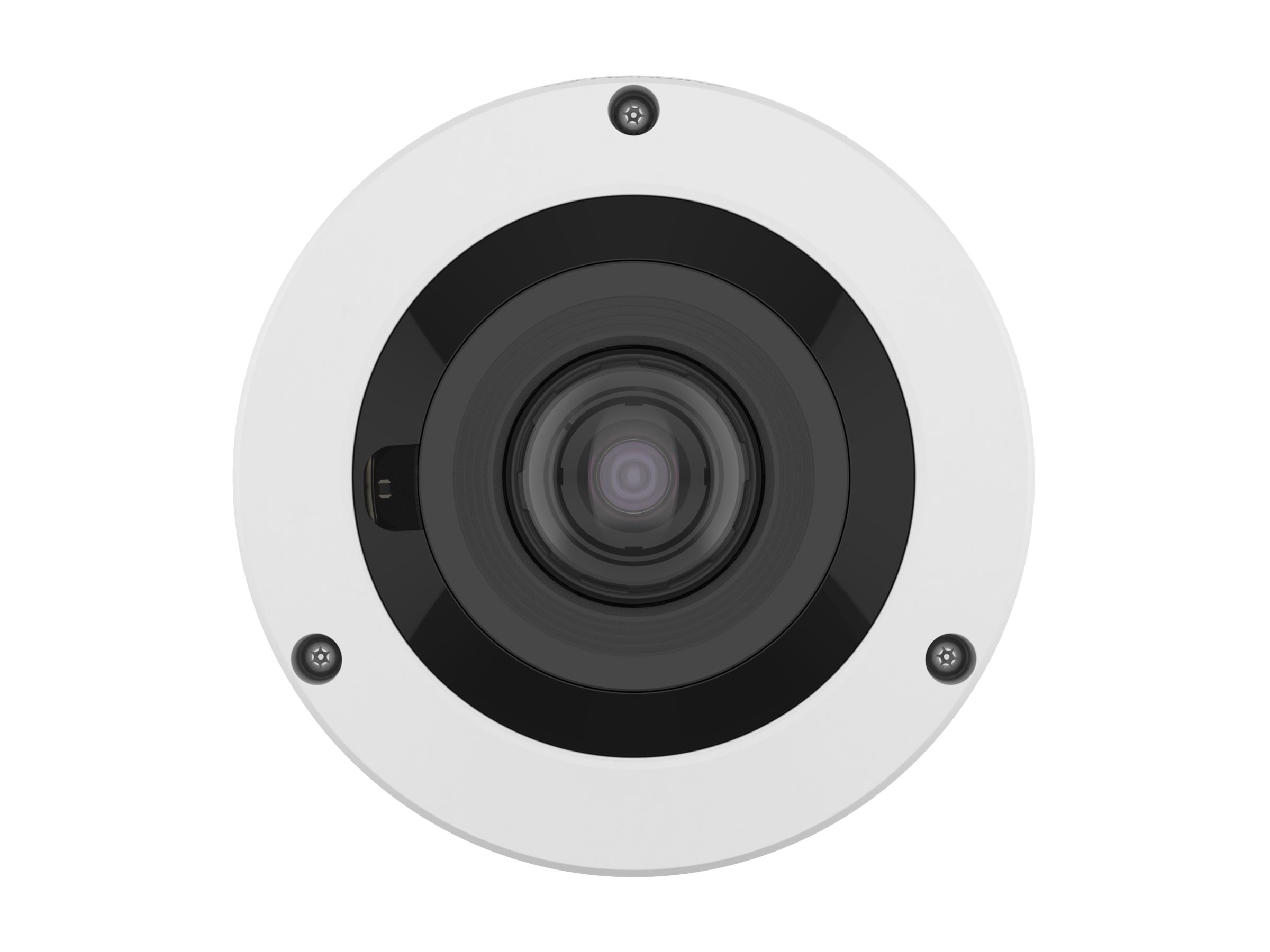

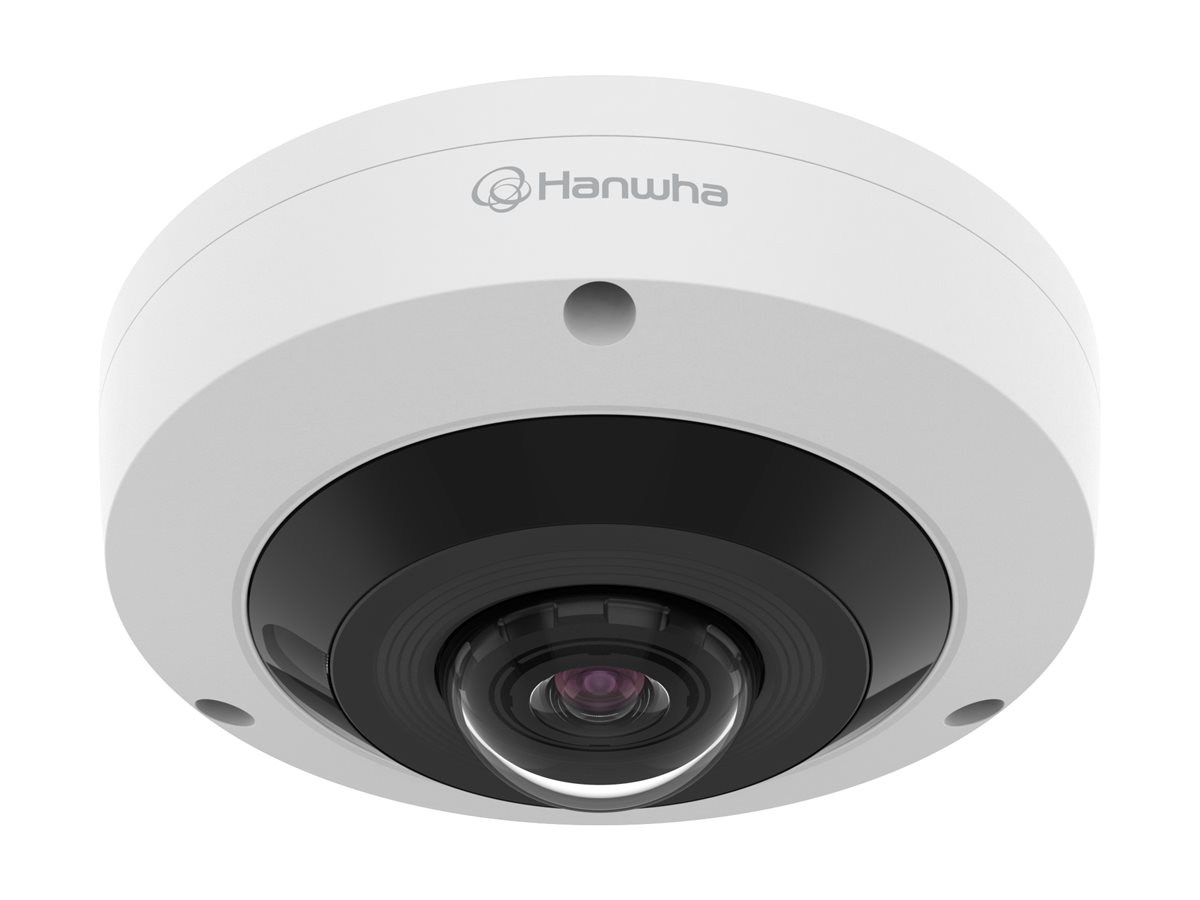

Hanwha Vision WiseNet HD+ HCF-8011RV
MSRP$525.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet HD+ HCF-8011RV
- Surveillance camera
- fisheye
- outdoor
- color (Day&Night)
- 5 MP
- 2560 x1944
- fixed focal
- CVBS, AHD
- DC 12 V / AC 24 V
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $525.00 |
| Mfr Part #: | HCF-8011RV |
| SHI Part #: | 47875353 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet HD+ HCF-8011RV - Surveillance camera - fisheye - outdoor - color (Day&Night) - 5 MP - 2560 x1944 - fixed focal - CVBS, AHD - DC 12 V / AC 24 V - TAA Compliant |
| Manufacturer | HANWHA VISION |
| MSRP | $525.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.59 cm |
| Dimensions & Weight / Height | 6.58 cm |
| Dimensions & Weight / Weight | 720 g |
| Dimensions & Weight / Width | 14.59 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2560 x 1944 |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), anti-flicker, vertical flip and mirror, digital image rotation |
| Frame Rate (max) | 20 frames per second |
| Infrared Distance | 10 m |
| Max Digital Video Resolution | 2560 x1944 |
| Minimum Illumination |
|
| Type | Color - Day&Night - fixed - outdoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports | Video output - BNC |
| General | |
| Camera Mount Type | Ceiling mount, wall mount |
| Connectivity Technology | Wired |
| Depth | 14.59 cm |
| Device Type | Surveillance camera |
| Form Factor | Fisheye |
| Height | 6.58 cm |
| Weight | 720 g |
| Width | 14.59 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.9" |
| Interfaces | |
| Video | CVBS, AHD |
| Lens Construction | |
| Focal Length | 1.16 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 180 |
| Lens Iris | F/2.25 |
| Min Focus Distance | 20 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 180 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10 |
| Included Accessories | Mount plate, screws, torx L-key, installation sticker |
| TAA Compliant | Yes |
| Power | |
| Power Requirements | DC 12 V / AC 24 V |
