Hardware Power Management Power Distribution (PDU)

Power Distribution (PDU)

Server Technology PRO4X Switched POPS PDU C4G36RA-2CBE2FE2

$4,463.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Power distribution strip (rack-mountable) AC 208 V 5 kW Ethernet 10/100/1000, RS-232, USB input: NEMA L6-30P

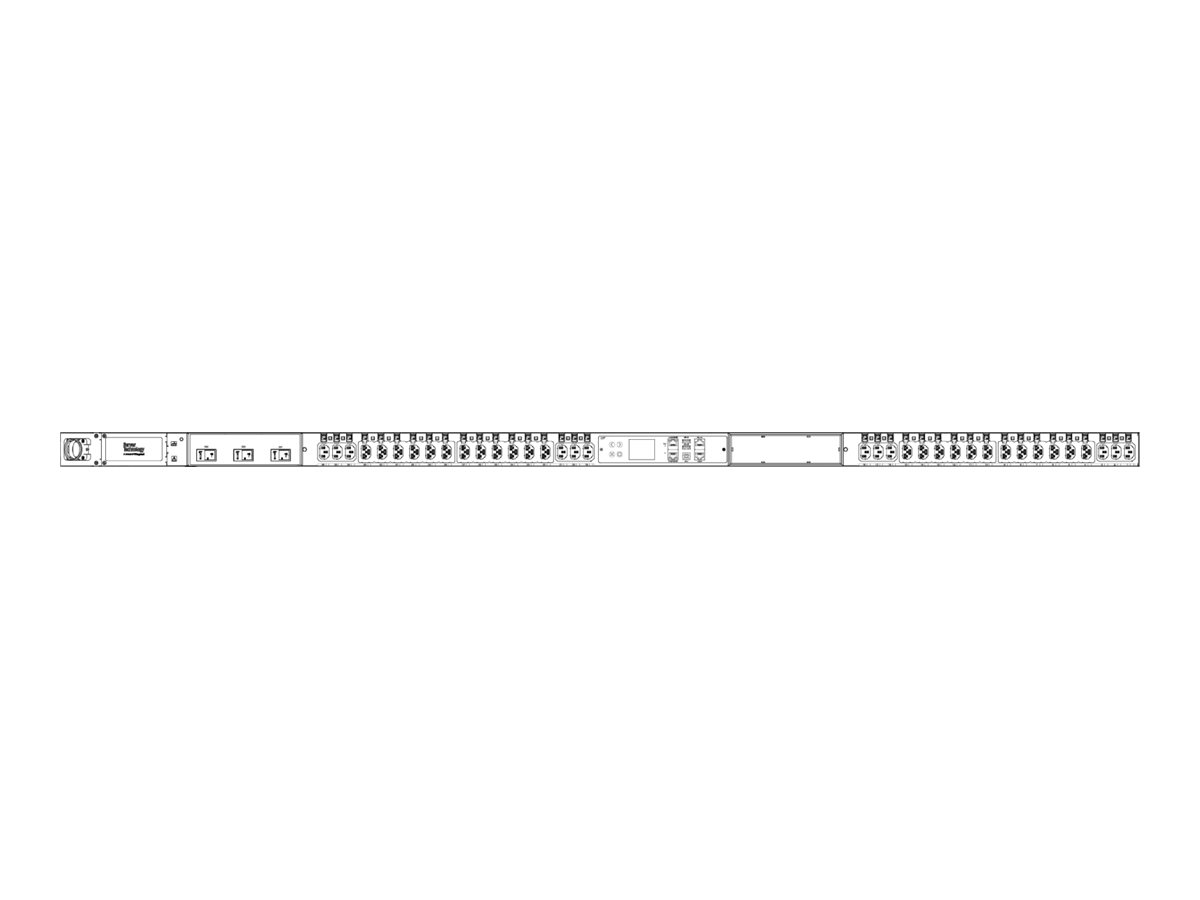

Server Technology PRO4X Switched POPS PDU C4G36RA-2CBE2FE2

Power distribution strip (rack-mountable)
AC 208 V
5 kW
Ethernet 10/100/1000, RS-232, USB
input: NEMA L6-30P
output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx)
3 m cord
black

Additional Details
Price:	$4,463.00
Mfr Part #:	C4G36RA-2CBE2FE2/30R1
SHI Part #:	48122374
Category:	Power distribution units PDUs
UNSPSC:	39121017
Manufacturer:	Legrand
Product Type:	Hardware

General Information
Category	Power distribution units PDUs
Description	Server Technology PRO4X Switched POPS PDU C4G36RA-2CBE2FE2 - Power distribution strip (rack-mountable) - AC 208 V - 5 kW - Ethernet 10/100/1000, RS-232, USB - input: NEMA L6-30P - output connectors: 36 (12 x IEC 60320 C13, 24 x IEC 60320 Cx) - 3 m cord - black
Manufacturer	Legrand
MSRP	$4,056.00
UNSPSC	39121017
Main Specifications
Dimensions & Weight / Depth	6.4 cm
Dimensions & Weight / Height	177.8 cm
Dimensions & Weight / Width	5.6 cm
Header / Brand	Server Technology
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100/1000 RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	36
Power Device / Voltage Required	AC 208 V
Product Type	Power distribution strip
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	6.4 cm
Height	177.8 cm
Width	5.6 cm
Environmental Parameters
Humidity Range Operating	5 - 90% RH (non-condensing)
Max Operating Temperature	60 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	2 x management (Gigabit Ethernet) - RJ-45 1 x sensor - RJ-45 1 x PDU link - RJ-45 2 x USB-A - 4 pin USB Type A 1 x USB - 4 pin USB Type B
General
Color	Black
Cord Length	3 m
Device Type	Power distribution strip - rack-mountable
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 2 years
Miscellaneous
Compliant Standards	Plug and Play, UL, IEC 62368-1, UL 489, CSA C22.2 No. 5, IEC 60947-2, EMC, FCC Subpart B 15.107, FCC Subpart B 15.109, CAN ICES-3 Class A
Features	SNMP trap, IPv6 support, IPv4 support, Ramlock Locking Outlets, remote control, Branch Current Monitoring, High Density Outlet Technology (HDOT), switched, multi-color LCD, crest factor meter, voltage meter, load monitoring, waveform capture, Per Outlet Power Sensing (POPS), energy meter, Multi-Unit Linking and Cascading, 45° angled infeed, hot-swappable controller, LED indicators, Raritan Xerus Technology, Branch Circuit Protection, overlay red labels, 10kAIC breaker, current meter, active power meter, power factor meter
Networking
Remote Management Interface	Ethernet 10/100/1000, RS-232, USB
Remote Management Protocol	SSH, HTTP, HTTPS, SNMP 2c, Telnet, SFTP, Syslog, LDAPS, Web GUI, CLI, TLS 1.2, SSH-2, SNMP 3, IPv4, IPv6, LDAP 3.0, TACACS+, RADIUS
Power Device
Circuit Protection	Circuit breaker
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L6-30P
Input Voltage	AC 208 V
Max Electric Current	30 A
Output Voltage	AC 208 V
Power Capacity	5 kW
Power Output Connectors Details	12 x power IEC 60320 C13 15 A 24 x power IEC 60320 Cx 20 A
