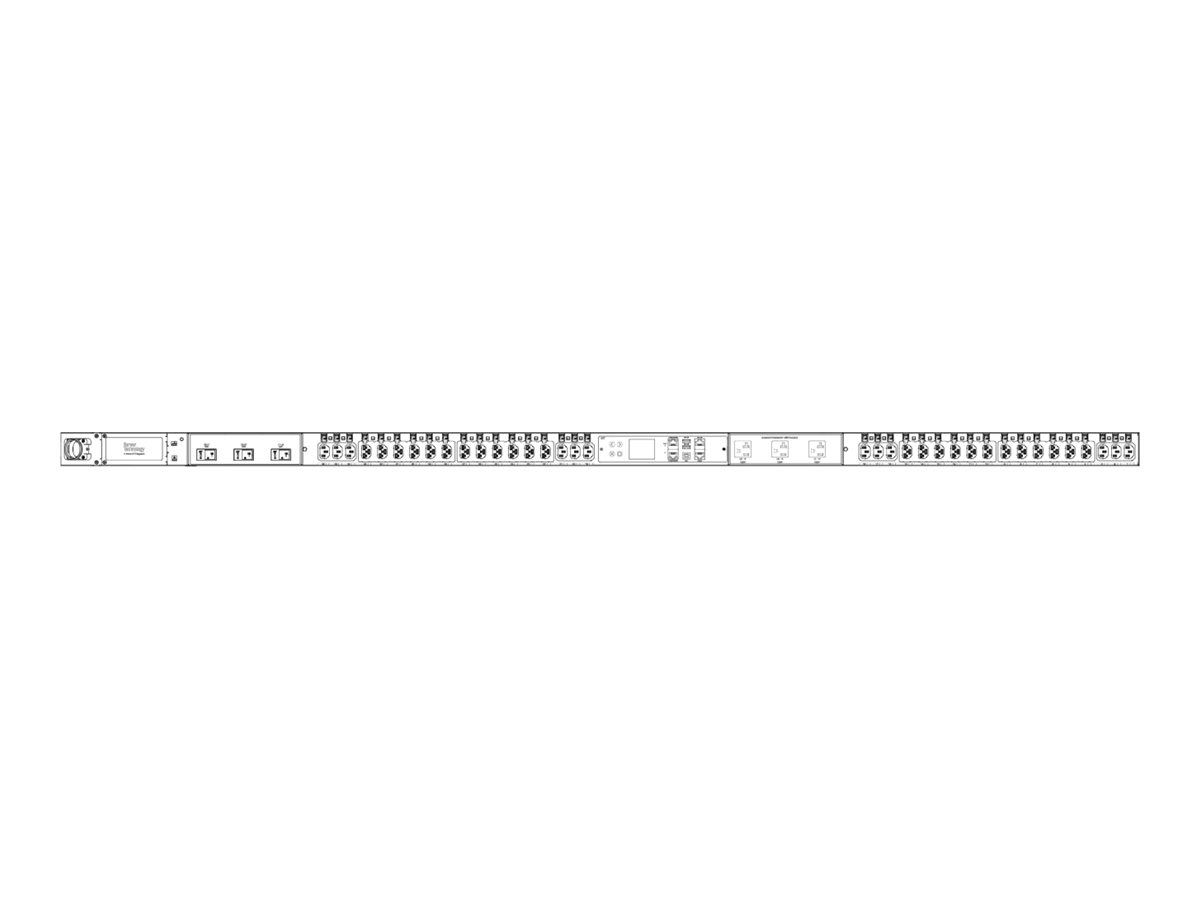

Server Technology PRO4X Switched POPS PDU C4G36RA-YCBE2FE3
MSRP$4,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Server Technology PRO4X Switched POPS PDU C4G36RA-YCBE2FE3
- Power distribution unit (rack-mountable)
- AC 208 V
- 8.6 kW
- Ethernet 10/100/1000, USB
- input: NEMA L21-30P
- output connectors: 39 (12 x IEC 60320 C13, 24 x IEC 60320 Cx, 3 x NEMA 5-20R)
- 3 m cord
- black paint, red label
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,200.00 |
| Mfr Part #: | C4G36RA-YCBE2FE3/30R1 |
| SHI Part #: | 48944785 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO4X Switched POPS PDU C4G36RA-YCBE2FE3 - Power distribution unit (rack-mountable) - AC 208 V - 8.6 kW - Ethernet 10/100/1000, USB - input: NEMA L21-30P - output connectors: 39 (12 x IEC 60320 C13, 24 x IEC 60320 Cx, 3 x NEMA 5-20R) - 3 m cord - black paint, red label |
| Manufacturer | Legrand |
| MSRP | $4,200.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 177.8 m |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 39 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 177.8 m |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black paint, red label |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | EN 62368-1, cTUVus, CSA C22.2 62368-1, EMC, FCC Part 15 Subpart B, ICES-003, CAN, POPs, AES |
| Features | High Density Outlet Technology (HDOT), LCD display, Branch Circuit Protection, environmental sensor ready, locking outlets, Per Input Power Sensing (PIPS), Ramlock Locking Outlets, Per Outlet Power Sensing (POPS), vertical orientation, email alerts support, current meter, voltage monitoring, active power meter, apparent power meter, power factor meter, energy meter, Branch Current Monitoring, Raritan Xerus Technology |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP, SFTP, SMTP, LDAP, CLI, SSH-2, SNMP 2c, SNMP 3, IPv4, IPv6, TACACS+, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power NEMA L21-30P |
| Input Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 120/208 V |
| Power Capacity | 8.6 kW |
| Power Output Connectors Details |
|
