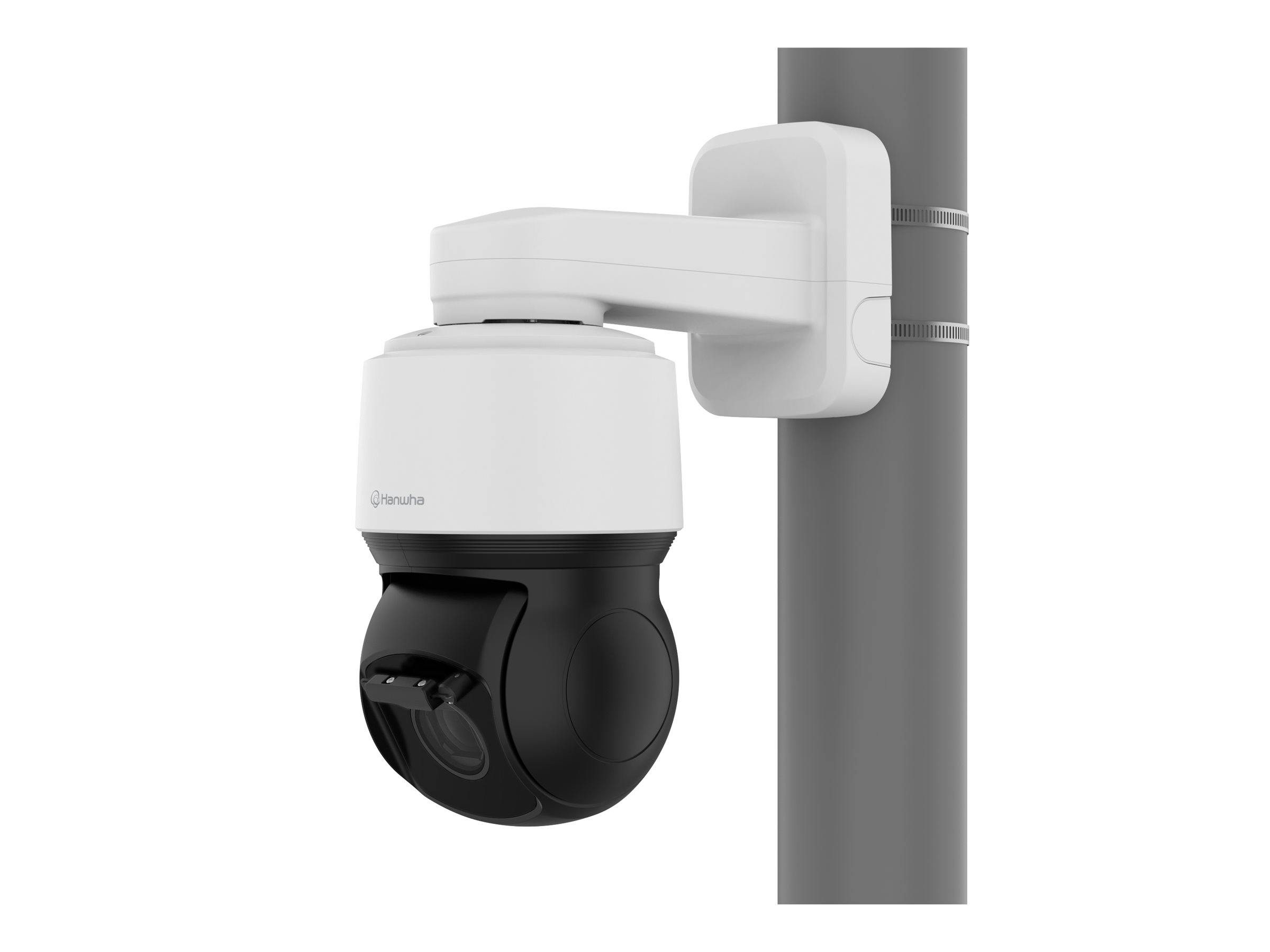

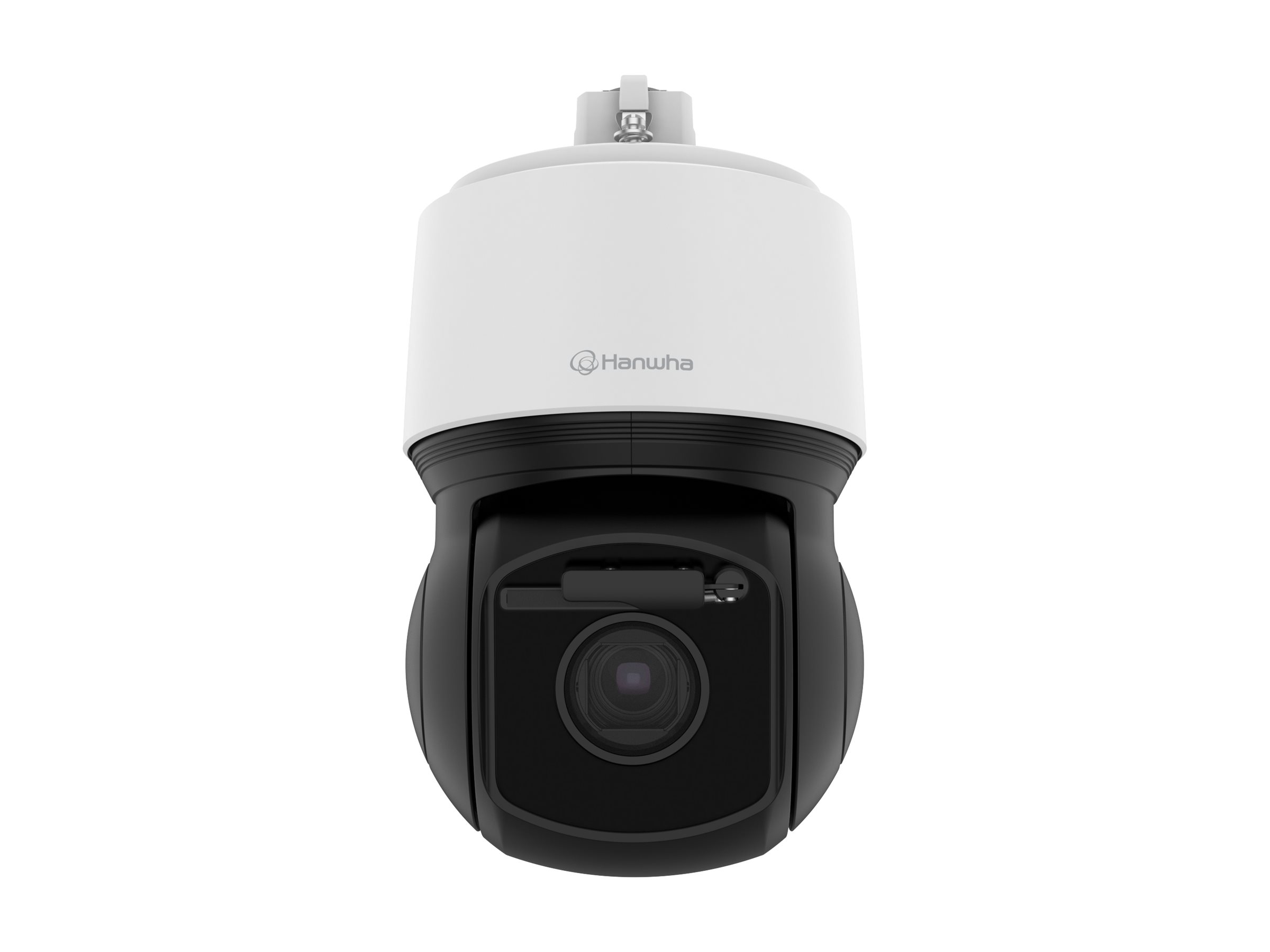

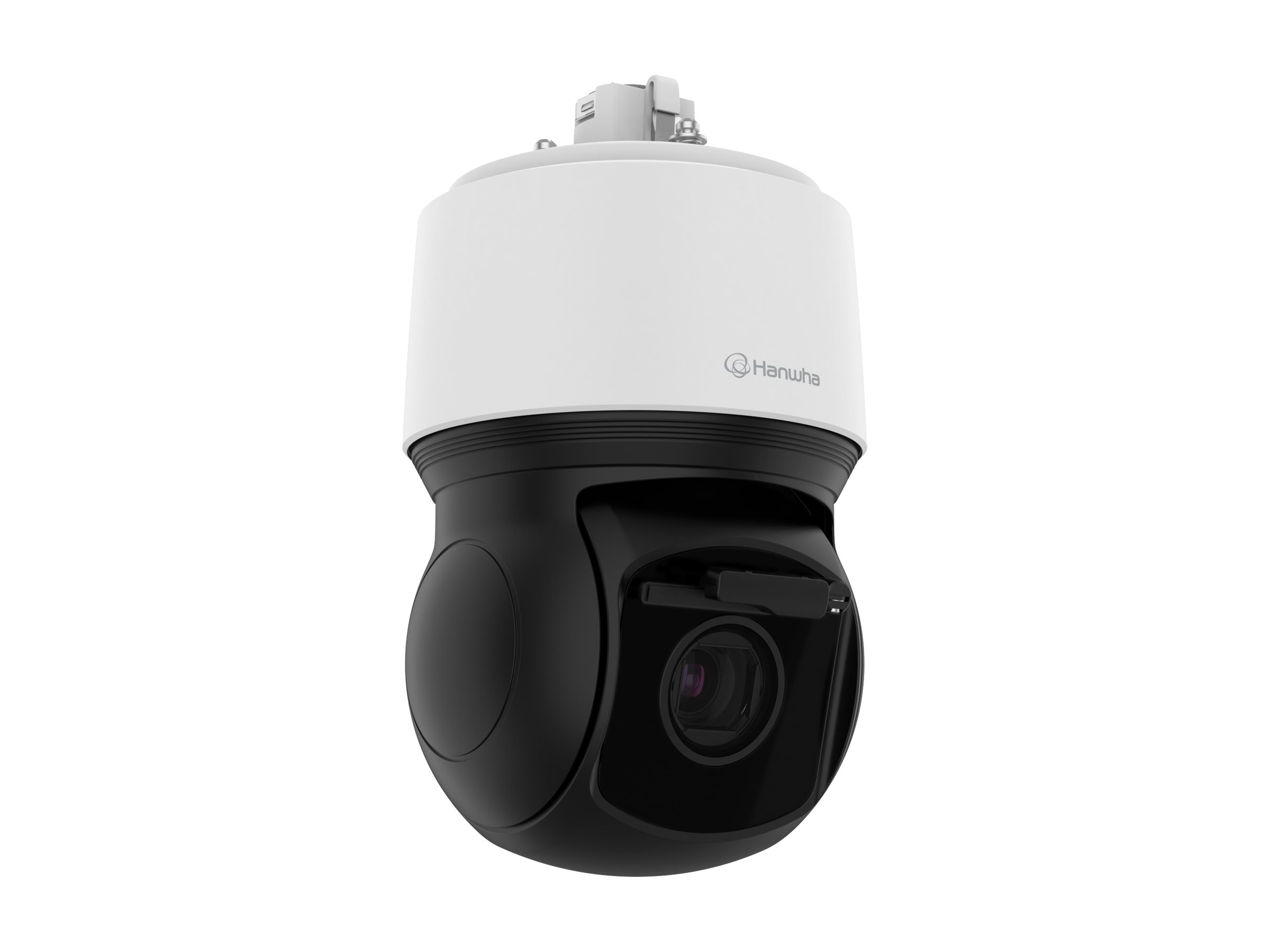

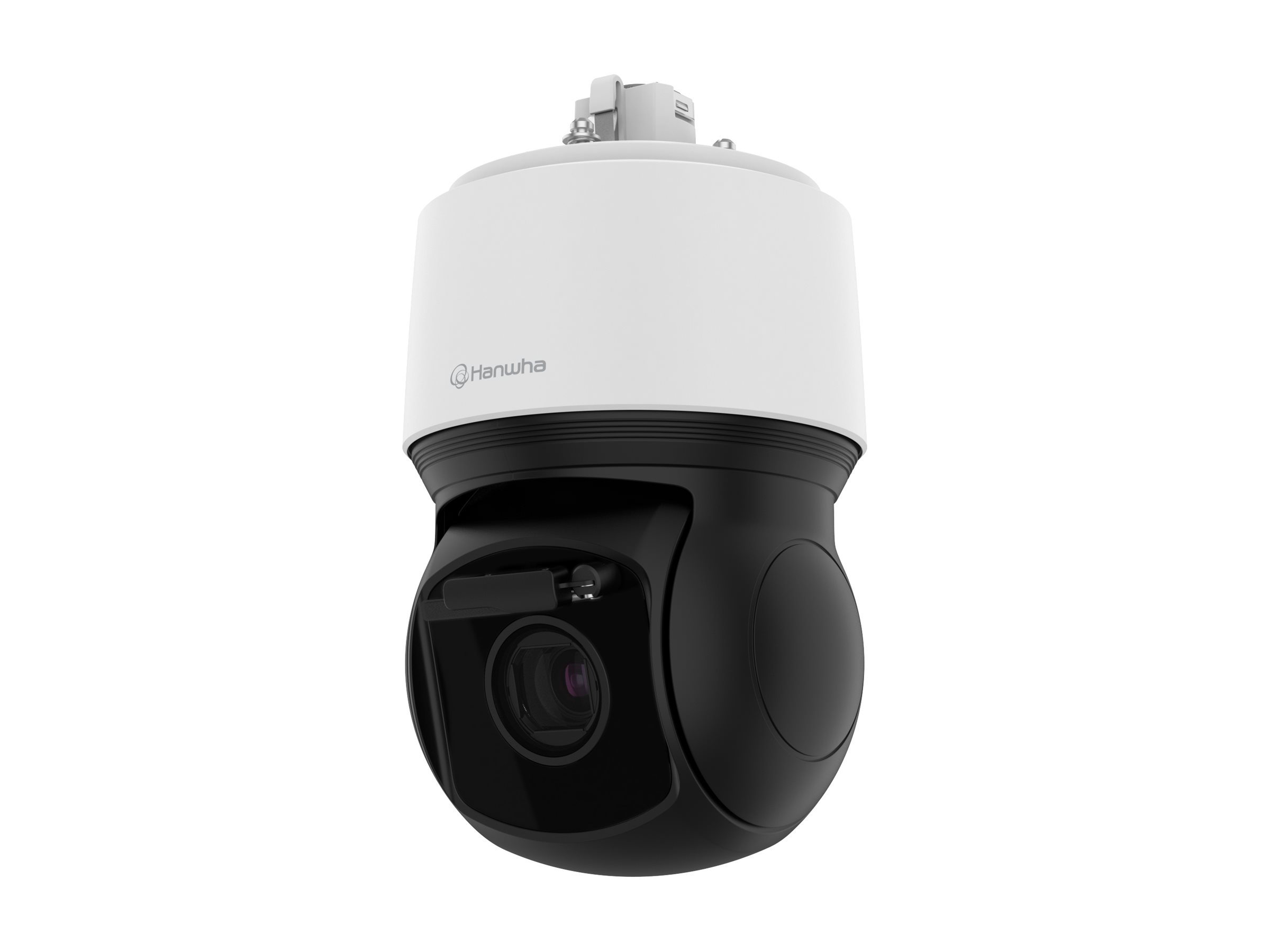

POWERED BY WN7 PTZ PLUS WITH AI, 6MP @ 30FPS RESOLUTION, 5MM 150MM (30X) LENS, B
MSRP$5,130.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
POWERED BY WN7 PTZ PLUS WITH AI, 6MP @ 30FPS RESOLUTION, 5MM 150MM (30X) LENS, B
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,130.00 |
| Mfr Part #: | XNP-C8303RW |
| SHI Part #: | 46429912 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | POWERED BY WN7 PTZ PLUS WITH AI, 6MP @ 30FPS RESOLUTION, 5MM 150MM (30X) LENS, B |
| Manufacturer | HANWHA VISION |
| MSRP | $5,130.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.49 cm |
| Dimensions & Weight / Height | 31.88 cm |
| Dimensions & Weight / Weight | 5.6 kg |
| Dimensions & Weight / Width | 18.49 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3328 x 1872, 3072 x 1728, 2592 x 1944, 2688 x 1520, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme WDR, WiseNR II, Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), built-in gyroscope, Defog, motion detection, Privacy Mask Function, Gain Control, white balance, image flip, image mirror, Person Detection, face detection, Vehicle Detection, license plate detection, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, tamper-detection, fog detection, shock detection, appearing / disappearing detection, Handover, notification picture to FTP, notification picture to E-mail, built-in wiper, Target lock tracking, auto tracking, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, brute force delay protection, digest authentication, secure boot, signed firmware |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 200 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3328 x 1872 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2 Level 2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 18.49 cm |
| Device Type | Network surveillance camera |
| Form Factor | Turret |
| Height | 31.88 cm |
| Weight | 5.6 kg |
| Width | 18.49 cm |
| Image Sensor | |
| Type | 6 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT |
| Lens Construction | |
| Focal Length | 5 mm - 150 mm |
| Focus Adjustment | One-shot contrast |
| Horizontal Field of View (degree) | 2.19 - 57.42 |
| Lens Iris | F/1.6-4.56 auto iris (DC) |
| Min Focus Distance | 3 m |
| Optical Zoom | 30 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.25 - 33.54 |
| Miscellaneous | |
| Color | White, black, RAL 9003, RAL 9005 |
| Compliant Standards | IP66, IK10, NEMA Type 4X, NEMA TS-2 (2.2.8-2.2.9), IEEE 802.1x, IEEE 802.3bt, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, CISPR-32 Class A, RCM, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NDAA |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 500 |
| Power | |
| Power Device | 26 Watt |
| Power Requirements | PoE ++ |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 350 |
