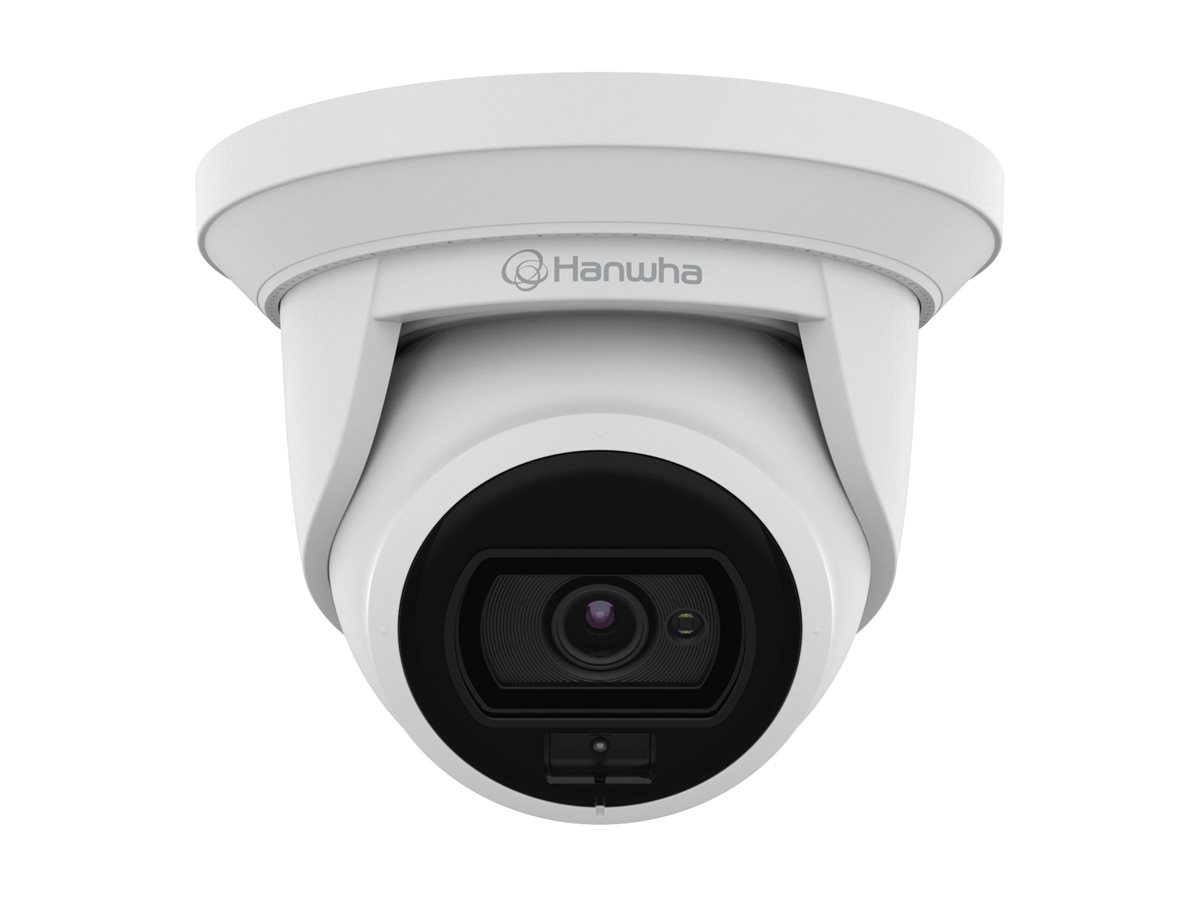

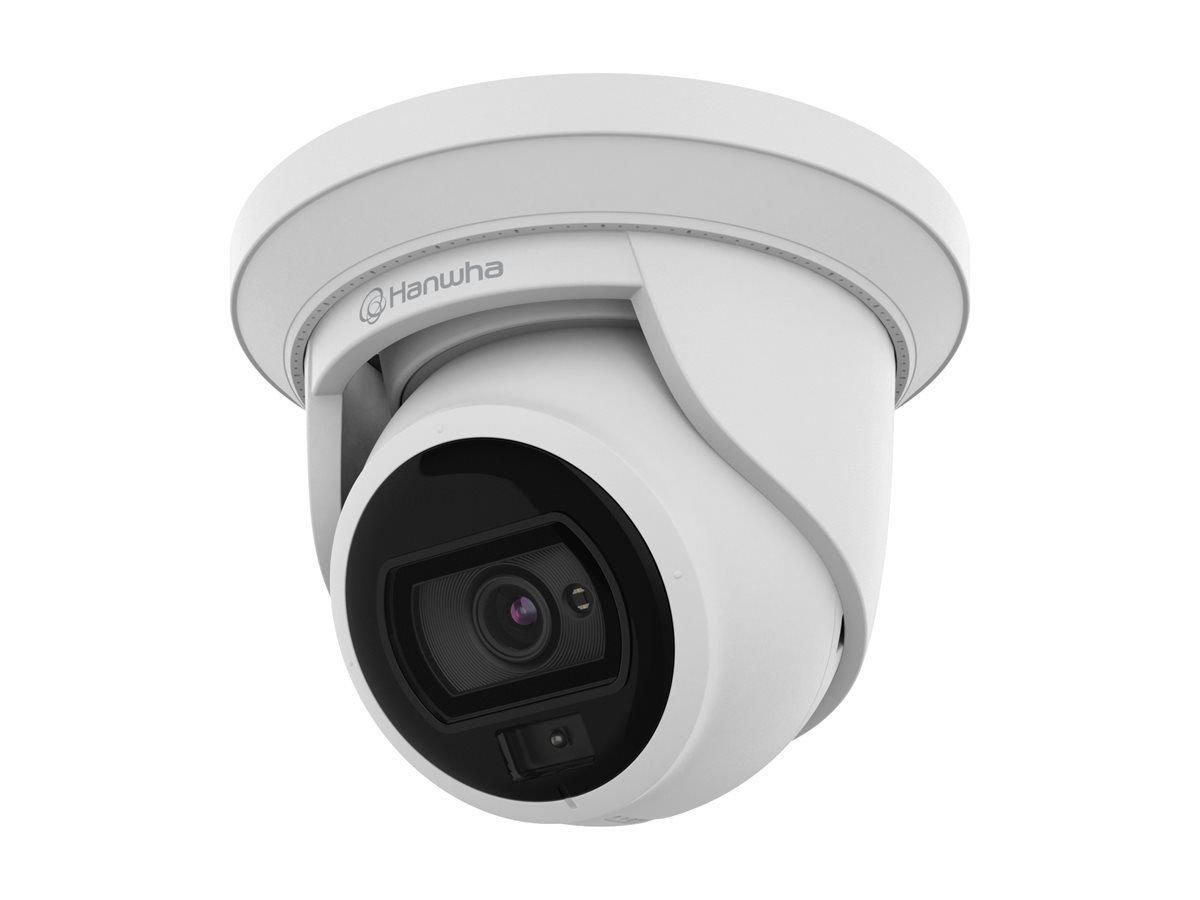

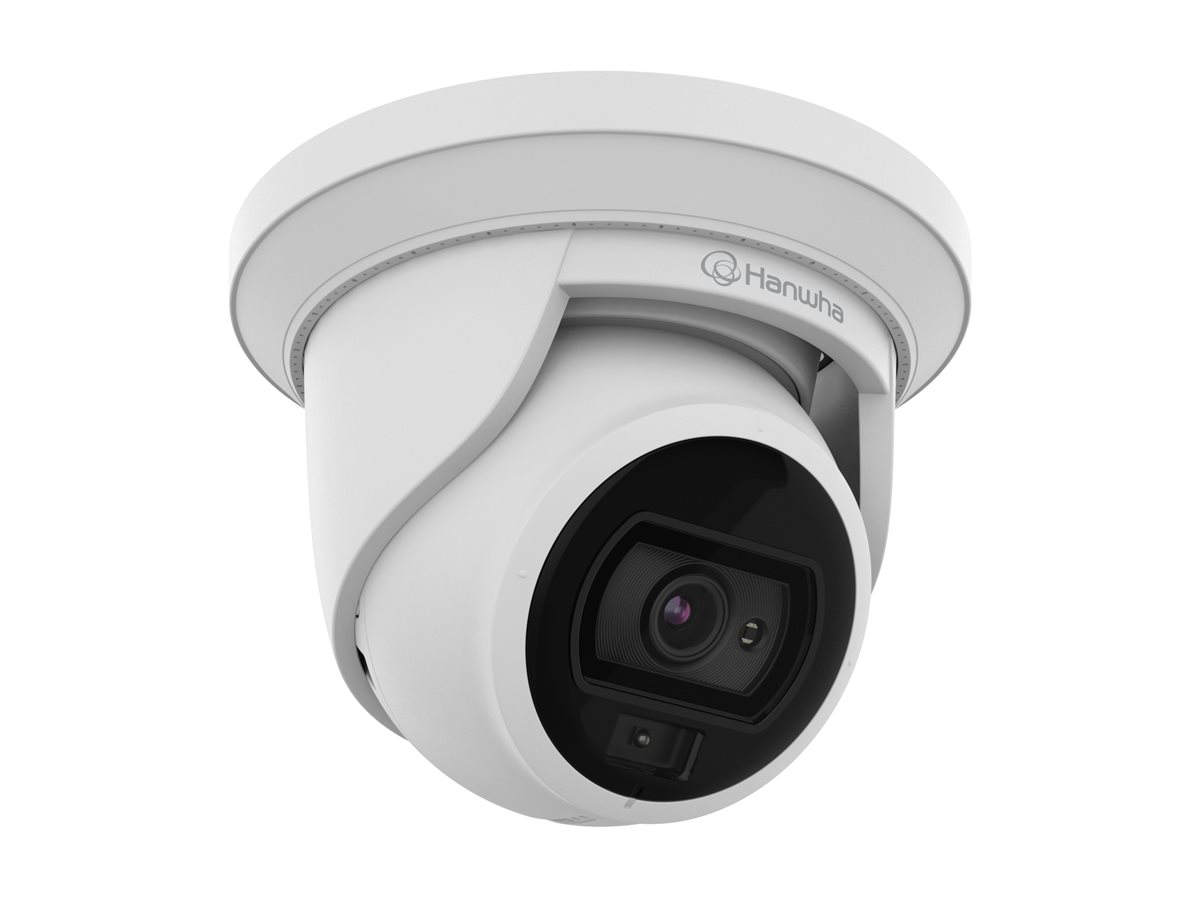

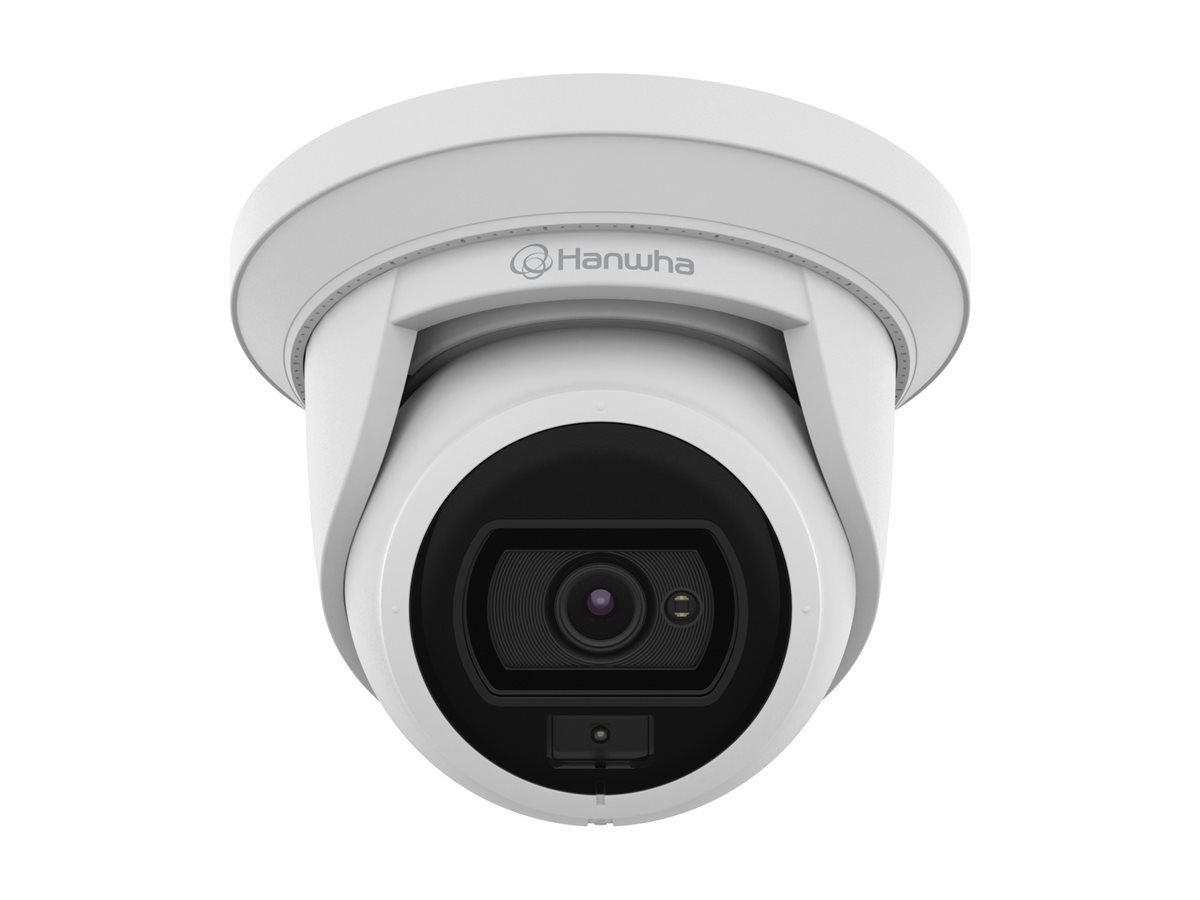

WISENET A SERIES WHITE LIGHT TURRET CAMERA, 4MP @ 30 FPS, 3MM FIXED FOCAL LENS,
MSRP$310.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
WISENET A SERIES WHITE LIGHT TURRET CAMERA, 4MP @ 30 FPS, 3MM FIXED FOCAL LENS,
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $310.00 |
| Mfr Part #: | ANE-L7012L |
| SHI Part #: | 46730206 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | WISENET A SERIES WHITE LIGHT TURRET CAMERA, 4MP @ 30 FPS, 3MM FIXED FOCAL LENS, |
| Manufacturer | HANWHA VISION |
| MSRP | $310.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.5 cm |
| Dimensions & Weight / Height | 8.74 cm |
| Dimensions & Weight / Width | 12.5 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), motion detection, Privacy Mask Function, Gain Control, white balance, Lens Distortion Compensation (LDC), anti-flicker, image flip, image mirror, Hallway View, Defocus Detection, Motion Detection Technology, tamper-detection, entrance / exit detection, Virtual Line detection, Handover, notification picture to E-mail, notification picture to FTP, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, WiseNet 2, firmware encryption, digest authentication, brute force delay protection, auto ICR |
| Flash Memory | 256 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination | 0.05 lux - color - F1.2 - shutter 1/30 sec |
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - pan / tilt |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 12.5 cm |
| Device Type | Network surveillance camera |
| Height | 8.74 cm |
| Width | 12.5 cm |
| Image Sensor | |
| Type | 4 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, PIM-SM, LLDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 113 |
| Focal Length | 3 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 97 |
| Lens Iris | F/1.2 |
| Min Focus Distance | 1.1 m |
| Type | Fixed focal |
| Vertical Field of View (degree) | 53 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IP66, IP67, IK10, IEC/EN 63000, IEC/EN 62471, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 7.6 Watt |
| Power Requirements | PoE Plus Class 3 |
| Tilting | |
| Range (degree) | -35 to +70 |
